B1D67

B1D67-00-ADJUSTABLE PEDAL CONTROL CIRCUIT PERFORMANCE





For a complete wiring diagram, refer to the Wiring Information.

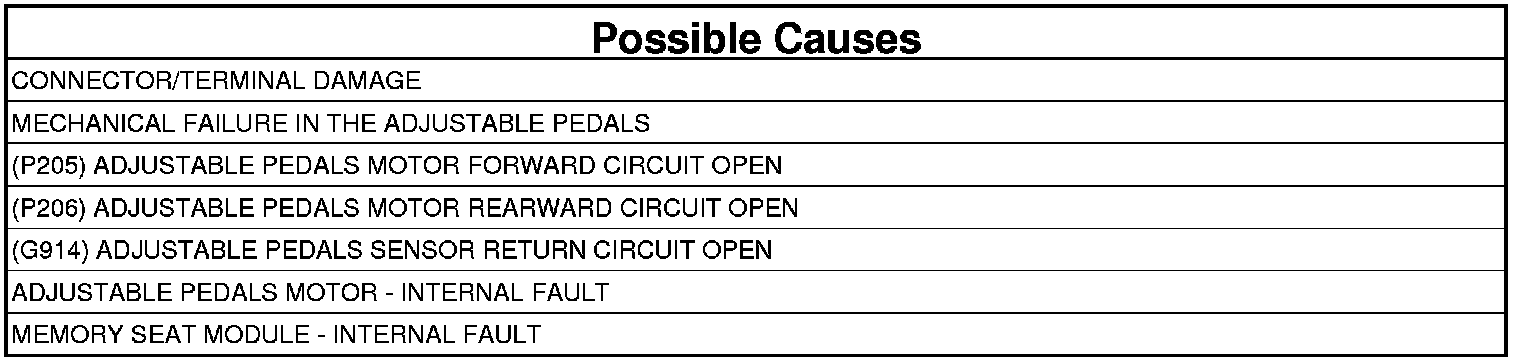

- When Monitored:
The Adjustable Pedals Motor is in active operation.

- Set Condition:
The Memory Seat Module detects that the Adjustable Pedals Motor has been activated for two seconds, but has not spun.





1. CHECK FOR DTC B1D67-ADJUSTABLE PEDAL CONTROL CIRCUIT PERFORMANCE

NOTE: This DTC must be active for the results of this test to be valid.

1. Turn the ignition on.
2. With the scan tool, record and erase DTCs.
3. Cycle the ignition switch from off to on.
4. Cycle and hold the Adjustable Pedals Switch forward, rearward, and forward at two second intervals.
5. With the scan tool, read DTCs.

Does the scan tool display: B1D67-00-ADJUSTABLE PEDAL CONTROL CIRCUIT PERFORMANCE?

Yes

- Go To 2

No

- Perform the APS INTERMITTENT CONDITION TEST. Testing and Inspection.

2. CHECK CONNECTOR/TERMINAL FOR DAMAGE

NOTE: Check all terminals for broken, bent, pushed out, or corroded terminals.

1. Turn the ignition off to the lock position.
2. Inspect the Memory Seat Module harness connector, Adjustable Pedals Motor, and Adjustable Pedals Motor harness connector.

Is the Adjustable Pedals Motor or any of the connectors/terminals damaged?

Yes

- Repair as necessary.
- Perform the APS VERIFICATION TEST. APS Verification Test.

No

- Go To 3

3. CHECK ADJUSTABLE PEDALS ASSEMBLY FOR MECHANICAL DAMAGE
1. Inspect the Adjustable Pedals Assembly for any physical damage.

NOTE: Check for any conditions that would cause the motor to stall or be stuck.

Is the Adjustable Pedals Assembly damaged?

Yes

- Replace the Adjustable Pedals Assembly.
- Perform the APS VERIFICATION TEST. APS Verification Test.

No

- Go To 4

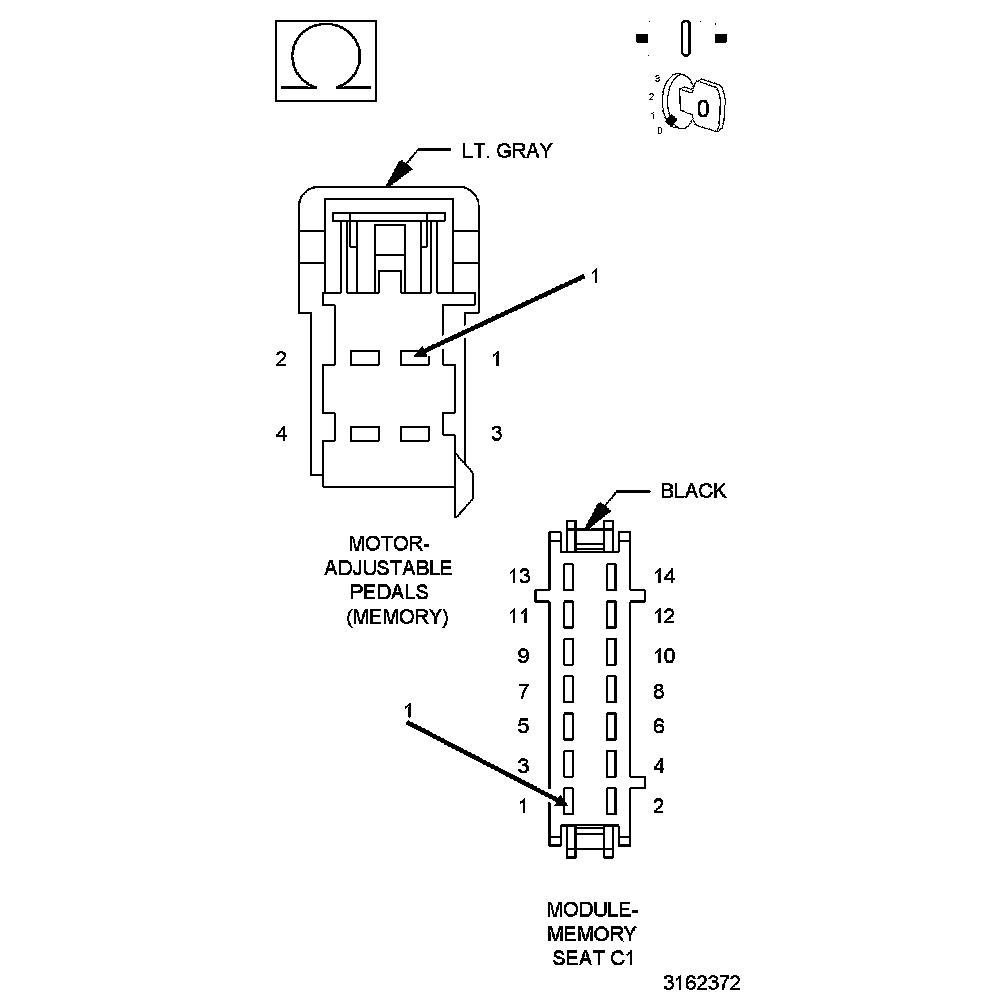

4. CHECK (P205) ADJUSTABLE PEDALS MOTOR FORWARD CIRCUIT FOR AN OPEN




1. Disconnect the Memory Seat Module C1 harness connector.
2. Disconnect the Adjustable Pedals Motor harness connector.
3. Measure the resistance of the (P205) Adjustable Pedals Motor Forward circuit between the Memory Seat Module C1 harness connector and the Adjustable Pedals Motor harness connector.

Is the resistance below 5.0 Ohms?

Yes

- Go To 5

No

- Repair the (P205) Adjustable Pedals Motor Forward circuit for an open.
- Perform the APS VERIFICATION TEST. APS Verification Test.

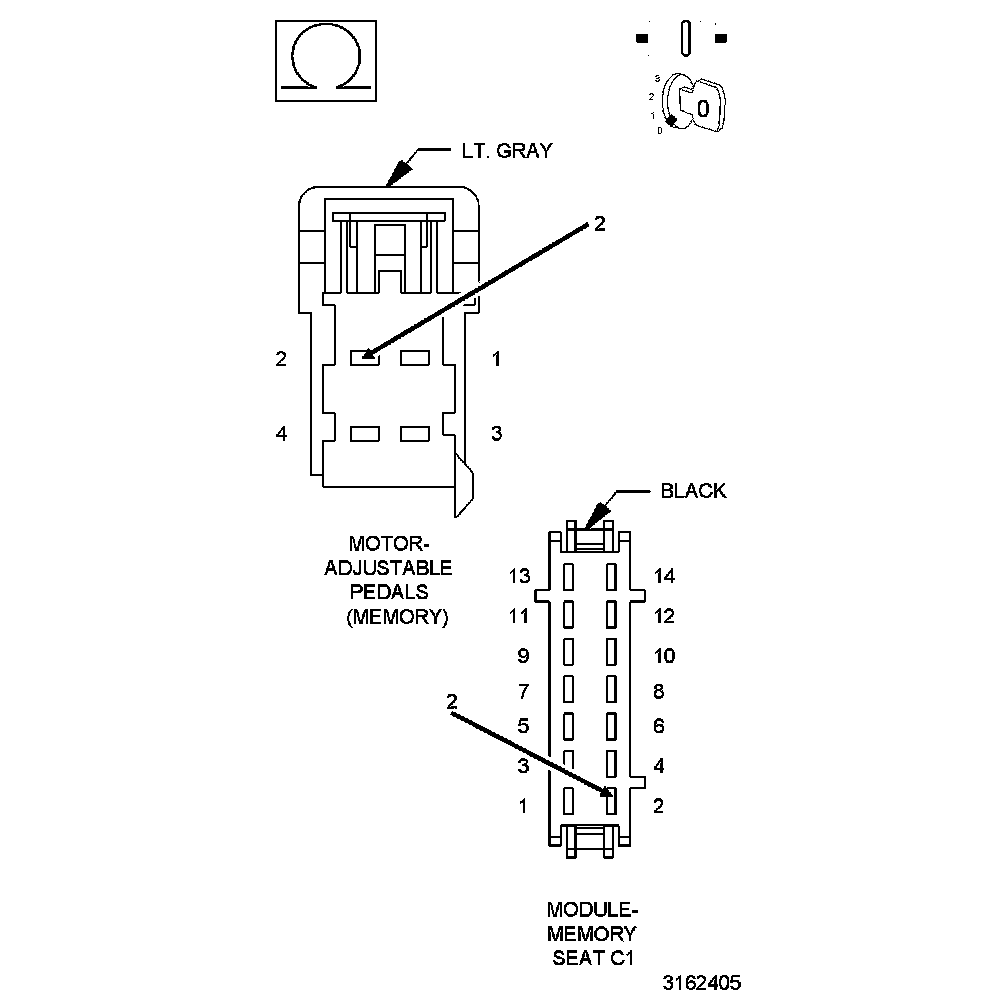

5. CHECK (P206) ADJUSTABLE PEDALS MOTOR REARWARD CIRCUIT FOR AN OPEN




1. Measure the resistance of the (P206) Adjustable Pedals Motor Rearward circuit between the Memory Seat Module C1 harness connector and the Adjustable Pedals Motor harness connector.

Is the resistance below 5.0 Ohms?

Yes

- Go To 6

No

- Repair the (P206) Adjustable Pedals Motor Rearward circuit for an open.
- Perform the APS VERIFICATION TEST. APS Verification Test.

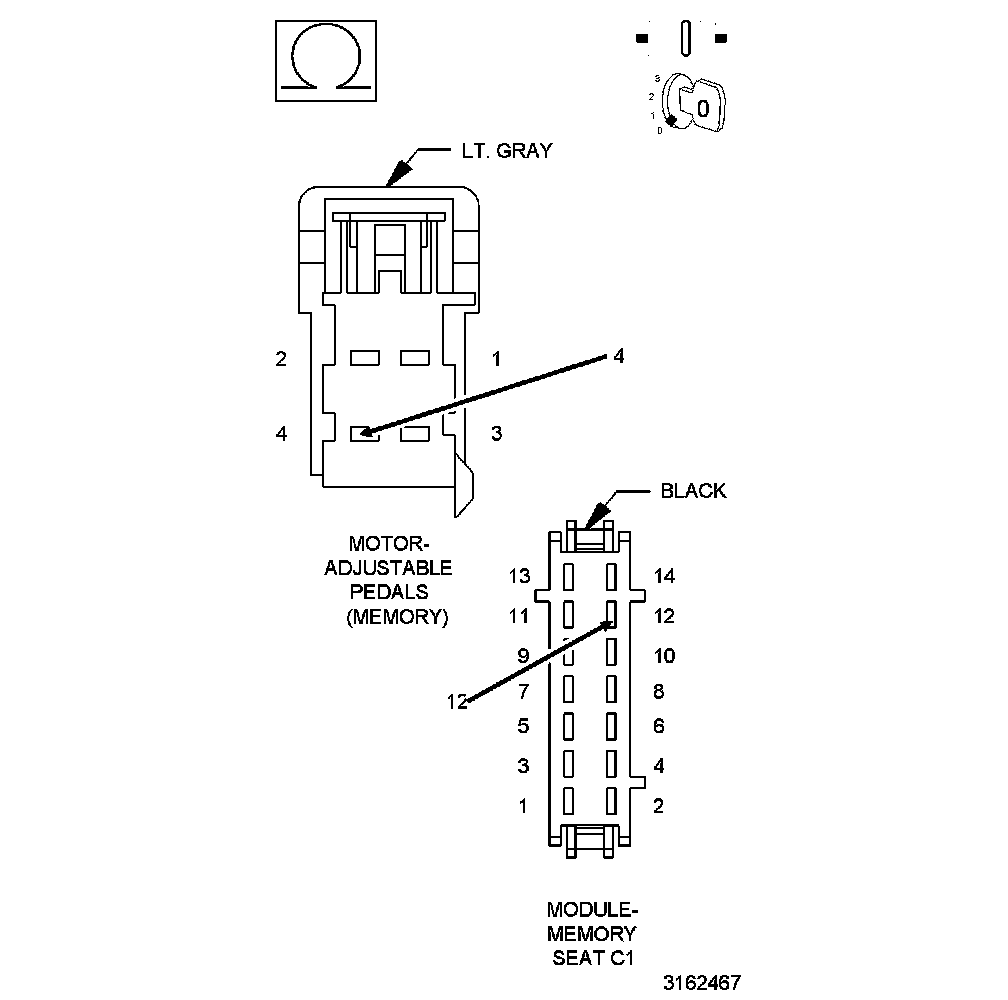

6. CHECK (G914) ADJUSTABLE PEDALS SENSOR RETURN CIRCUIT FOR AN OPEN




1. Disconnect the Adjustable Pedals Sensor harness connector.
2. Measure the resistance of the (G914) Adjustable Pedals Sensor Return circuit between the Memory Seat Module C1 harness connector and the Adjustable Pedals Sensor harness connector.

Is the resistance below 5.0 Ohms?

Yes

- Go To 7

No

- Repair the (G914) Adjustable Pedals Sensor Return circuit for an open.
- Perform the APS VERIFICATION TEST. APS Verification Test.

7. CHECK ADJUSTABLE PEDALS MOTOR
1. Reconnect the Adjustable Pedals Sensor harness connector.
2. Measure the resistance between the (P205) Adjustable Pedals Motor Forward and (P206) Adjustable Pedals Motor Rearward terminals at the Adjustable Pedals Motor component connector.

Is the resistance below 100.0 Ohms?

Yes

- Replace and reprogram the Memory Seat Module.
- Perform the APS VERIFICATION TEST. APS Verification Test.

No

- Replace the Adjustable Pedals Motor.
- Perform the APS VERIFICATION TEST. APS Verification Test.
