B1D5C

B1D5C-23-ADJUSTABLE PEDAL SWITCH CIRCUIT STUCK FORWARD - SIGNAL STUCK LOW





For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
The Adjustable Pedals Switch is in active operation.

- Set Condition:
The Memory Seat Module detects the Adjustable Pedals Switch has been activated for a time period of more than 50 seconds.





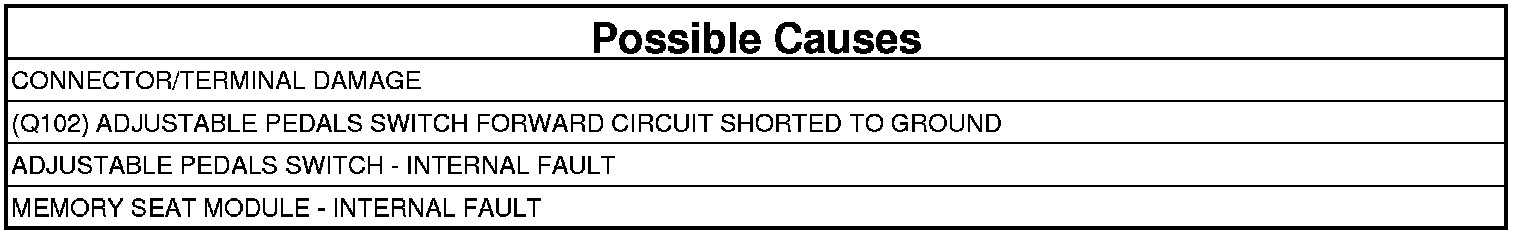

1. CHECK FOR DTC B1D5C-ADJUSTABLE PEDAL SWITCH CIRCUIT STUCK FORWARD

NOTE: This DTC must be active for the results of this test to be valid.

1. Ignition on, engine not running.
2. With the scan tool, record and erase DTCs.
3. Cycle the ignition switch from off to on.
4. Cycle the Adjustable Pedals Switch forward and rearward.
5. With the scan tool, read DTCs.

Does the scan tool display: B1D5C-23-ADJUSTABLE PEDAL SWITCH CIRCUIT STUCK FORWARD - SIGNAL STUCK LOW?

Yes

- Go To 2

No

- Perform the APS INTERMITTENT CONDITION TEST. Testing and Inspection.

2. CHECK CONNECTOR/TERMINAL FOR DAMAGE

NOTE: Check all terminals for broken, bent, pushed out, or corroded terminals.

1. Turn the ignition off to the lock position.
2. Inspect the Memory Seat Module harness connector, Adjustable Pedals Switch, and Adjustable Pedals Switch harness connector.

Is the Adjustable Pedals Switch or any of the connectors/terminals damaged?

Yes

- Repair as necessary.
- Perform the APS VERIFICATION TEST. APS Verification Test.

No

- Go To 3

3. CHECK (Q102) ADJUSTABLE PEDALS SWITCH FORWARD CIRCUIT FOR A SHORT TO GROUND




1. Disconnect the Memory Seat Module C5 harness connector.
2. Disconnect the Adjustable Pedals Switch harness connector.
3. Using a 12-volt test light connected to 12-volts, probe the (Q102) Adjustable Pedals Switch Forward circuit at the Memory Seat Module C5 harness connector.

Does the test light illuminate brightly?

Yes

- Repair the (Q102) Adjustable Pedals Switch Forward circuit for a short to ground.
- Perform the APS VERIFICATION TEST. APS Verification Test.

No

- Go To 4

4. CHECK ADJUSTABLE PEDALS SWITCH SHORTED
1. Measure the resistance between the (Q103) Adjustable Pedals Switch Rearward and (Q102) Adjustable Pedals Switch Forward terminals at the Adjustable Pedals Switch component connector.

Is the resistance below 5.0 Ohms?

Yes

- Replace the Adjustable Pedals Switch.
- Perform the APS VERIFICATION TEST. APS Verification Test.

No

- Replace and reprogram the Memory Seat Module.
- Perform the APS VERIFICATION TEST. APS Verification Test.
