Headlamp Washer Hose - Installation - Export

INSTALLATION





The headlamp washer hose is a special high pressure hose with specific fittings, and must be replaced as a unit.

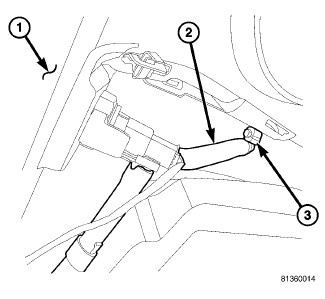

1. Install the new high pressure headlamp washer hose (2) assembly. Push fitting (3) on until a snap is heard.
2. Install the fascia Front Bumper Fascia - Installation.
3. Connect the battery negative cable.
