Front Bumper Reinforcement - Installation

INSTALLATION





1. Place bumper reinforcement up to vehicle and install fasteners. Tighten to 27 Nm (239 inch lbs.).





2. Install coolant line push pins to bumper.
3. Install ambient temperature sensor Ambient Temperature Sensor - Installation.
4. Install horns and connect electrical connectors Horn - Installation.

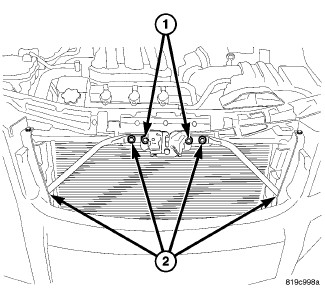

5. Install hood latch fasteners (1).
6. Install braces and fasteners (2).
7. Install fascia Front Bumper Fascia - Installation.
