Deck Bar

DECKBAR










NOTE: The hydraulic system uses ARAL VITAMOL ZH-M fluid. When replacing components or topping off system due to leak, make sure to use only approved fluid. When adding fluid Water Leak Test .

1. Open decklid conventionally,
2. Disconnect and isolate the battery negative remote cable.
3. Remove the rear and side trunk trim panels. Trunk Trim Panel - Removal.
4. Remove the spare tire cover/floor of the trunk.
5. Release the pump pressure valve (3) by turning it two rotations counter clockwise (1).

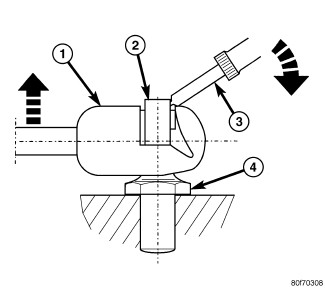

6. Using a small flat bladed tool or equivalent, release the retaining clips while pulling the ball socket away from the ball stud.

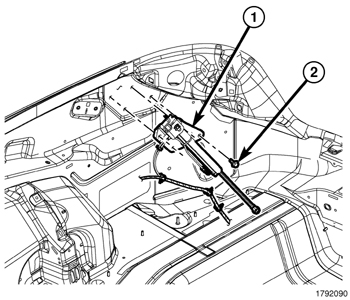

7. Remove the cylinder mounting plate fasteners (2) and remove the cylinder (1) from the vehicle.





8. At the hydraulic cylinder, slide the retaining clamp off and pull out line.

CAUTION: Be careful to catch all fluid in a catch container.

9. Remove the hall effect on the left cylinder. Power Top Switch - Removal.
