Installation

INSTALLATION

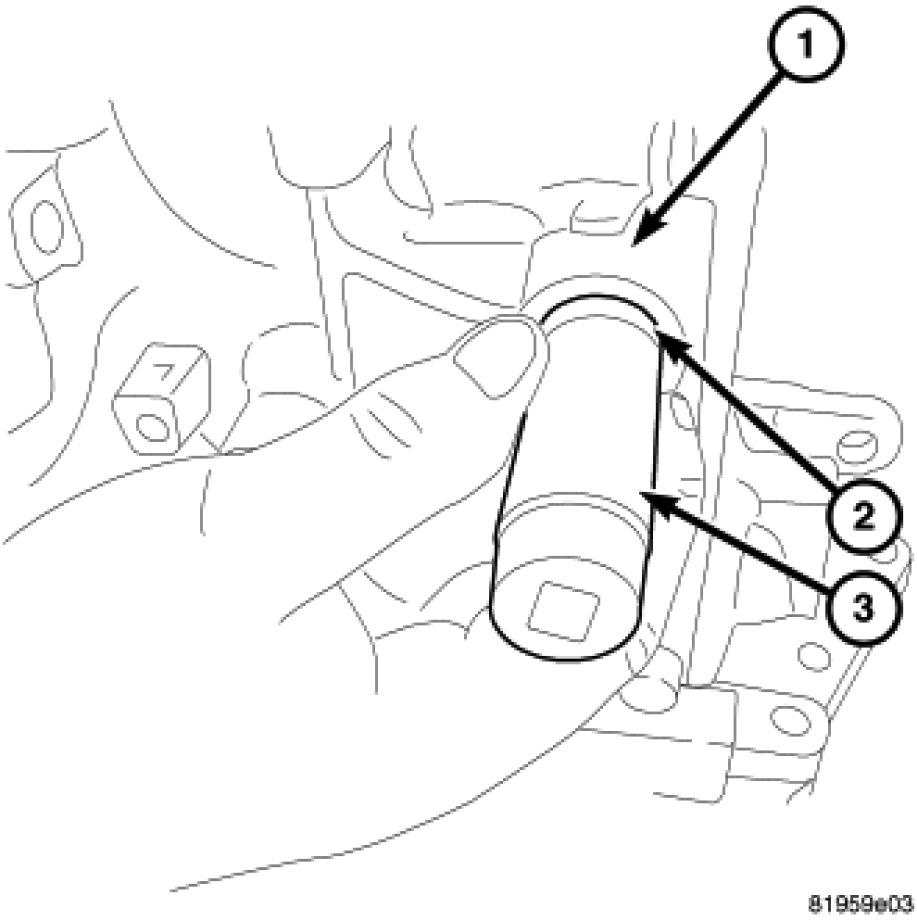

1. Install a new manual lever oil seal (2) using socket (3).




2. Install the manual lever in the case up to the point of the TRS.

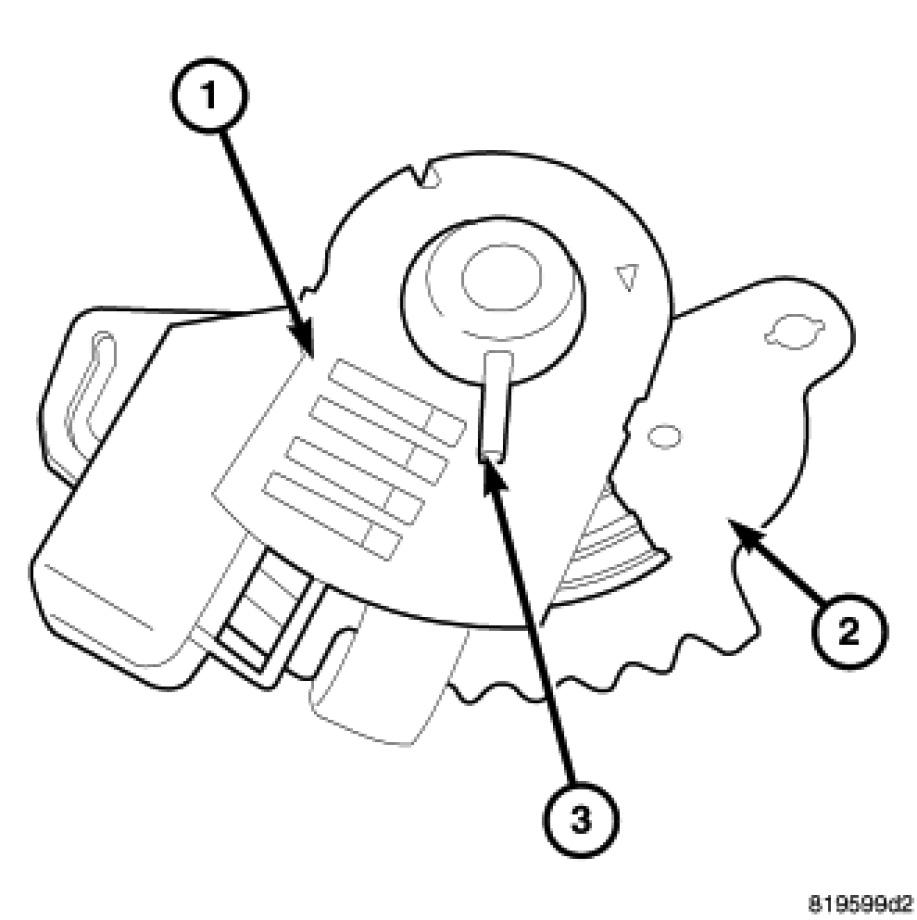

3. Install the TRS/rooser comb onto the manual lever and fully install the manual lever into the case.

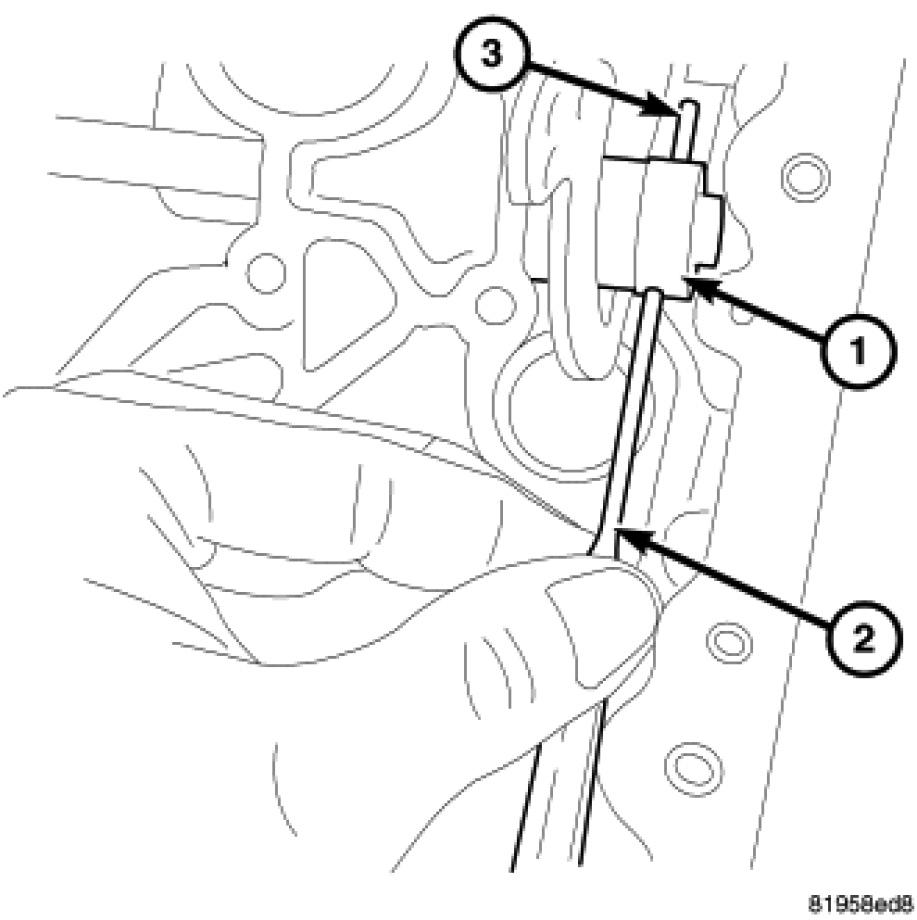

4. Install the roll pin (3) to the TRS/rooster comb (1) using a pin punch (2).




5. Install the set screw (1) at manual lever (2) and tighten to 1 Nm (10 in. lbs.).

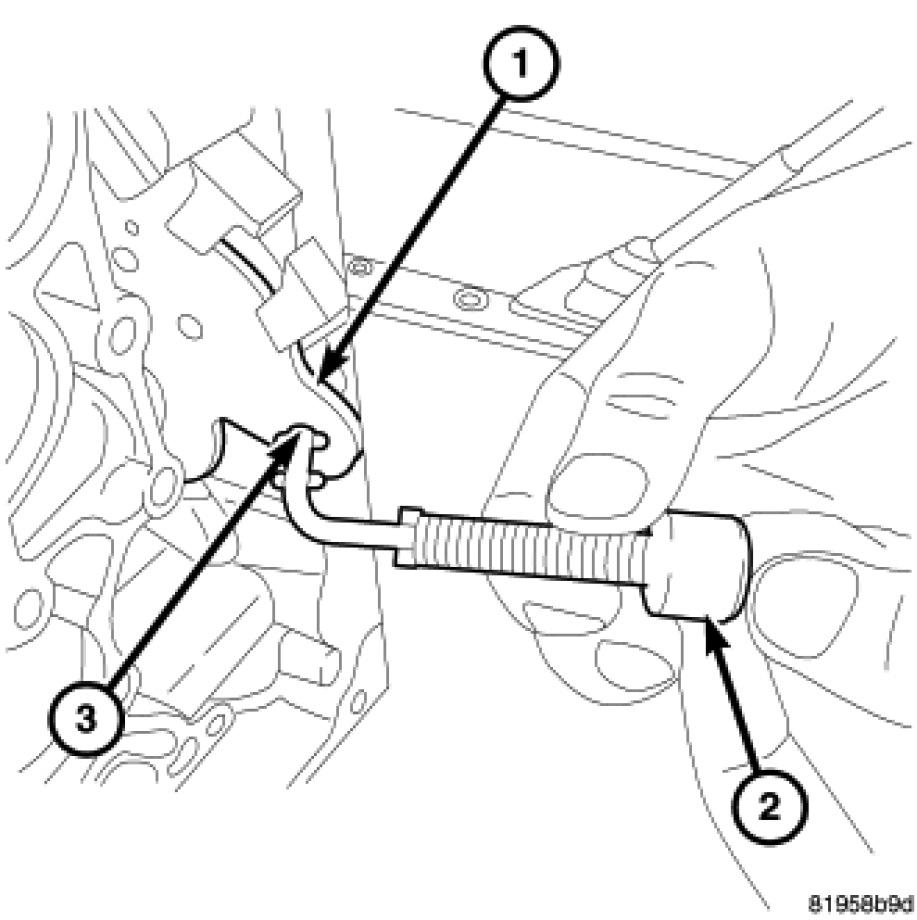

6. Install the park rod assembly (2) to the TRS/rooster comb (1) and place the park rod assembly into the guide assembly.

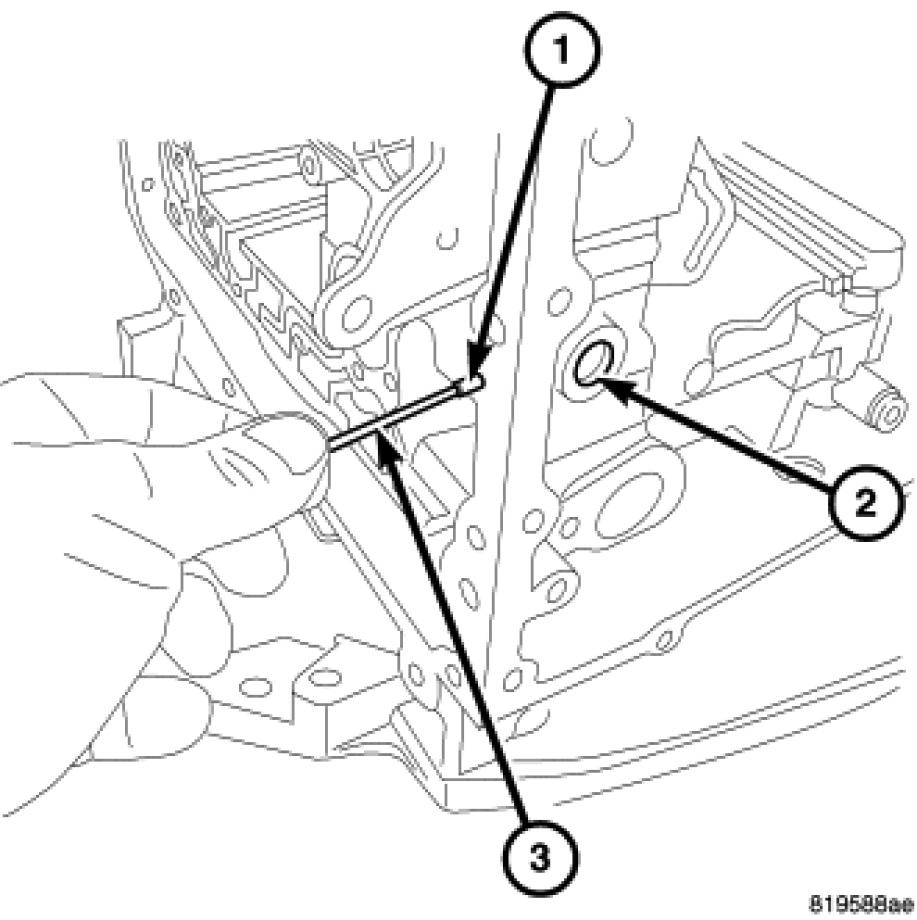

7. Place the park pawl pin into the park pawl tube.
8. Install the electrical connector.
9. Install the valve body Installation.
