Horn Switch: Service and Repair







INSTALLATION

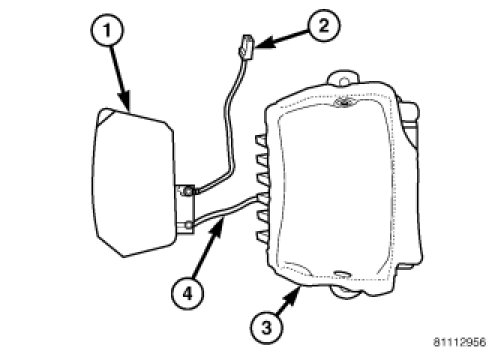

1. Install the horn switch to the backer plate.
2. Connect the black wire to the airbag.
3. Install the airbag trim cover Driver Airbag - Installation.
4. Install the driver's airbag Driver Airbag - Installation.
5. Connect the battery negative cable.
