Upper Intake Manifold

INSTALLATION - UPPER INTAKE MANIFOLD





1. Clean and inspect gasket sealing surfaces.
2. Position new gasket.
3. Install the throttle body on the upper intake (if required)Throttle Body - Installation.

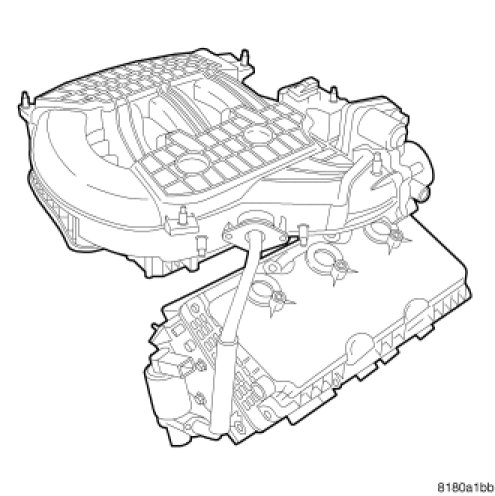

4. Install upper intake manifold and hand start all attaching bolts.
5. Tighten bolts gradually starting in the center working outward until a torque of 12 Nm (105 in. lbs.) is obtained.
6. Install the front and rear intake manifold support brackets.
7. Install the oil level indicator and oil fill tube to intake manifold bolts.
8. Install the EGR tube EGR Valve - Installation.




9. Connect vacuum lines to the following:
- Positive Crankcase Ventilation (PCV) Valve
- EVAP Purge Solenoid
- Power Brake Booster

10. Install alternator support bracket.
11. Connect electrical connectors to the following:
- Manifold Tuning Valve (MTV)
- Exhaust Gas Recirculation (EGR)
- Throttle Position Sensor (TPS)
- Idle Air Control (IAC)
- Manifold Absolute Pressure (MAP)

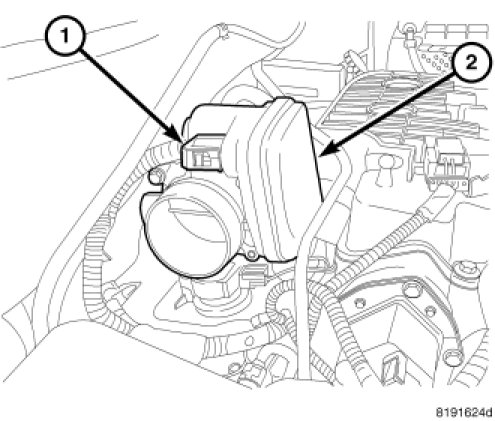

12. Install the ETC connector to the throttle body.
13. Install air cleaner housing and inlet hose.
14. Install the engine cover.
15. Connect negative battery cable.
