Power Liftgate Drive Unit - Removal

REMOVAL





1. Open the liftgate.
2. Disconnect and isolate the battery negative cable.
3. Remove the link rod assembly from the liftgate attachment point, Removal.
4. Remove the left rear D-pillar trim panel from the vehicle, Removal.
5. Remove the left quarter trim panel, Console Shifter Bezel - Removal.

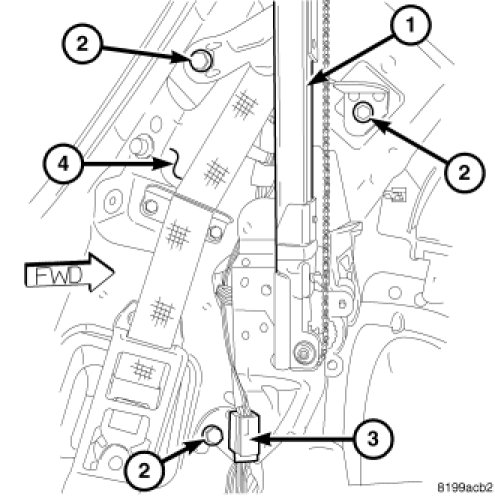

6. Disconnect the wire harness connector (3) from the power liftgate drive unit assembly (1).
7. Remove the drive unit assembly retaining bolts (2).
8. Unhook the drive unit assembly (1) from the D-pillar (4) and remove the unit from the vehicle.
