Front Bumper Reinforcement - Removal

REMOVAL





1. Remove front bumper fascia. Front Fascia - Removal.
2. Support front bumper reinforcement on a suitable lifting device.

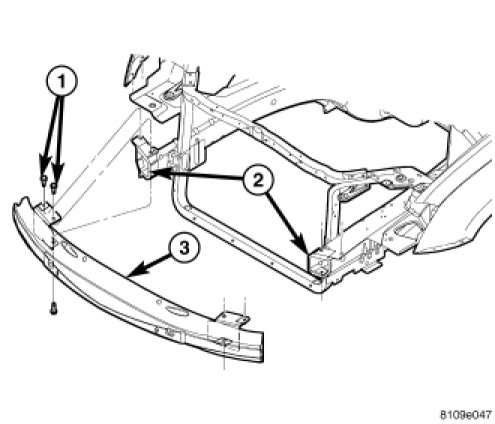

3. Remove the three bolts (1) attaching front bumper reinforcement to frame rail.
4. Remove front bumper reinforcement from vehicle.
