Wiper Motor - Installation

INSTALLATION

Before installing the wiper motor, synchronize the wiper motor shaft into the park position. Procedures.

1. Insert the wiper motor (3) into the wiper motor module (2).
2. Install the three wiper motor retaining bolts (1). Tighten bolts to 11 Nm (8 ft. lbs.).

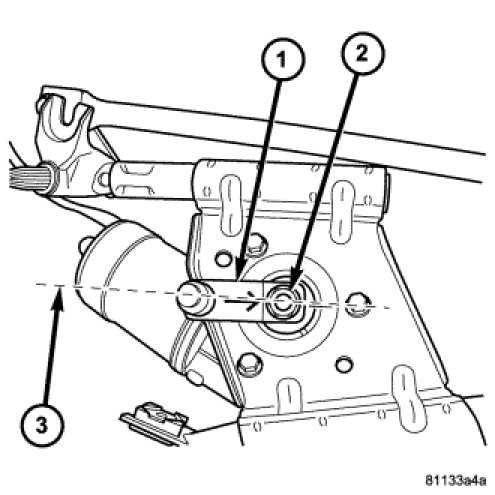

3. Align the wiper motor crank arm (1) onto the wiper motor shaft in the park position (3) and press into place.
4. Install the wiper motor crank arm retaining nut (2). Tighten retaining nut to 26 Nm (19 ft. lbs.).
5. Install the wiper motor module into the vehicle. Wiper Module - Installation.
6. Connect the negative battery cable.
