Seat Cushion Cover - Installation

INSTALLATION





1. Insert the longitudinal upholstery wires into the fabric sleeves in the cover (3).
2. Fold the cover over and position it on the foam rubber pad (1).
3. Hook the middle longitudinal upholstery wire onto the wire, insert it in the foam rubber pad (1) with the fabric straps (2).
4. Pull the rear lateral upholstery wire into the fabric sleeve in the cover (3).
5. Install the side longitudinal retainers and the rear lateral retainers.
6. Pull the cover (3) to the side over the foam rubber pad (1).




NOTE: Insert one additional retaining clip in clip groove at front center (arrow)

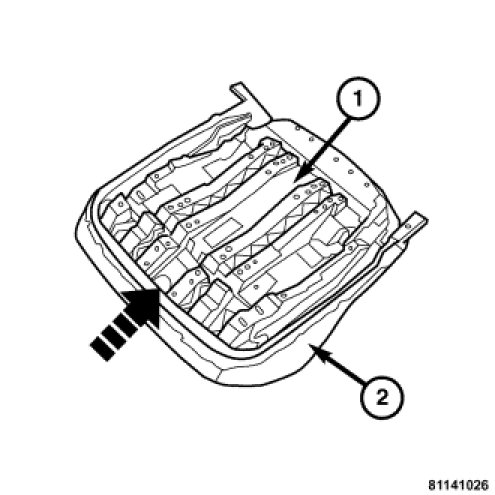

7. Position the seat cushion shell (1), align the cover (2) and hook the cover into the cushion shell (1) all the way around.
8. Hook fabric tabs on the left and right into the cushion shell. Trim the seam on cover in this area.




9. Ensure that the contour of the cover is positioned correctly.

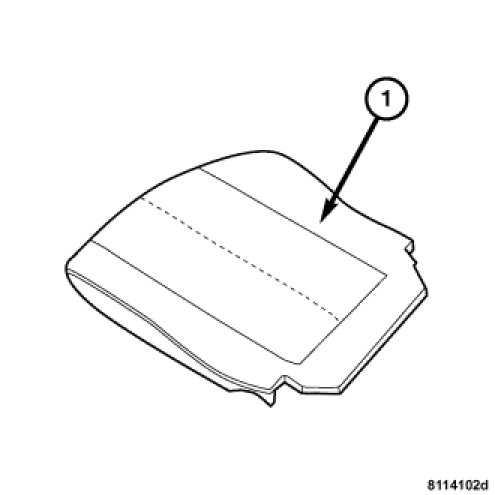

10. Install the seat cushion (1) Seat Cushion - Installation.
