Home >> Chrysler >> 2007 >> Crossfire V6-3.2L VIN L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Diagrams >> Electrical Diagrams

Electrical Diagrams






SCHEMATICS AND DIAGRAMS

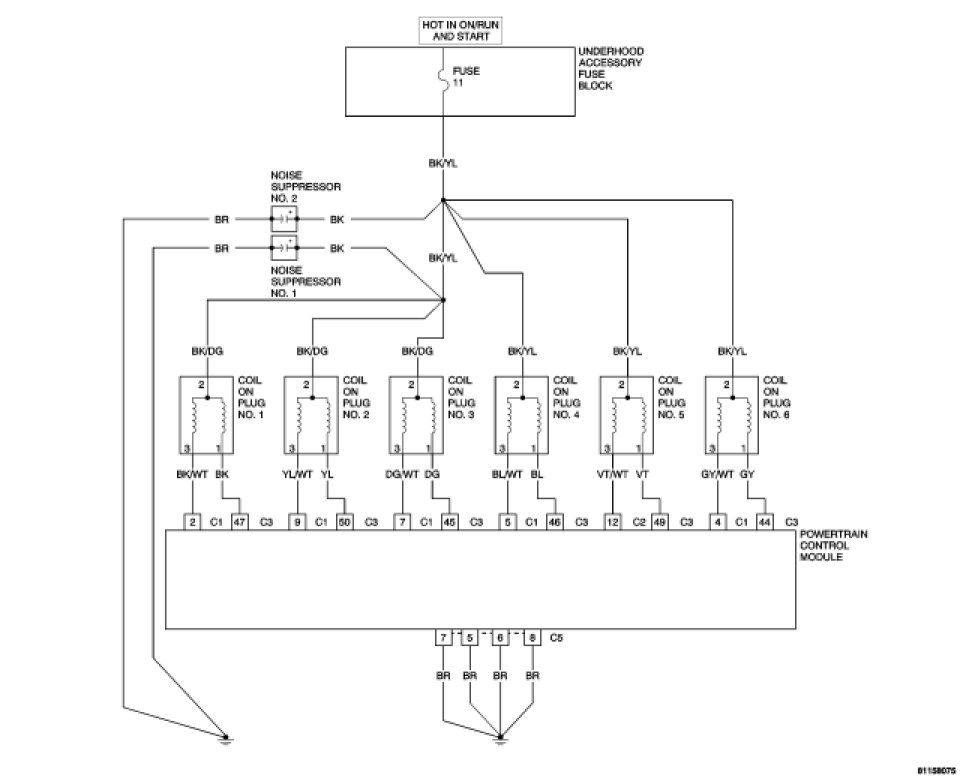

IGNITION SYSTEM CIRCUIT DIAGRAM
