Installation






INSTALLATION

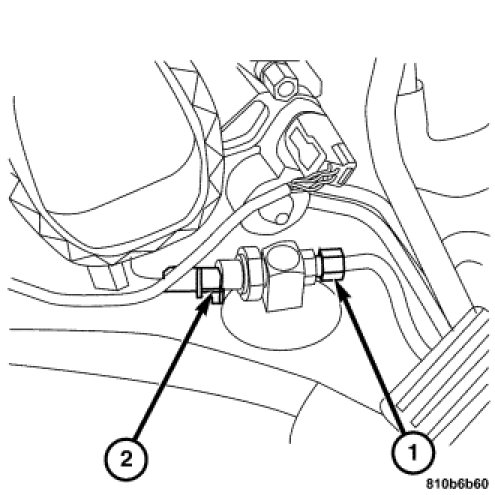

1. Install the A/C pressure transducer to the receiver/dryer (1).

2. Connect the A/C pressure transducer harness connector (2).

3. Charge the A/C system.
