Home >> Chrysler >> 2006 >> Pacifica V6-3.5L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module >> Occupant Restraint Controller

Occupant Restraint Controller

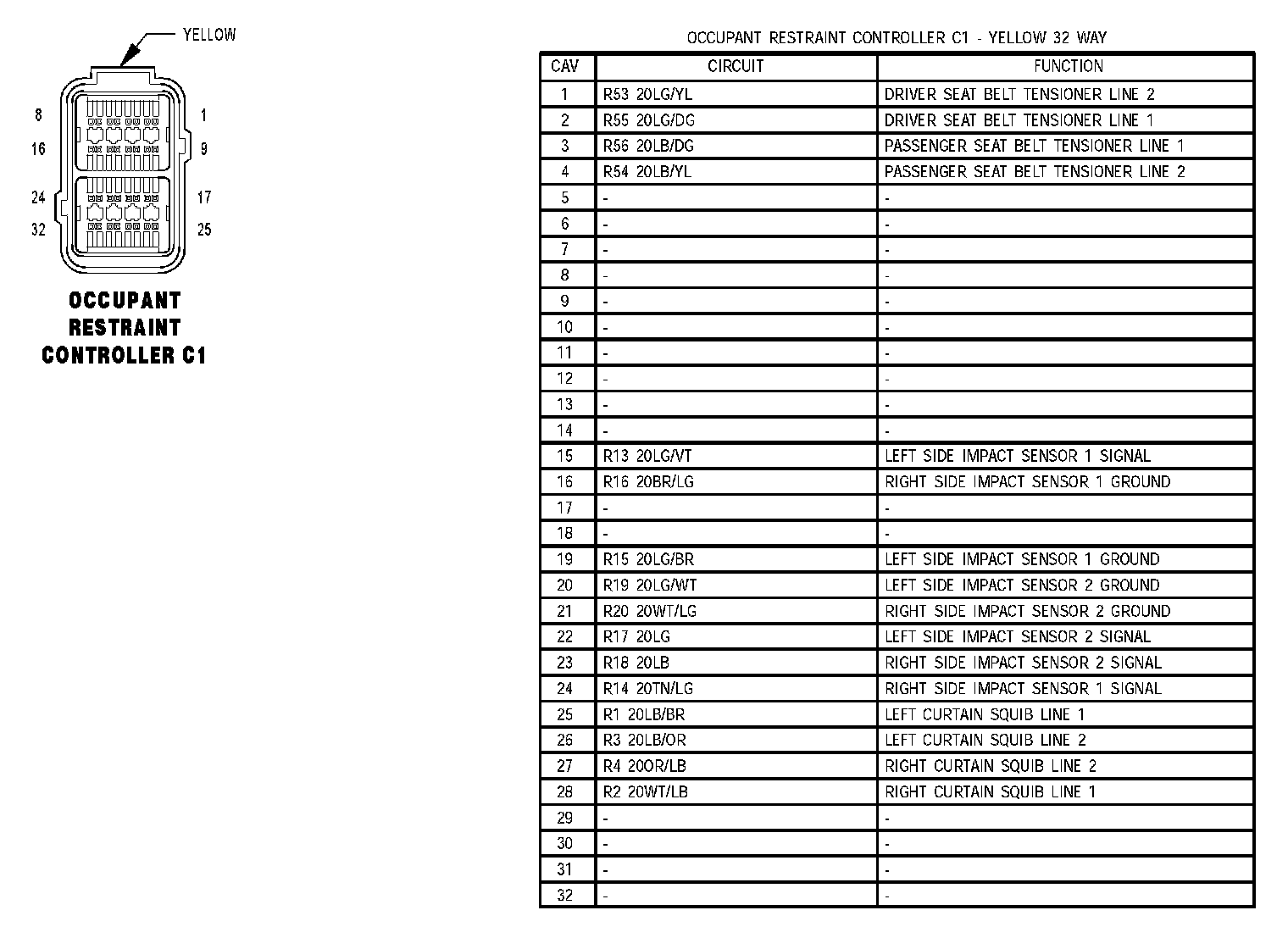

Occupant Restraint Controller C1:

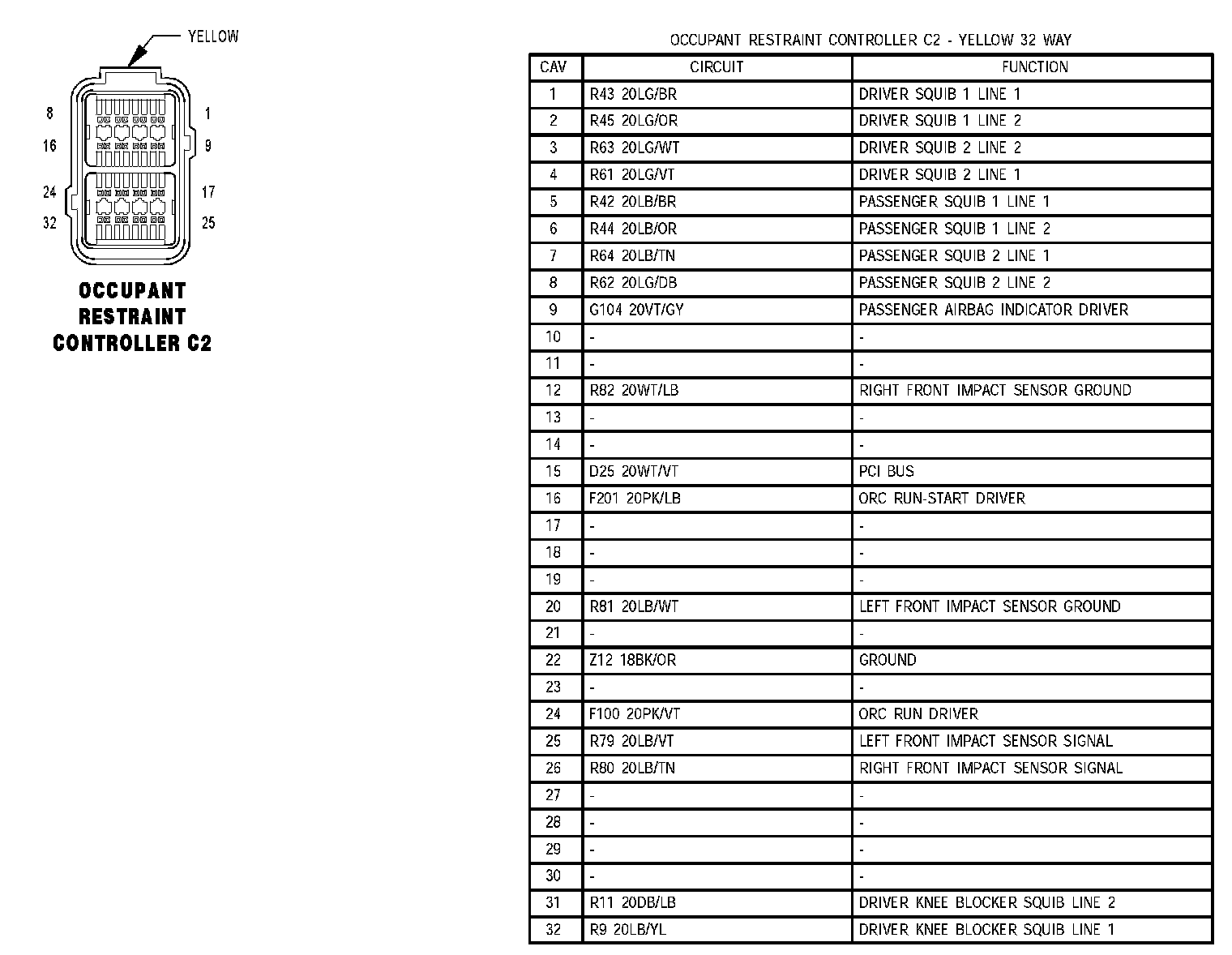

Occupant Restraint Controller C2:
