Crossfire SRT-6 V6-3.2L SC VIN N
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
System Specifications
>>
Engine Torque Specifications
Engine Torque Specifications

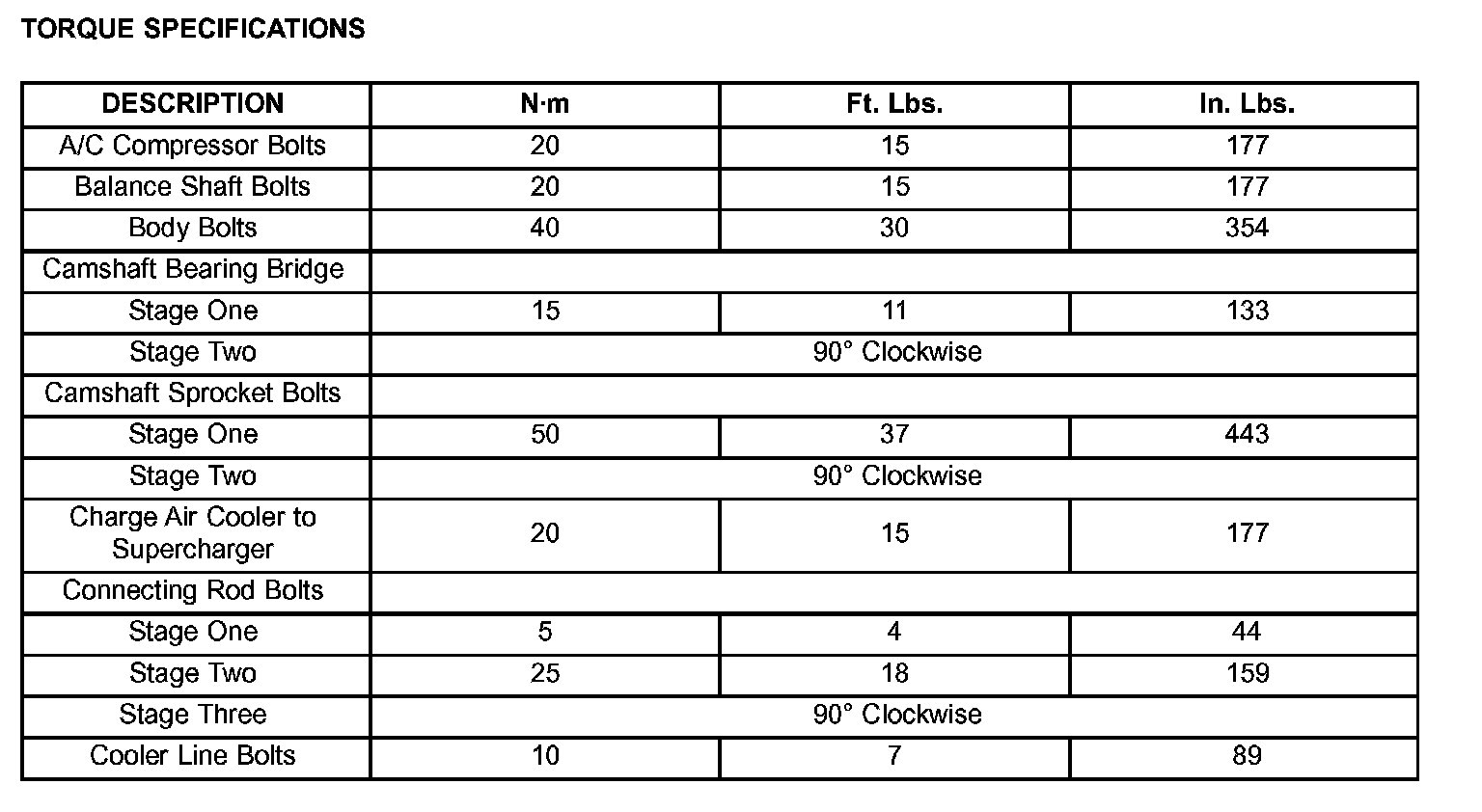

TORQUE SPECIFICATIONS:

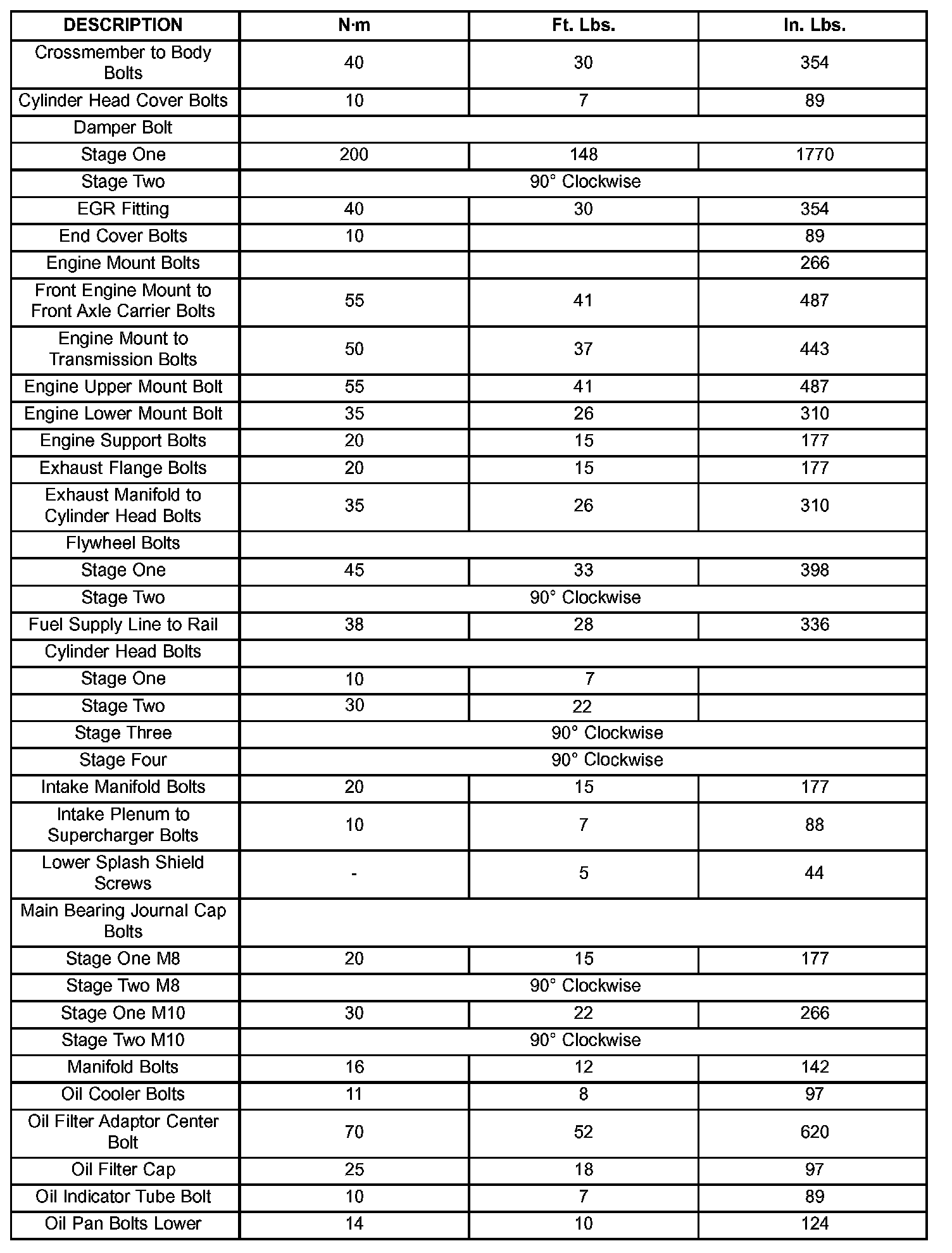

TORQUE SPECIFICATIONS:

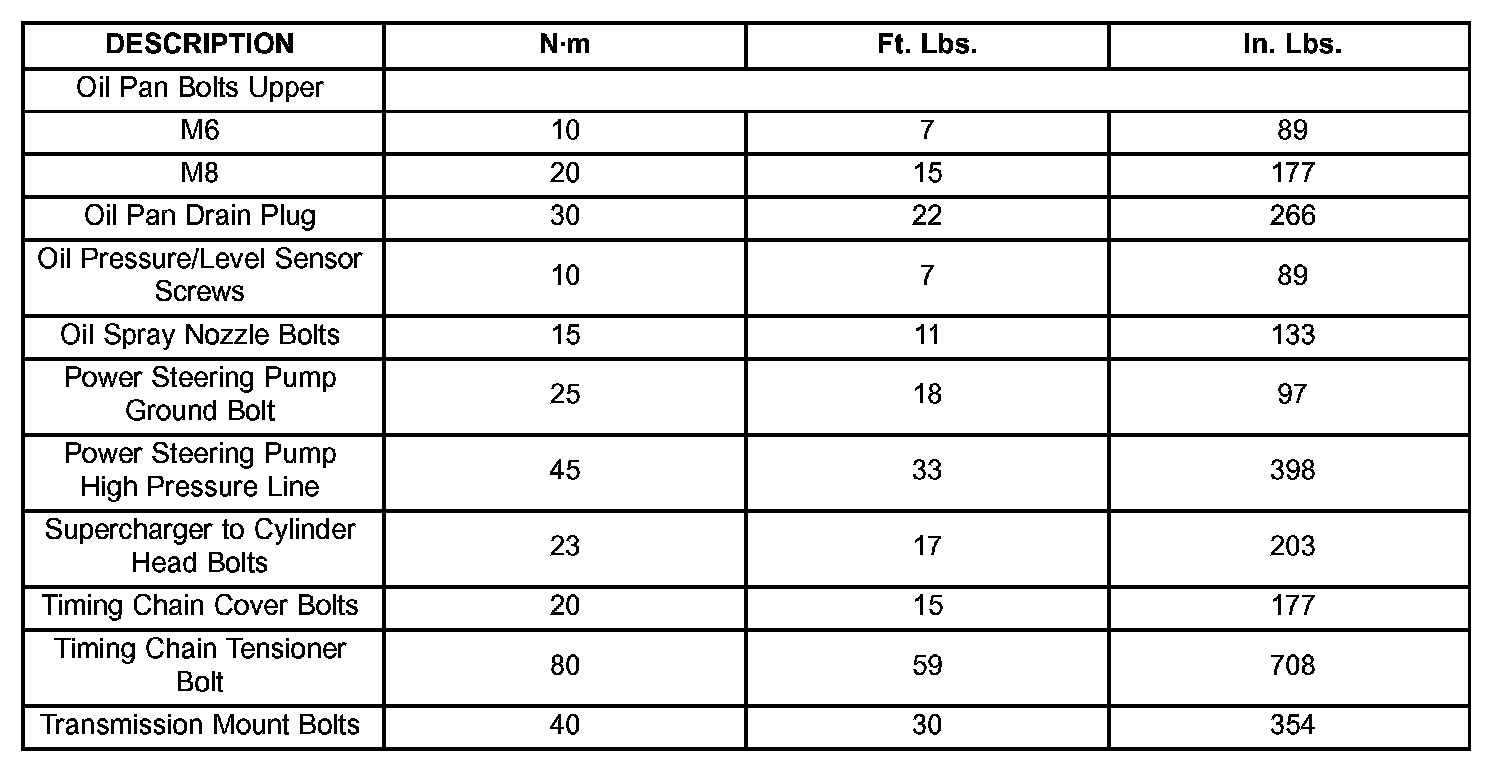

TORQUE SPECIFICATIONS:
Oil pump bolts
20 Nm (15 ft. lbs.)
Water pump bolts
35 Nm (26 ft. lbs.)
