Powertrain Control Module (PCM)

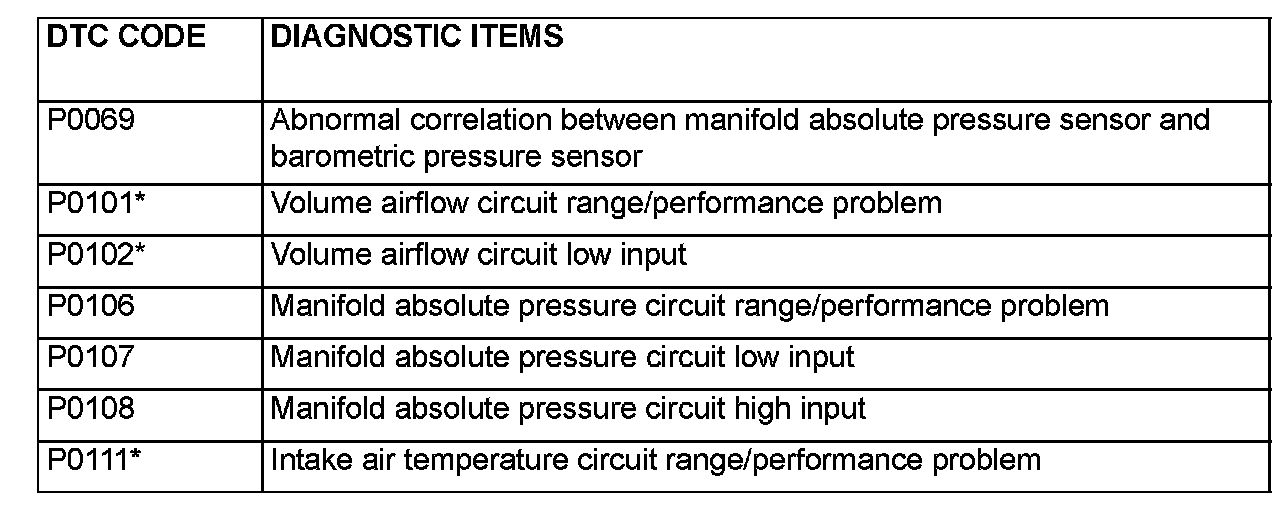

P0069 - P0111:

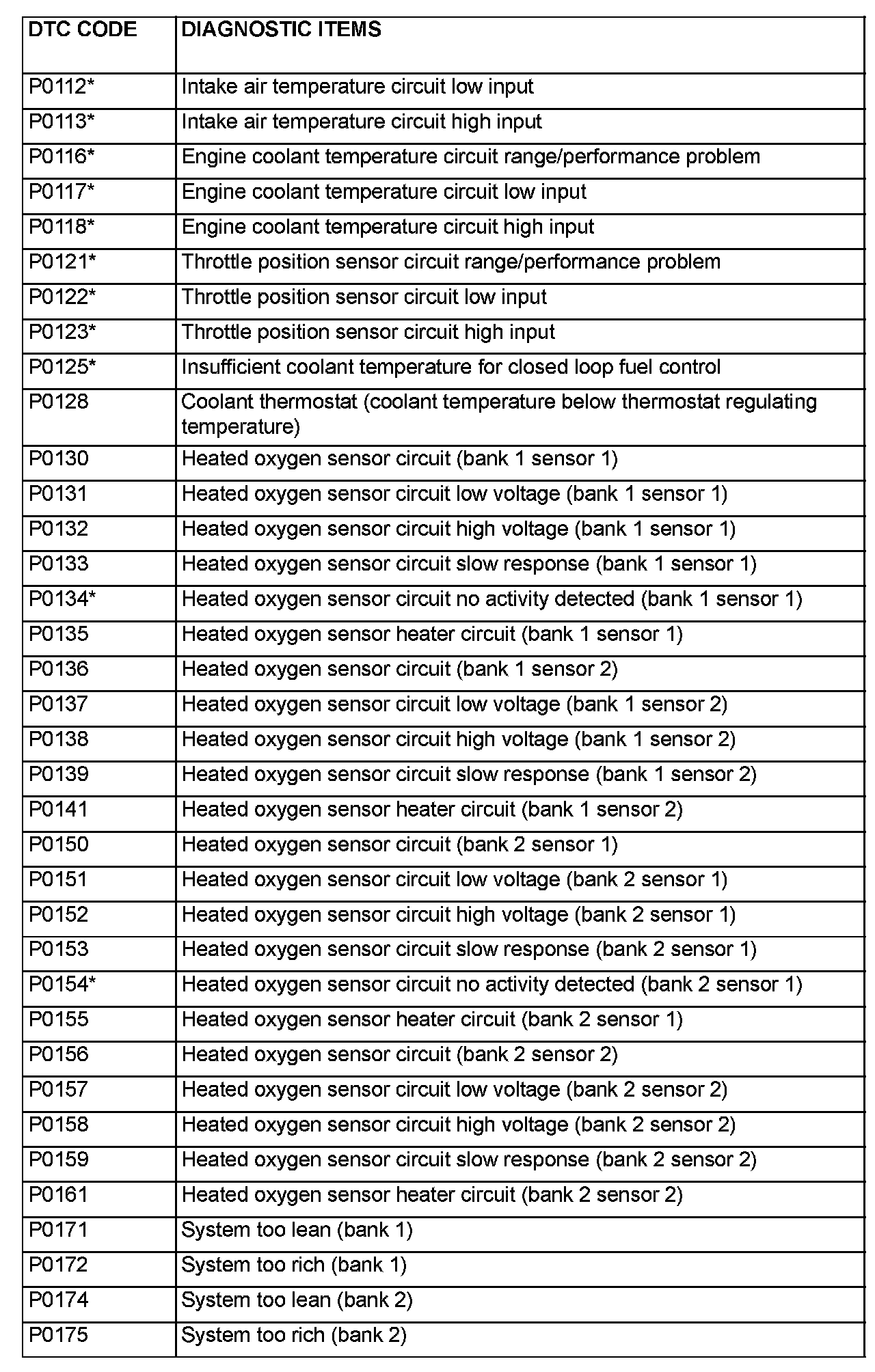

P0112 - P0175:

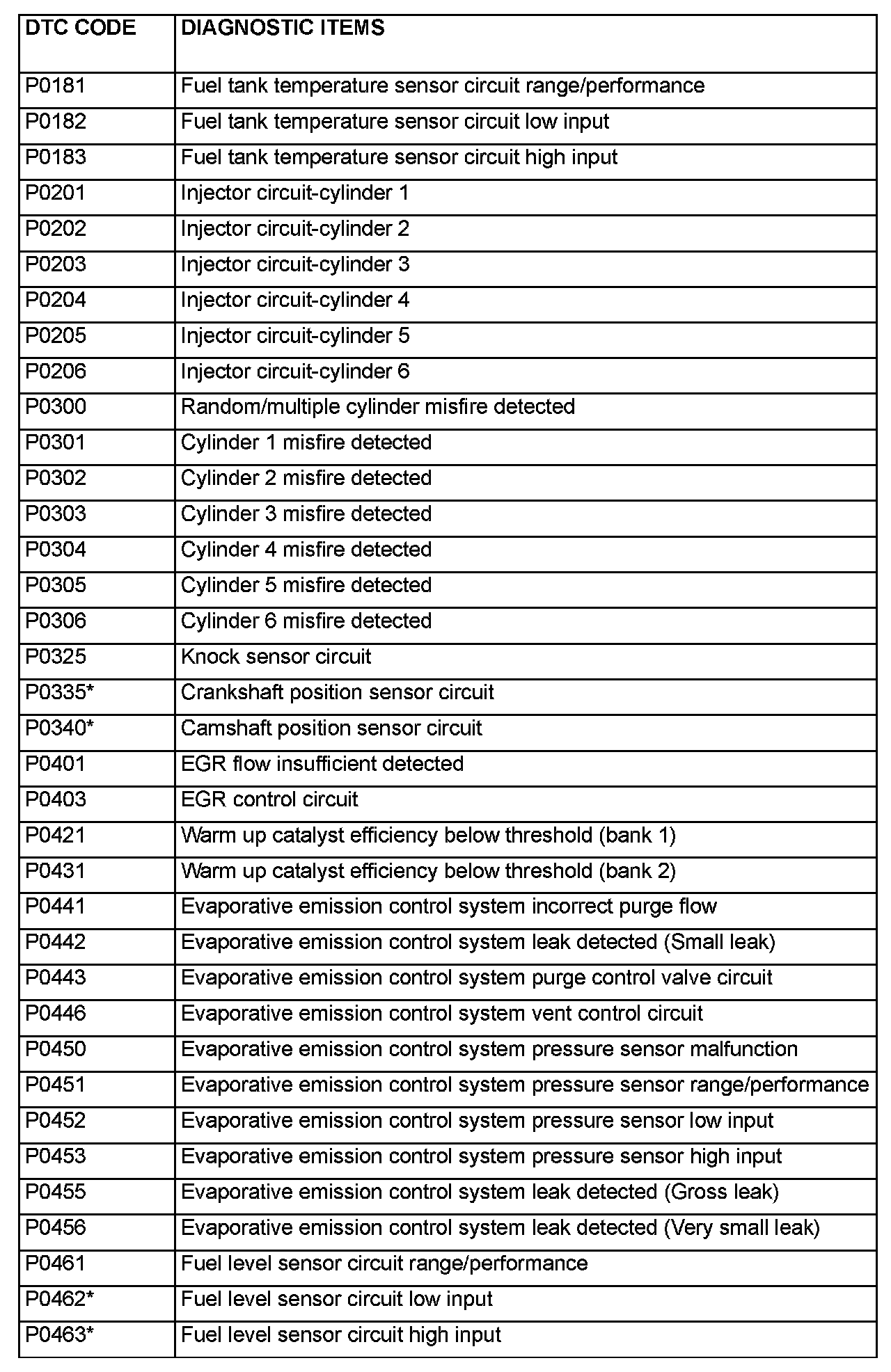

P0181 - P0463:

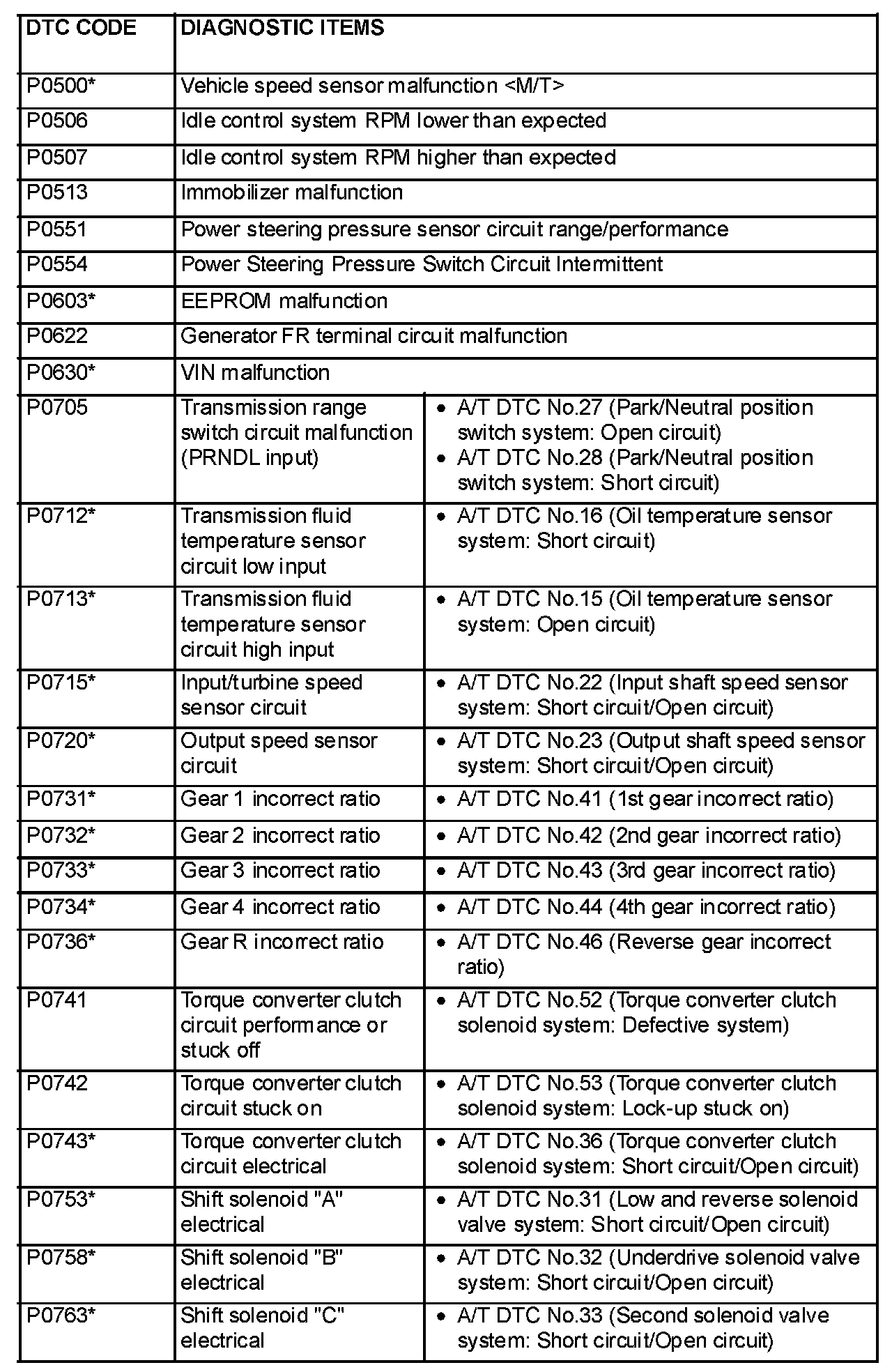

P0500 - P0763:

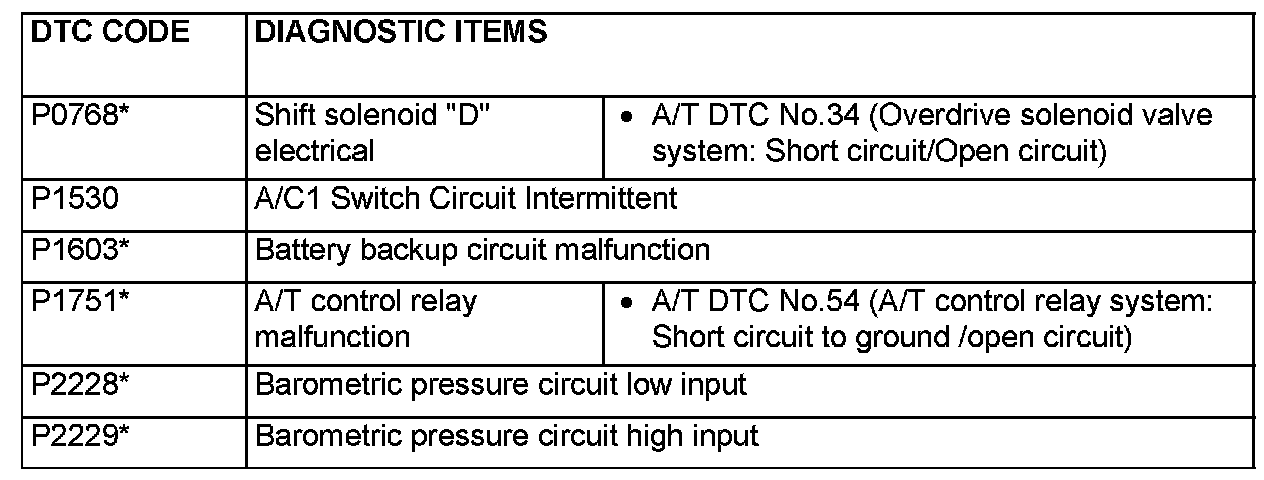

P0768 - P2229:

NOTE:
- Do not replace the engine control module (ECM) or powertrain control module (PCM) until a through terminal check reveals there are no short/open circuits.
- Check that the ECM or PCM ground circuit is normal before checking for the cause of the problem.
- After the ECM or PCM detects a malfunction, a diagnostic trouble code is recorded the next time the engine is started and the same malfunction is re-detected. However, for items marked with a "*," the diagnostic trouble code is recorded on the first detection of the malfunction.
- Sensor 1 indicates the sensor mounted at a position closest to the engine, and sensor 2 indicates the sensor mounted at the position second closest to the engine.
- Bank 1 indicates the right bank side cylinder, and Bank 2 indicates the left bank side cylinder.
