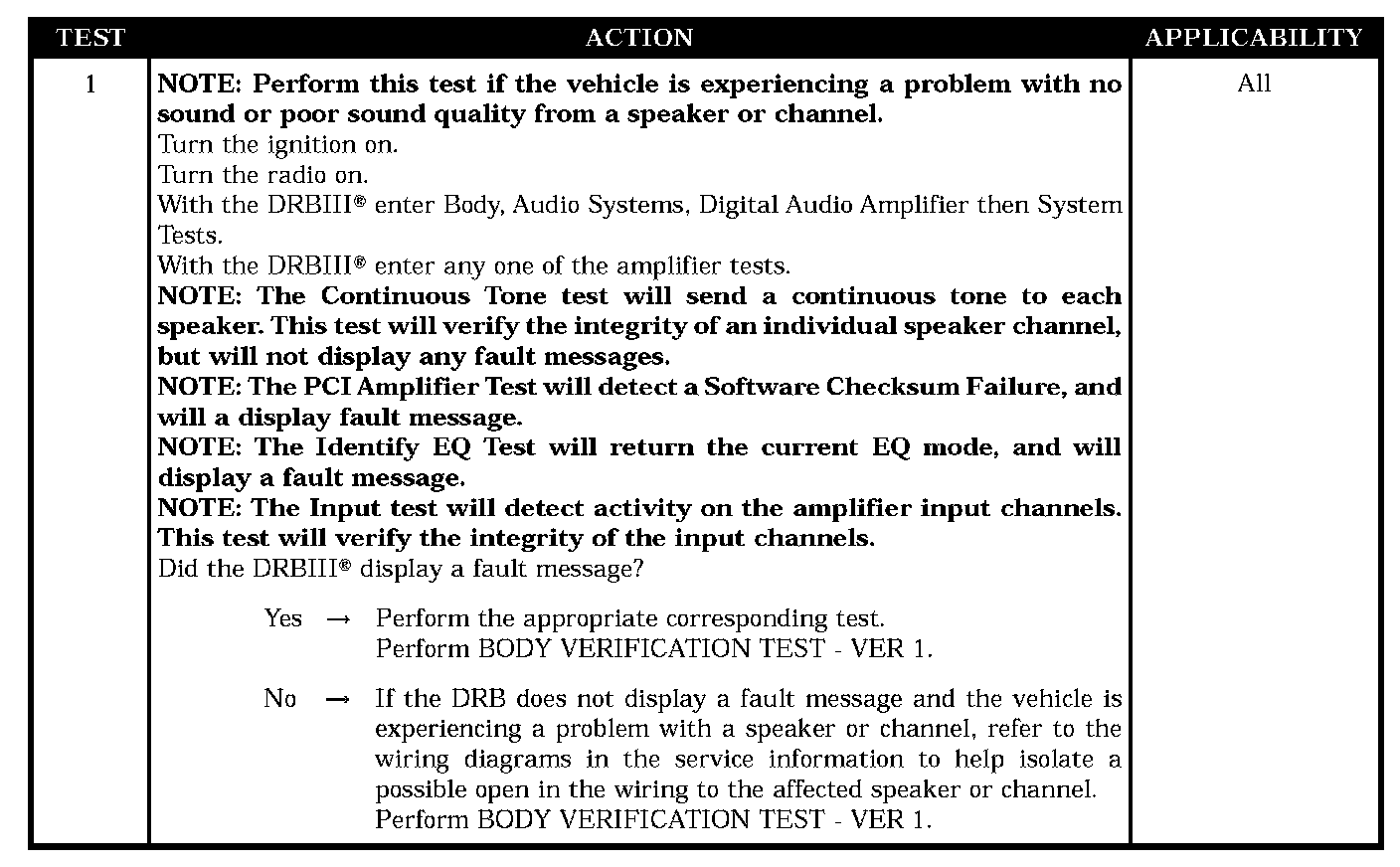

Amplifier Pretest

Test 1:






SYMPTOM
AMPLIFIER PRETEST

POSSIBLE CAUSES
- Amplifier pretest
- No fault message displayed
