Component Locations

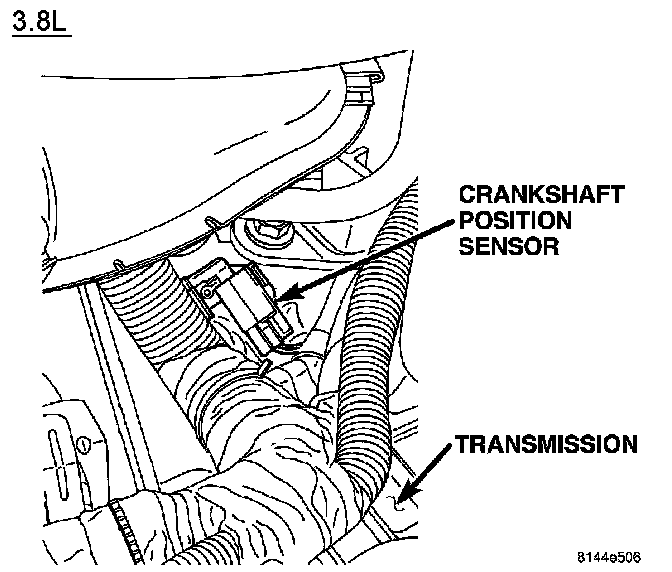

Crankshaft Position Sensor - 3.8L:





3.8L:






The crankshaft sensor is located on the driver side of the vehicle, above the differential housing.
