Any Passenger Window Inoperative From DDM

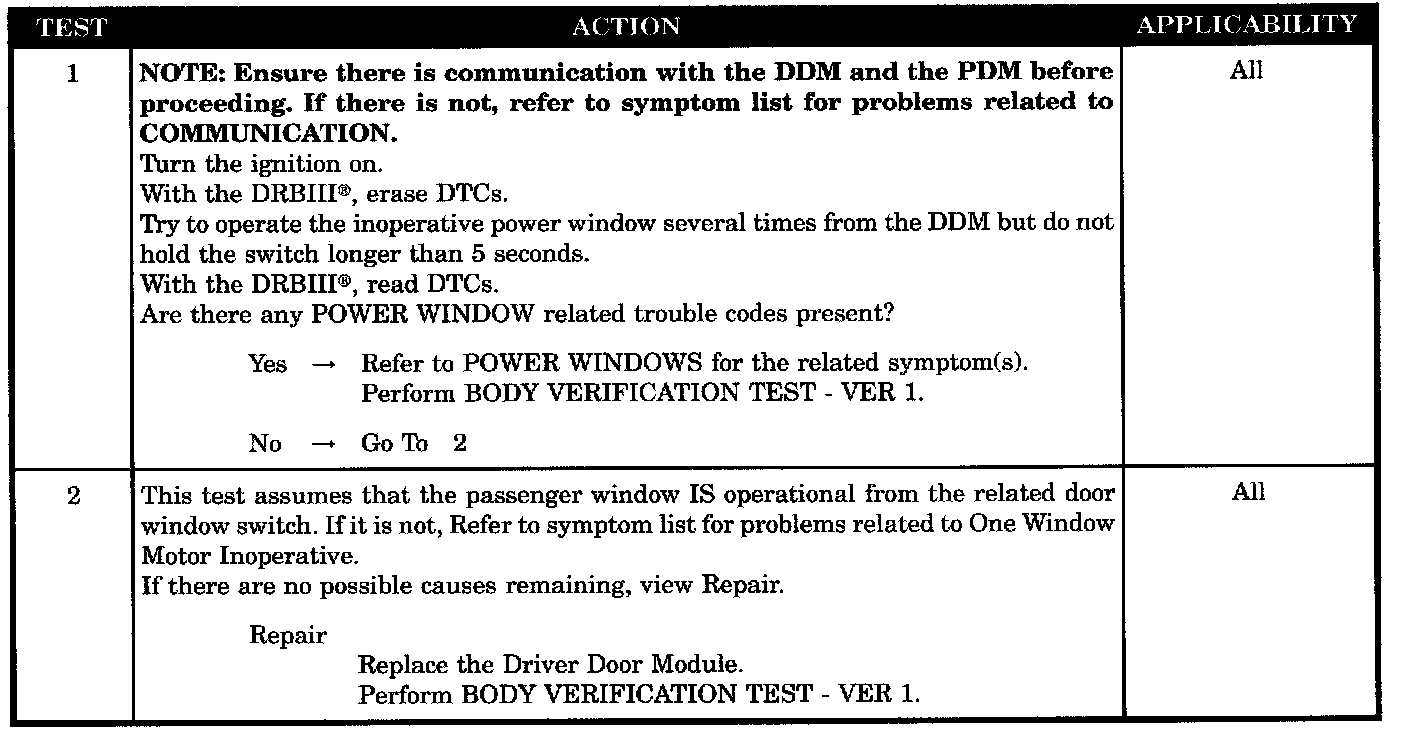

Test 1 - 2:






SYMPTOM
ANY PASSENGER WINDOW INOPERATIVE FROM DDM

POSSIBLE CAUSES
- DTC present
- Driver door module - passenger window inoperative from DDM
