Underhood Accessory Fuse Block


Underhood Accessory Fuse Block:

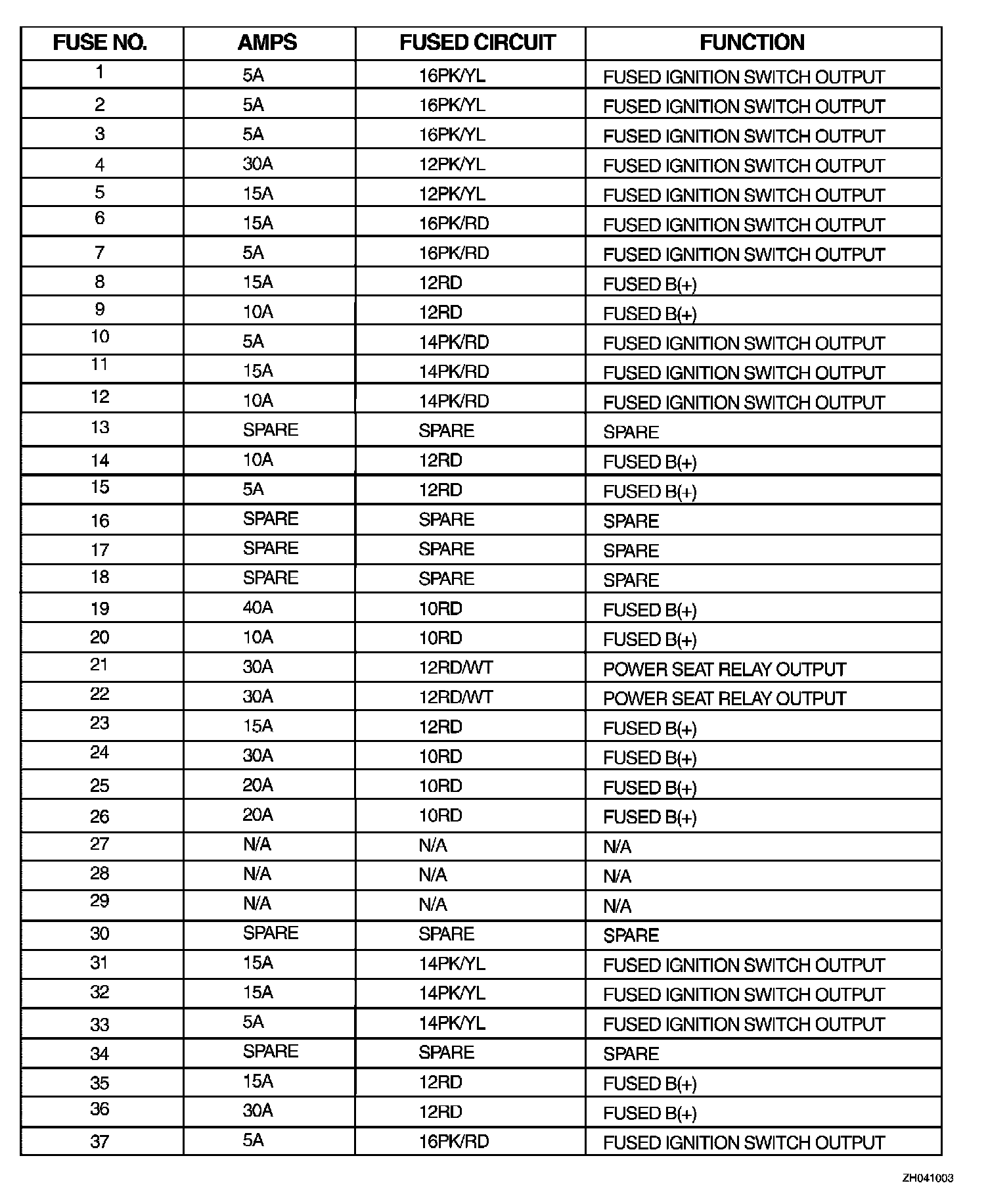

Underhood Accessory Fuse Block Fuses:
