Home >> Chrysler >> 2002 >> Prowler V6-3.5L VIN G >> Repair and Diagnosis >> Specifications >> Pressure, Vacuum and Temperature Specifications >> Engine >> System Specifications

System Specifications





Radiator Fan Operation Temperatures Specifications





Transmission Cooler Fan Operation Temperatures

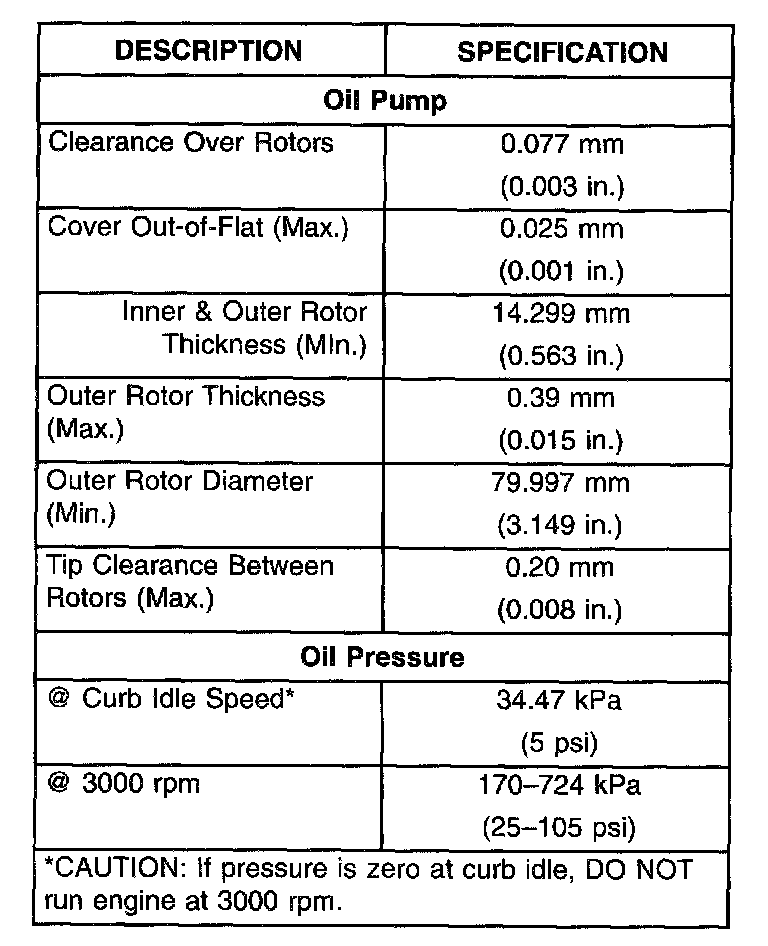

Engine Oil Pressure Specifications





Exhaust System Back Pressure Limits
