Home >> Chrysler >> 2002 >> Prowler V6-3.5L VIN G >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Alignment >> Alignment Specifications

Alignment Specifications

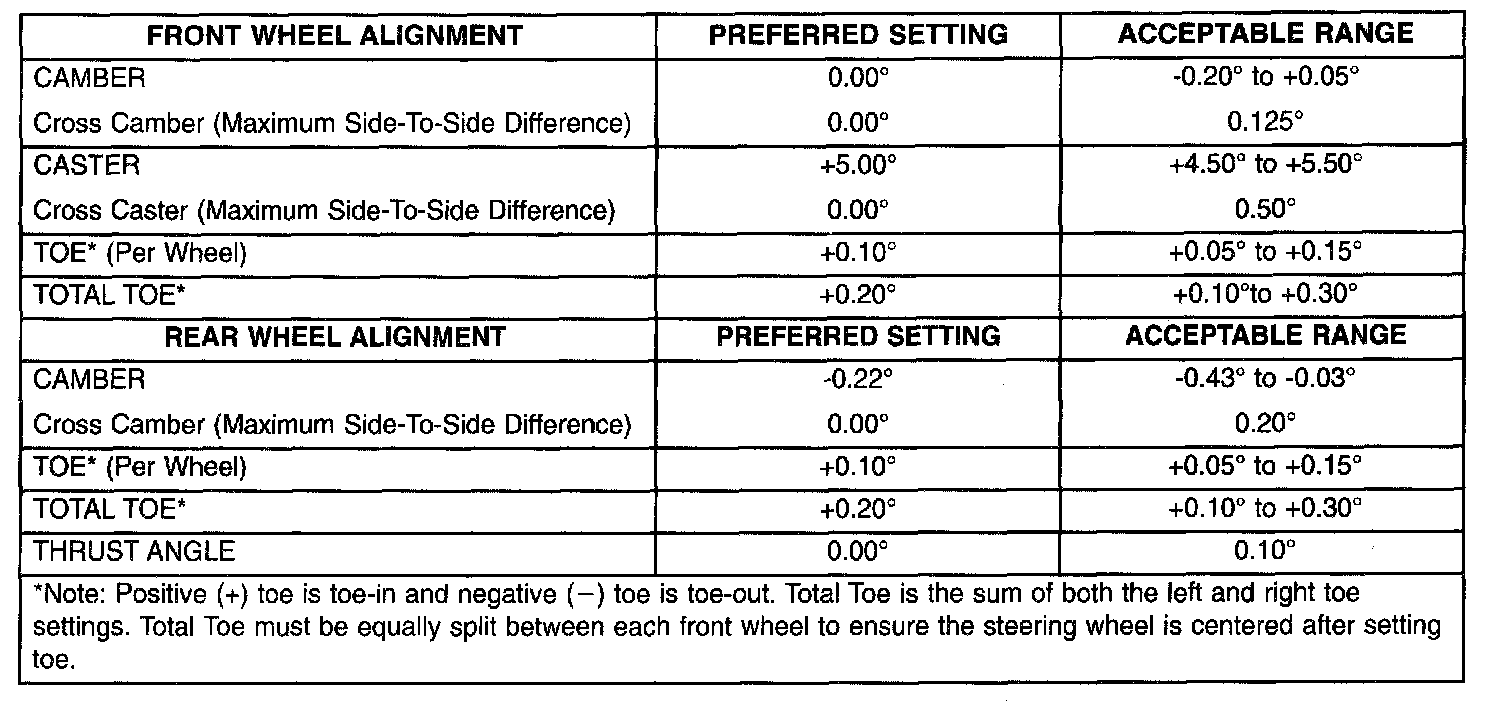

WHEEL ALIGNMENT SPECIFICATIONS





NOTE: All wheel alignments are to be set with vehicle at proper curb height.
