P1775

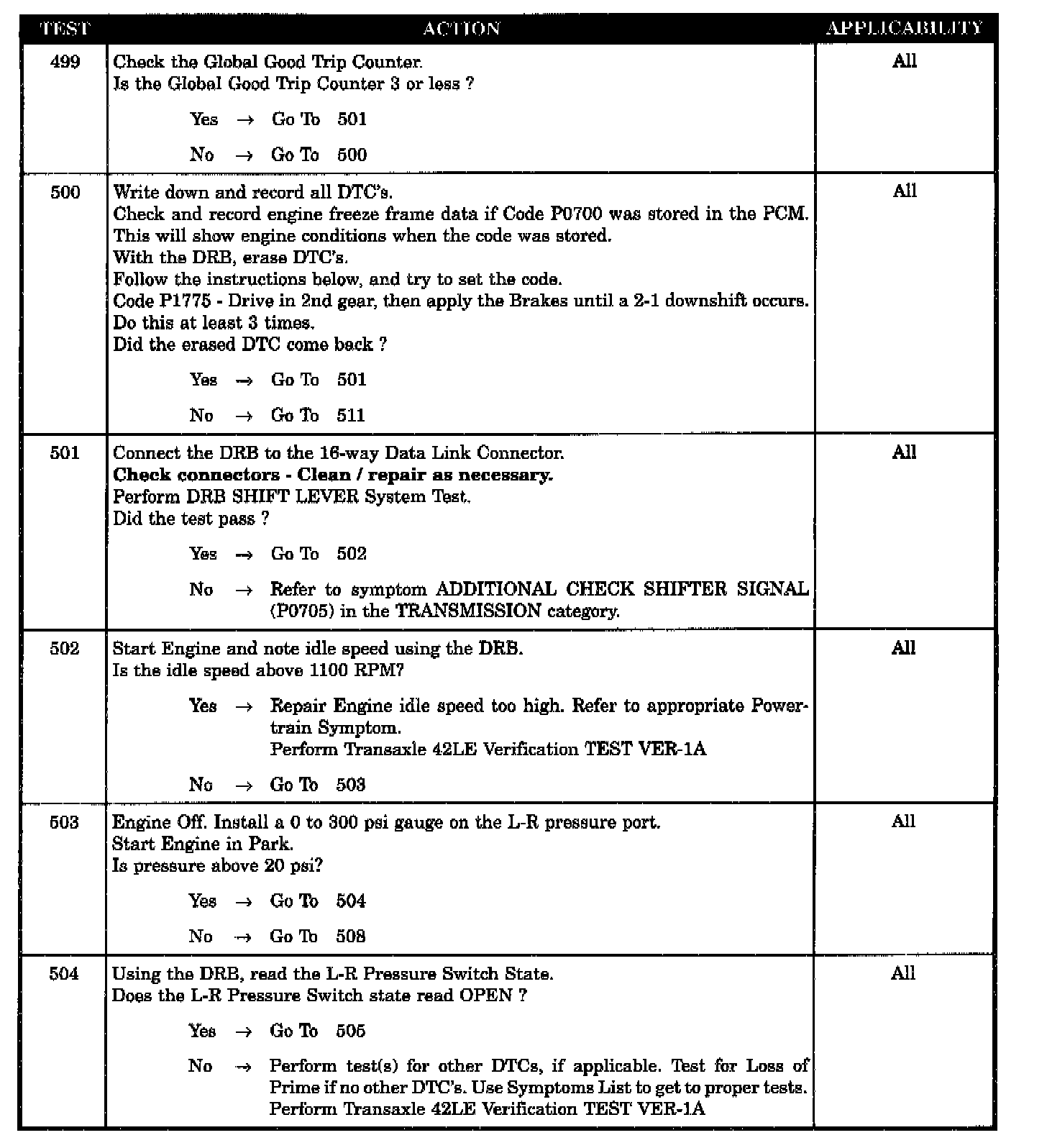

Test 499-504:

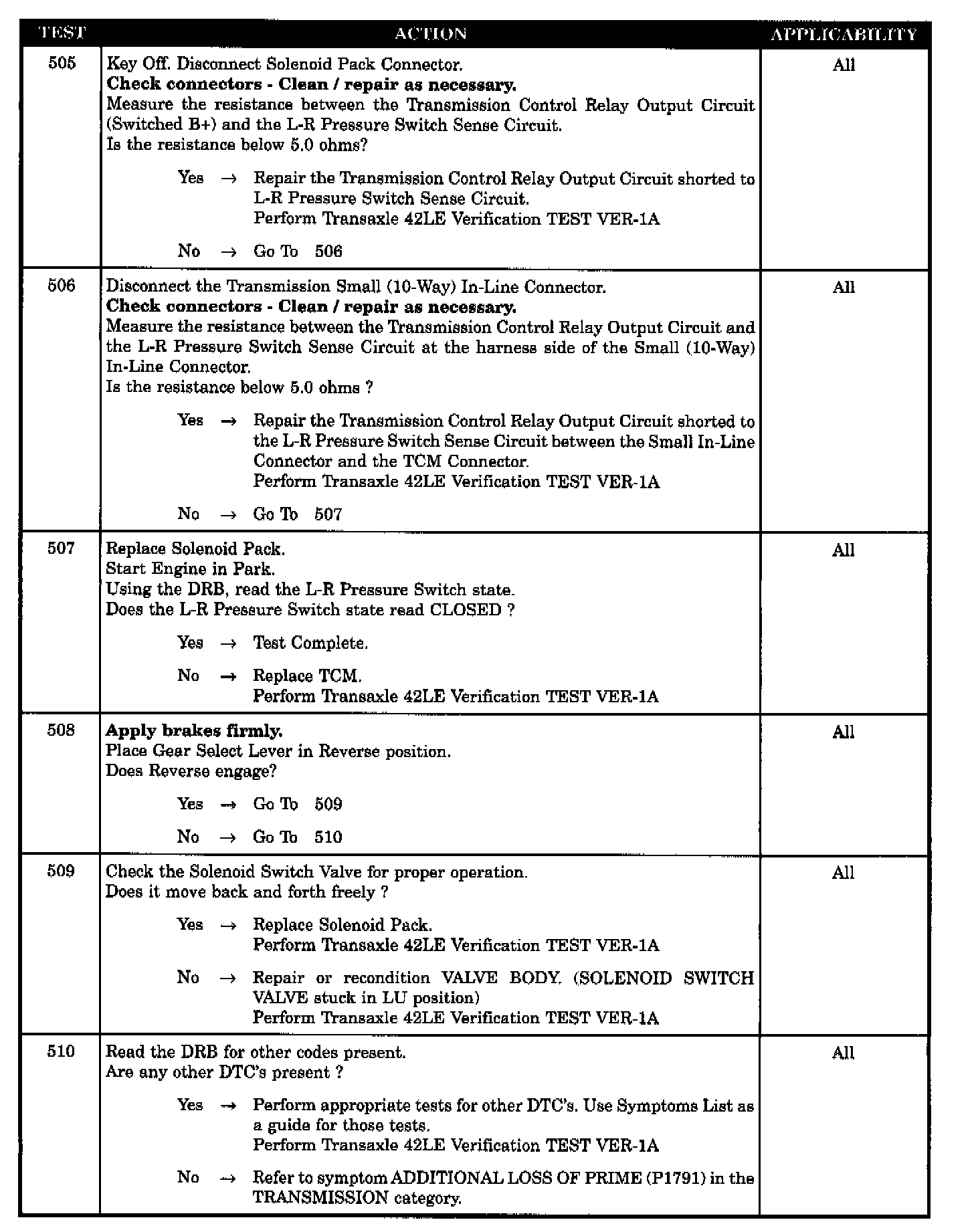

Test 505-510:

Test 511-513:

SYMPTOM:
P1775-SOLENOID SWITCH LATCHED IN TCC POSITION

When Monitored and Set Condition:
P1775-SOLENOID SWITCH LATCHED IN TCC POSITION
When Monitored: During an attempt shift into 1st gear.
Set Condition:

POSSIBLE CAUSES
- CHECKING SYMPTOMS AND POSSIBLE CAUSES
- LOW BATTERY VOLTAGE CAUSING SYMPTOM
- OTHER DTC'S PRESENT
- TCR OUTPUT CIRCUIT SHORT TO L-R PRES SW SENSE CIRCUIT
- TCR OUTPUT SHORT TO L-R PRES SENSE AT INLINE CONNECTOR
- TCM L-R PRESSURE SWITCH SENSE INPUT DEFECTIVE
- TCM L-R PRESSURE SWITCH STATE READS OPEN
- TRANSMISSION SOLENOID PACK DEFECTIVE
- ENGINE IDLE TOO HIGH
- INTERMITTENT CODE P1775
- VALVE BODY SOLENOID SWITCH STUCK IN LOCK-UP
