P0736

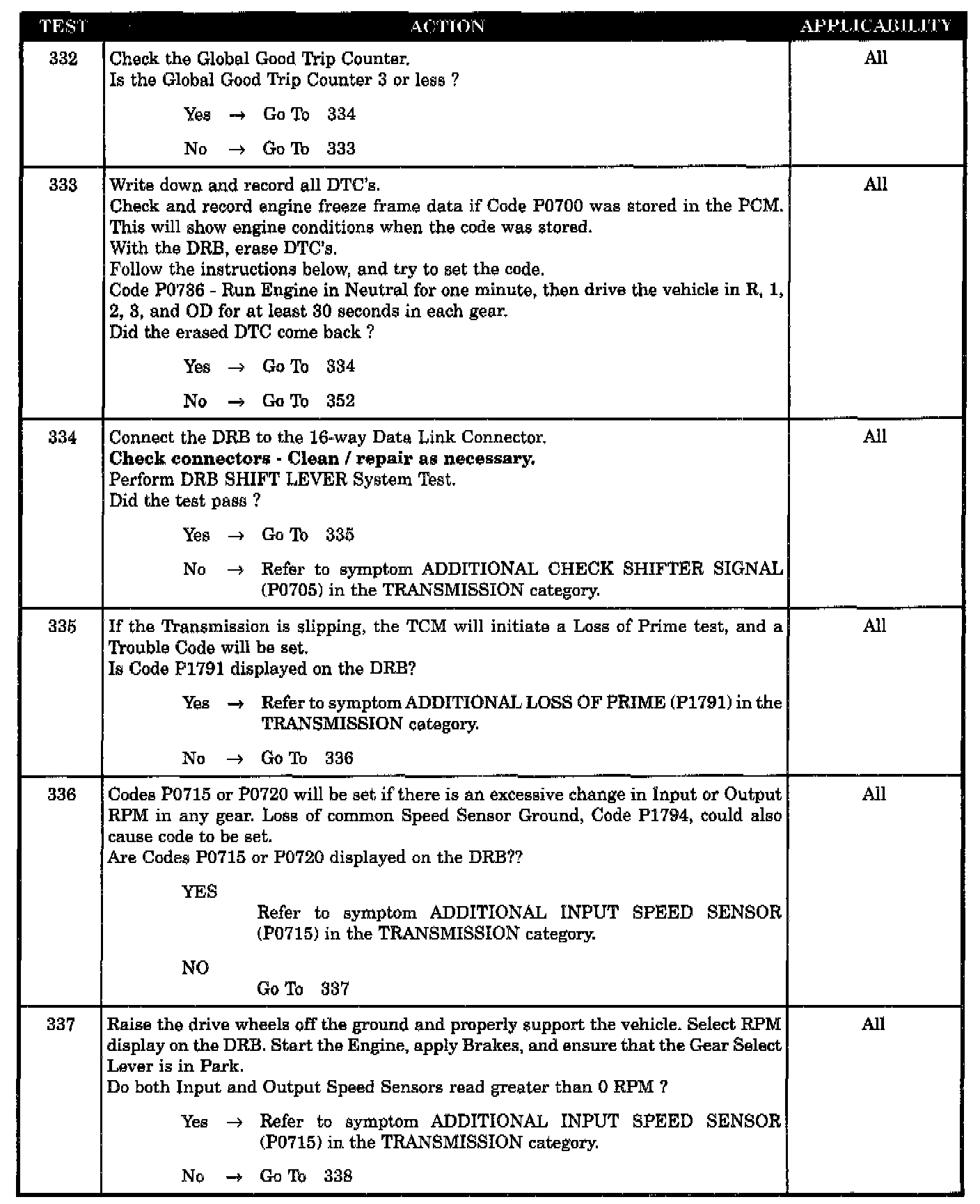

Test 332-337:

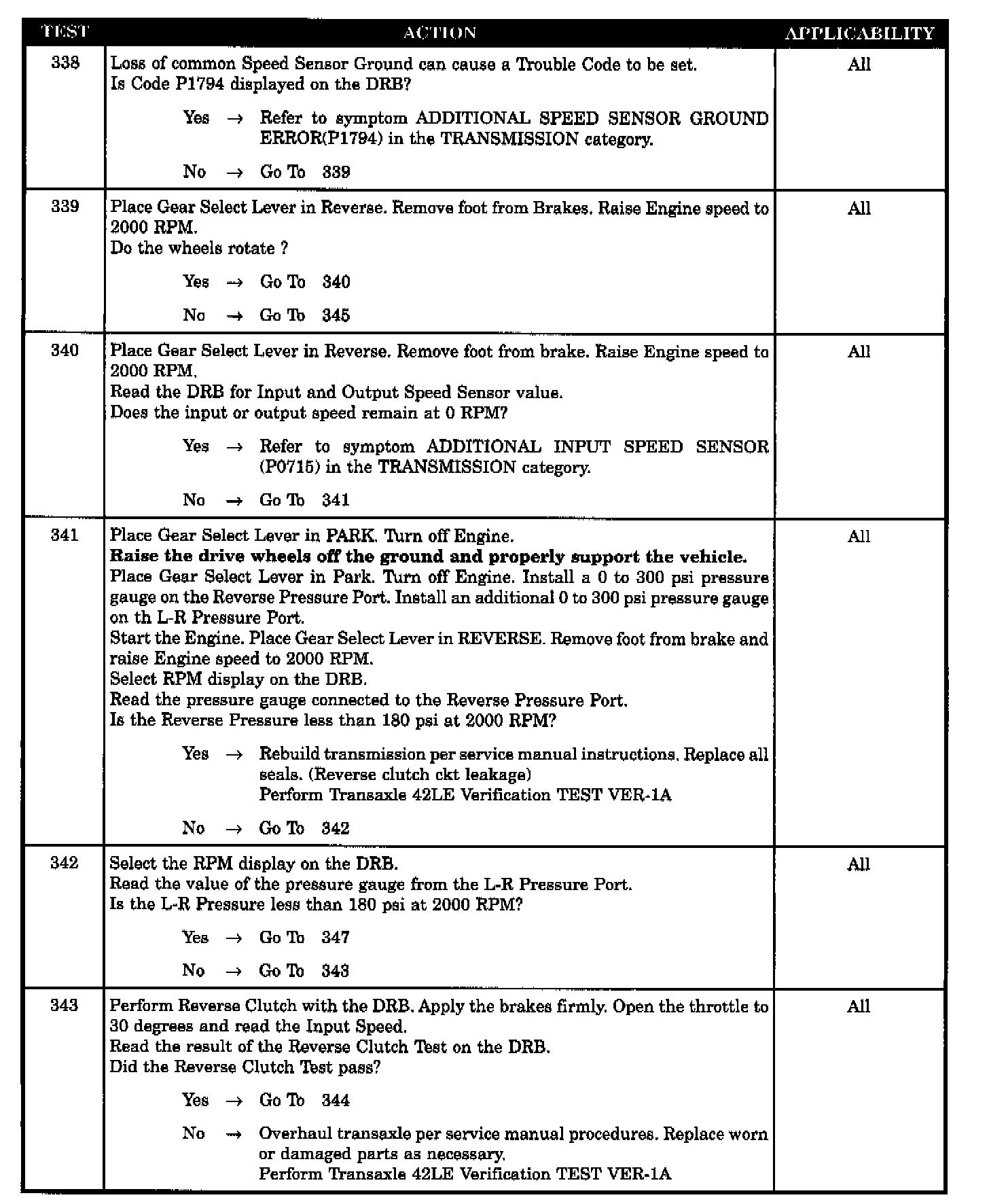

Test 338-343:

Test 344-348:

Test 349-352:

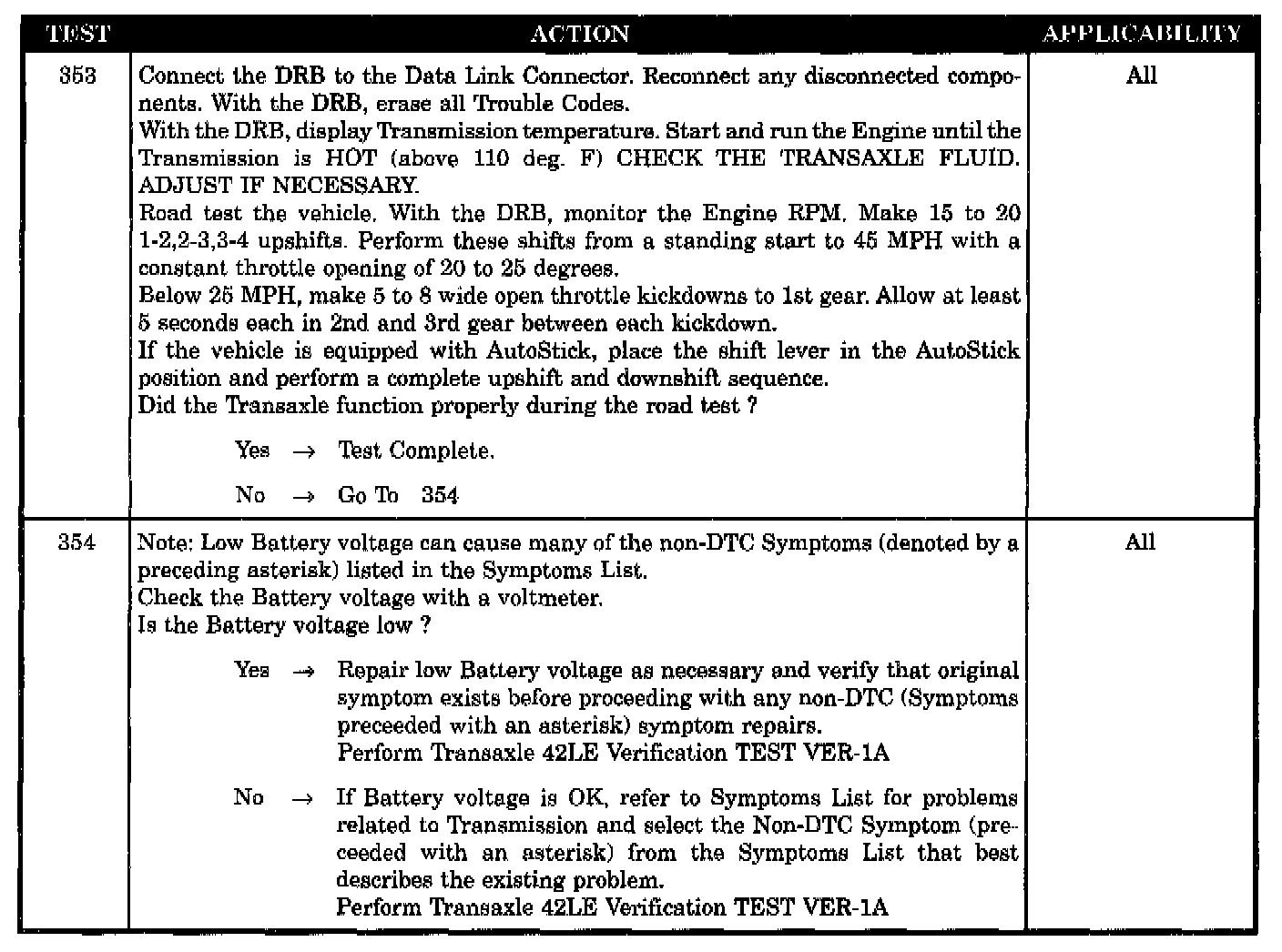

Test 353-354:

SYMPTOM:
P0736-GEAR RATIO ERROR IN REVERSE

When Monitored and Set Condition:
P0736-GEAR RATIO ERROR IN REVERSE
When Monitored: The transmission gear/speed ratio is monitored continuously while the transmission is in gear.
Set Condition: This code is set if the gear/speed ratio is not correct for a period of time. A hard code sets within 15 seconds. Codes P0736, P0731, P0732, P0733, P0734 set if the ratio of the input RPM (NO to the output RPM (No) does not match the given gear ratio.

POSSIBLE CAUSES
- CHECKING SYMPTOMS AND POSSIBLE CAUSES
- LOW BATTERY VOLTAGE CAUSING SYMPTOM
- REVERSE PRESSURE LESS THAN 180 PSI
- CUSTOMER COMPLAINT INTERMITTENT NO REVERSE
- REVERSE CLUTCH TEST FAILS
- TRANSAXLE NEEDS REPAIR
- L-R SWITCH VALVE STUCK IN FIRST GEAR POSITION
- L-R ACCUM SEALS WELDED TOGETHER
- INTERMITTENT CODE P0736
