NTC-4A Checking the Engine Vacuum
NTC-4A Checking the Engine Vacuum
Related Image:

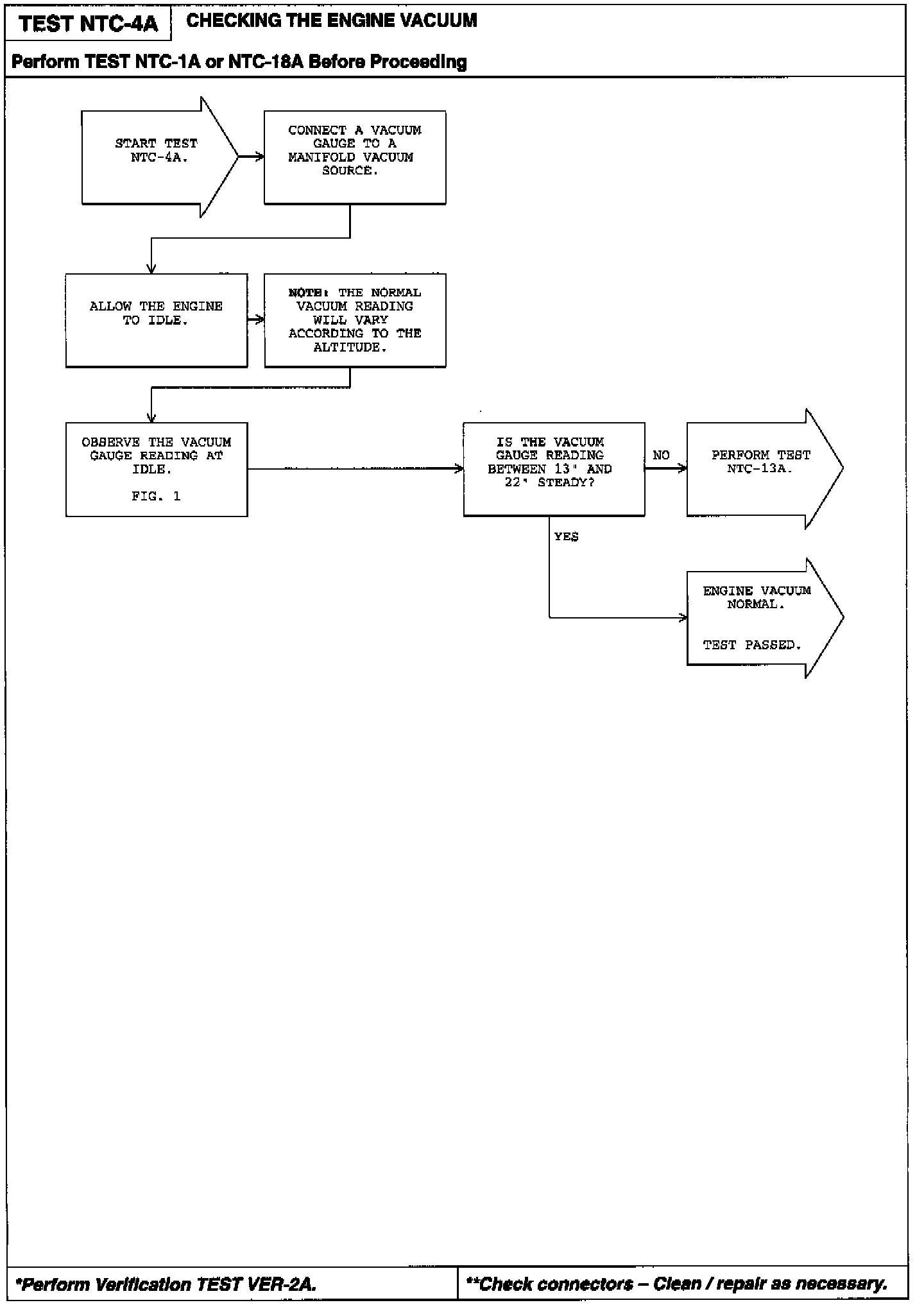

Diagnostic Chart:
