NTC-3A Checking the PCM Power and Ground Circuits
NTC-3A Checking the PCM Power and Ground Circuits

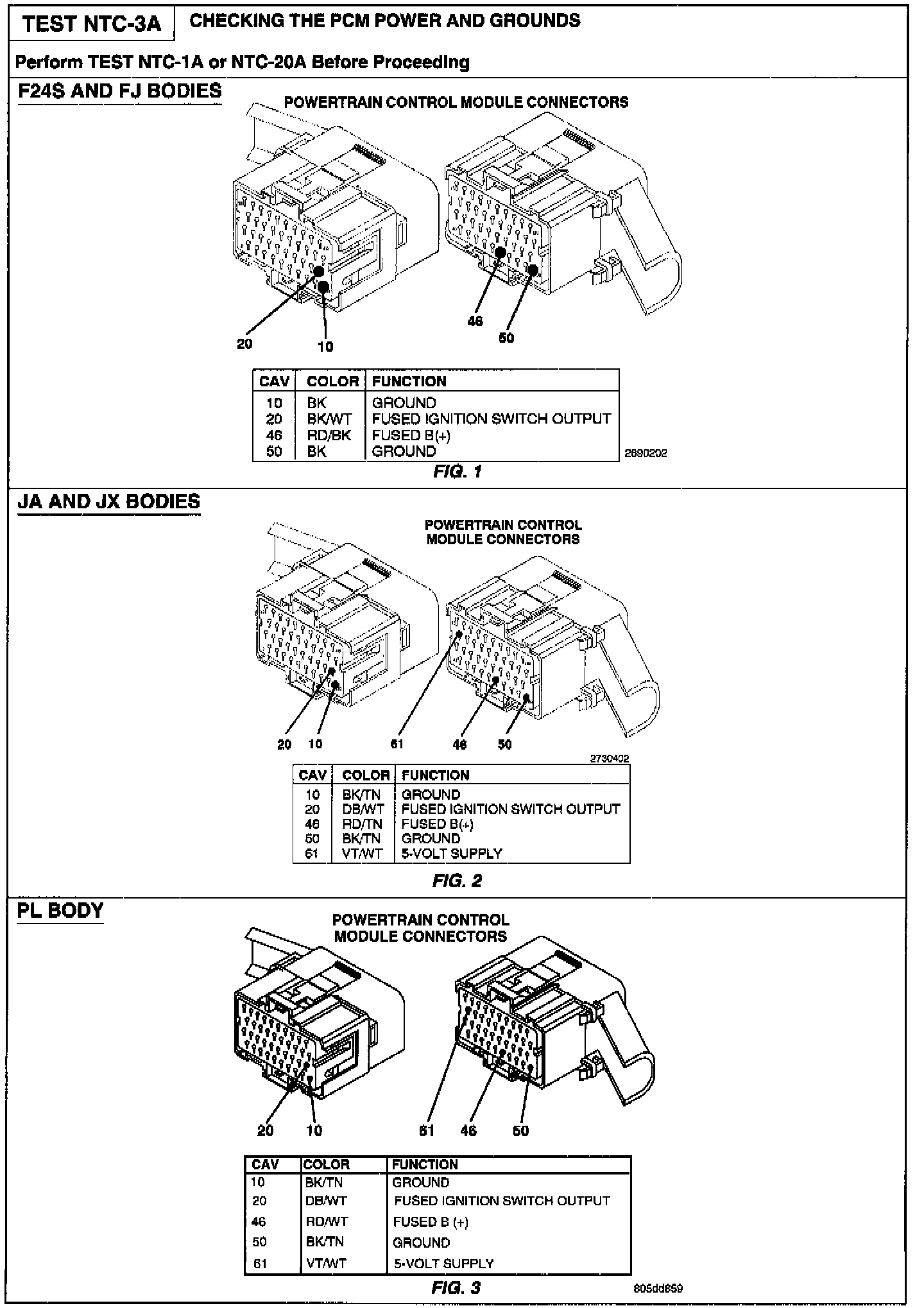

Related Image:

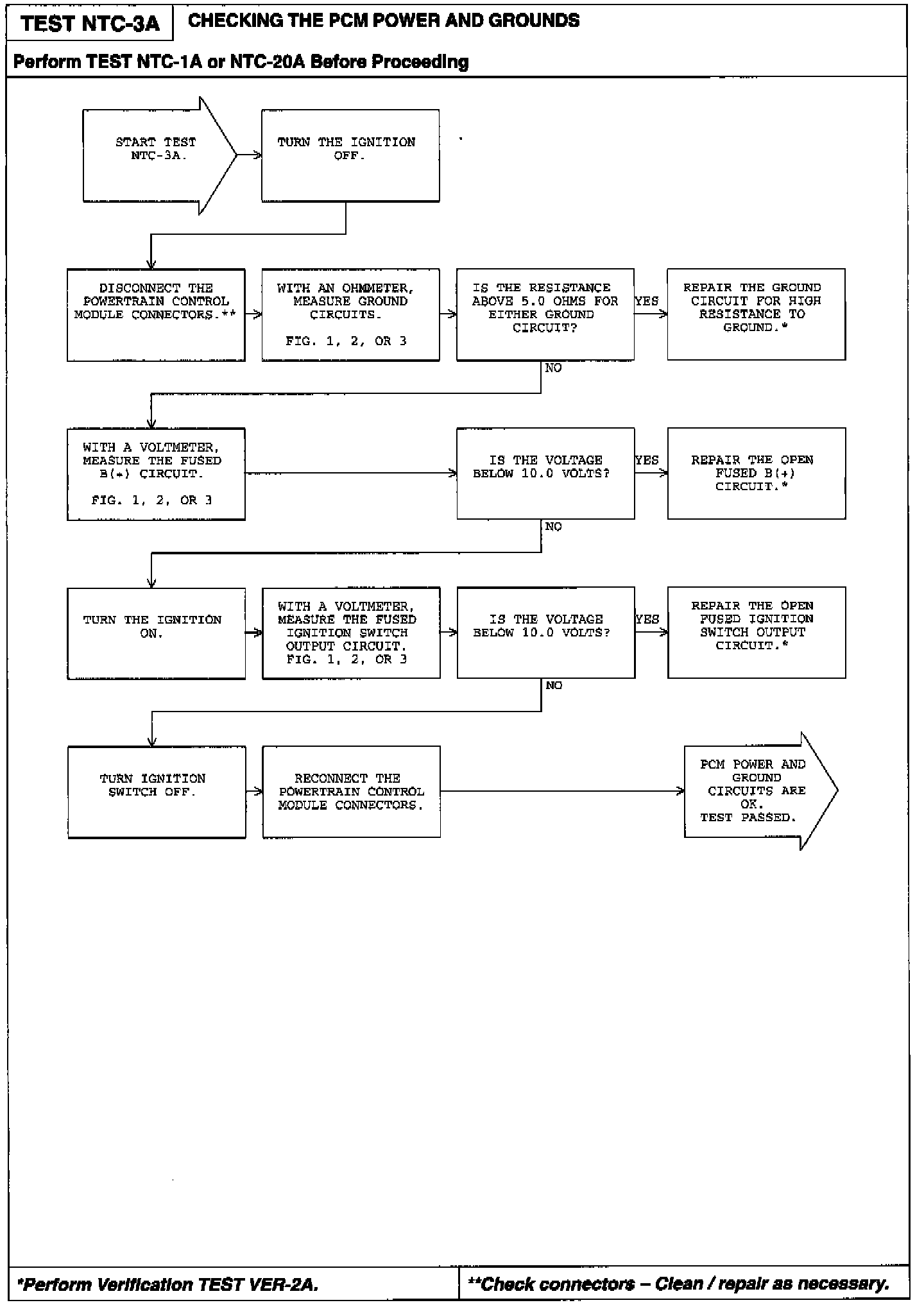

Diagnostic Chart:
