NTC-17B Checking the Evaporative Emission System
NTC-17B Checking the Evaporative Emission System

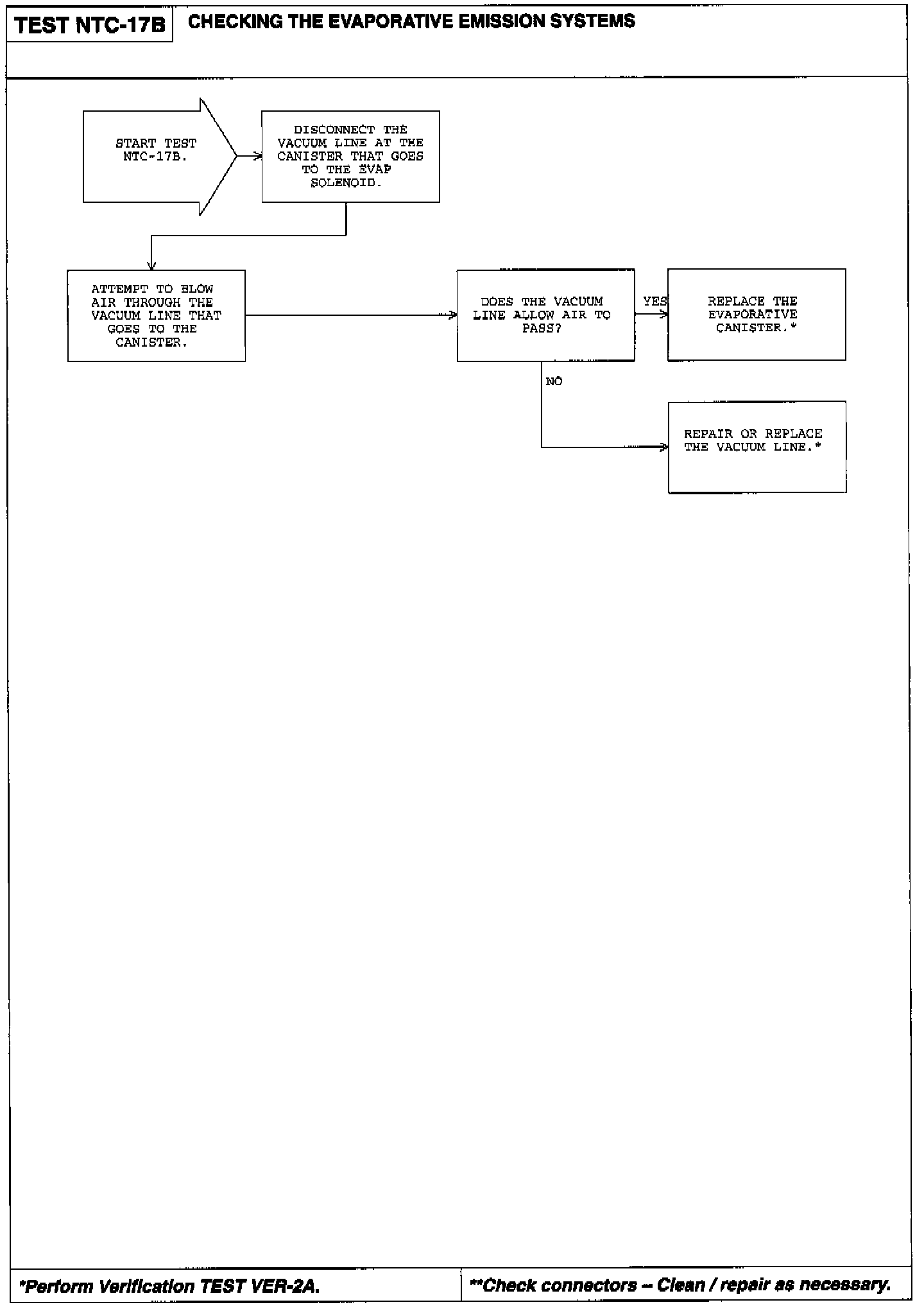

Diagnostic Chart:
