NTC-11A Checking The Oxygen Sensor Heater
NTC-11A Checking The Oxygen Sensor Heater

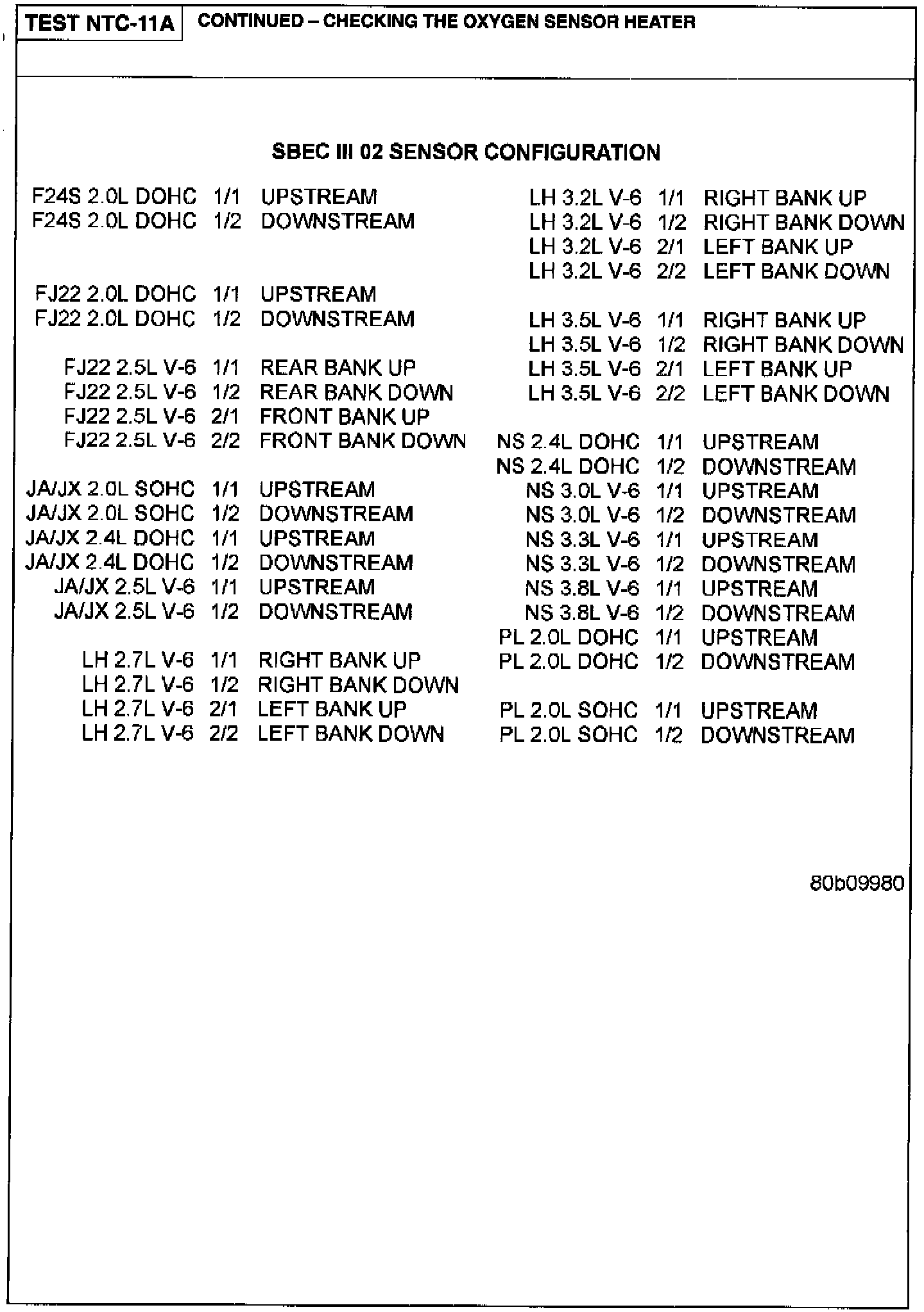

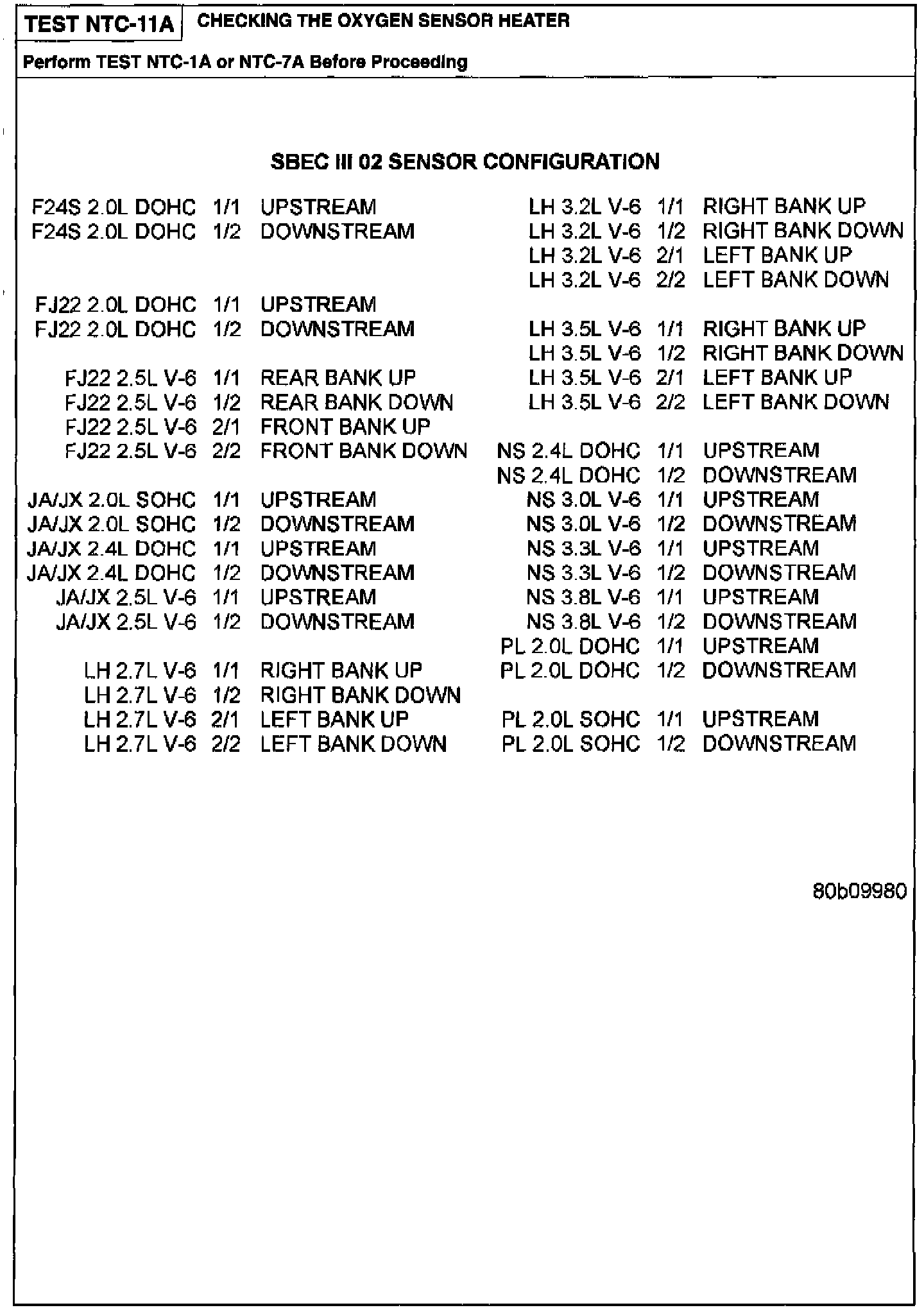

Related Image:

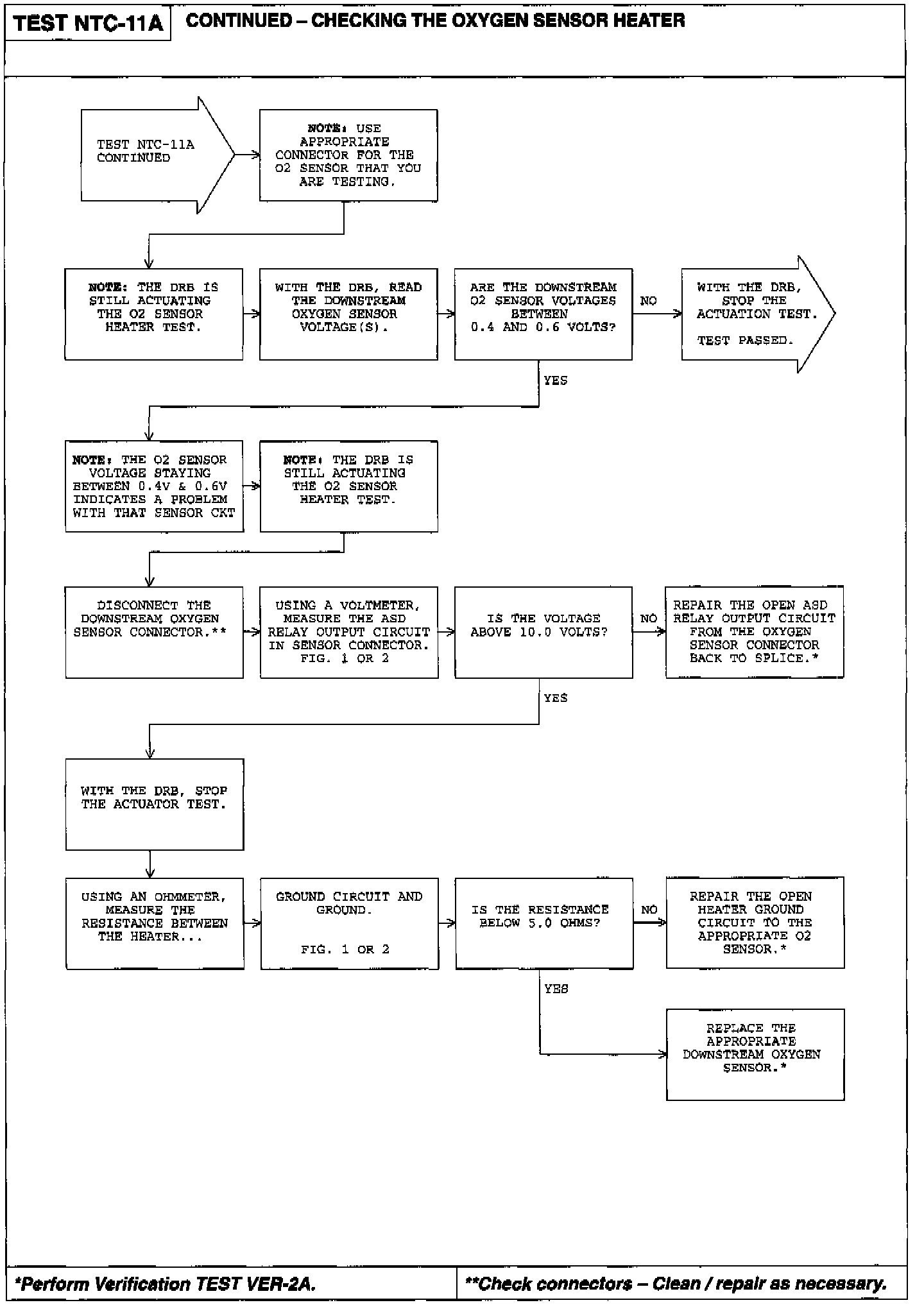

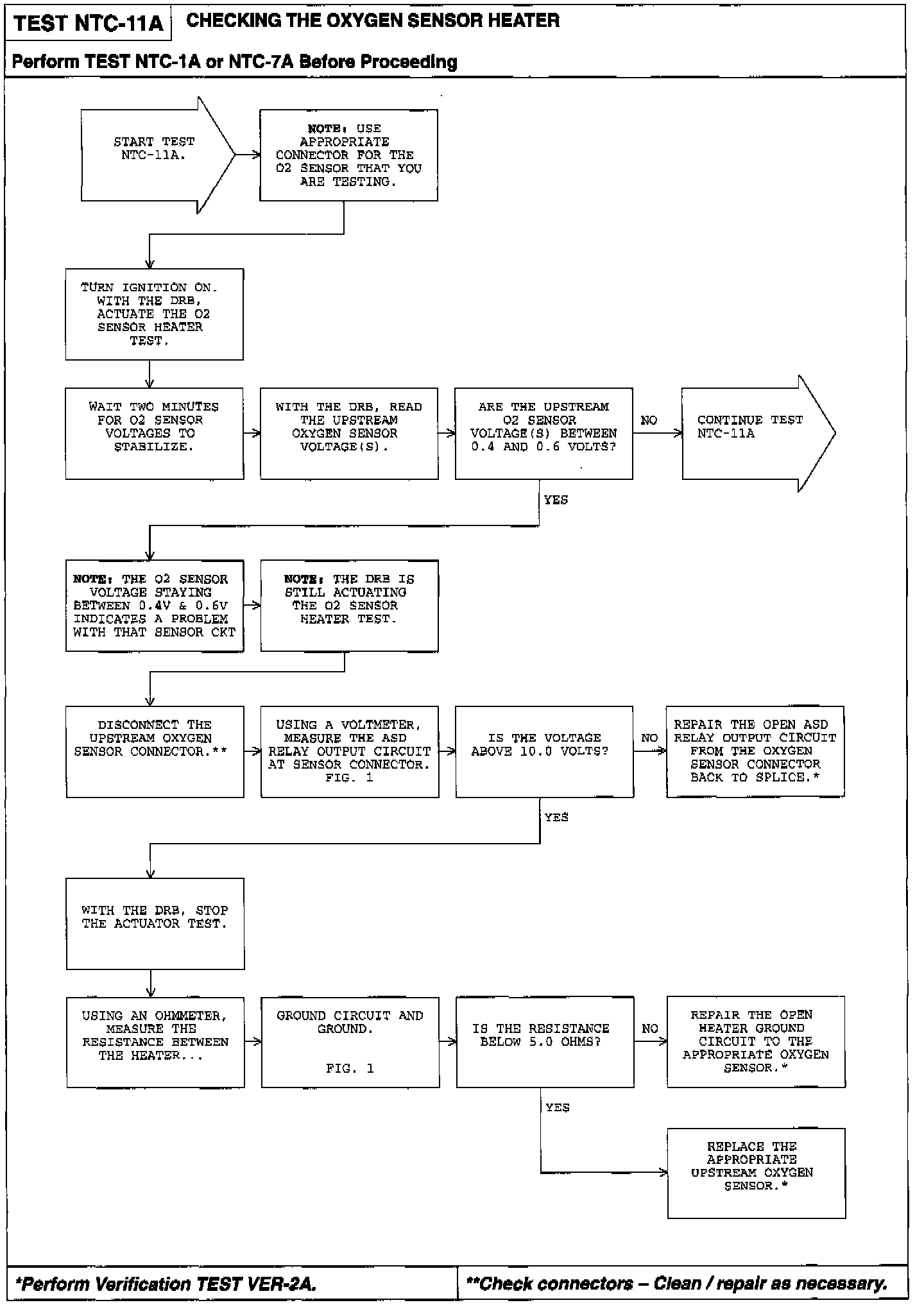

Diagnostic Chart:
Related Image:
Diagnostic Chart:
