TC-59A Knock Sensor Circuit

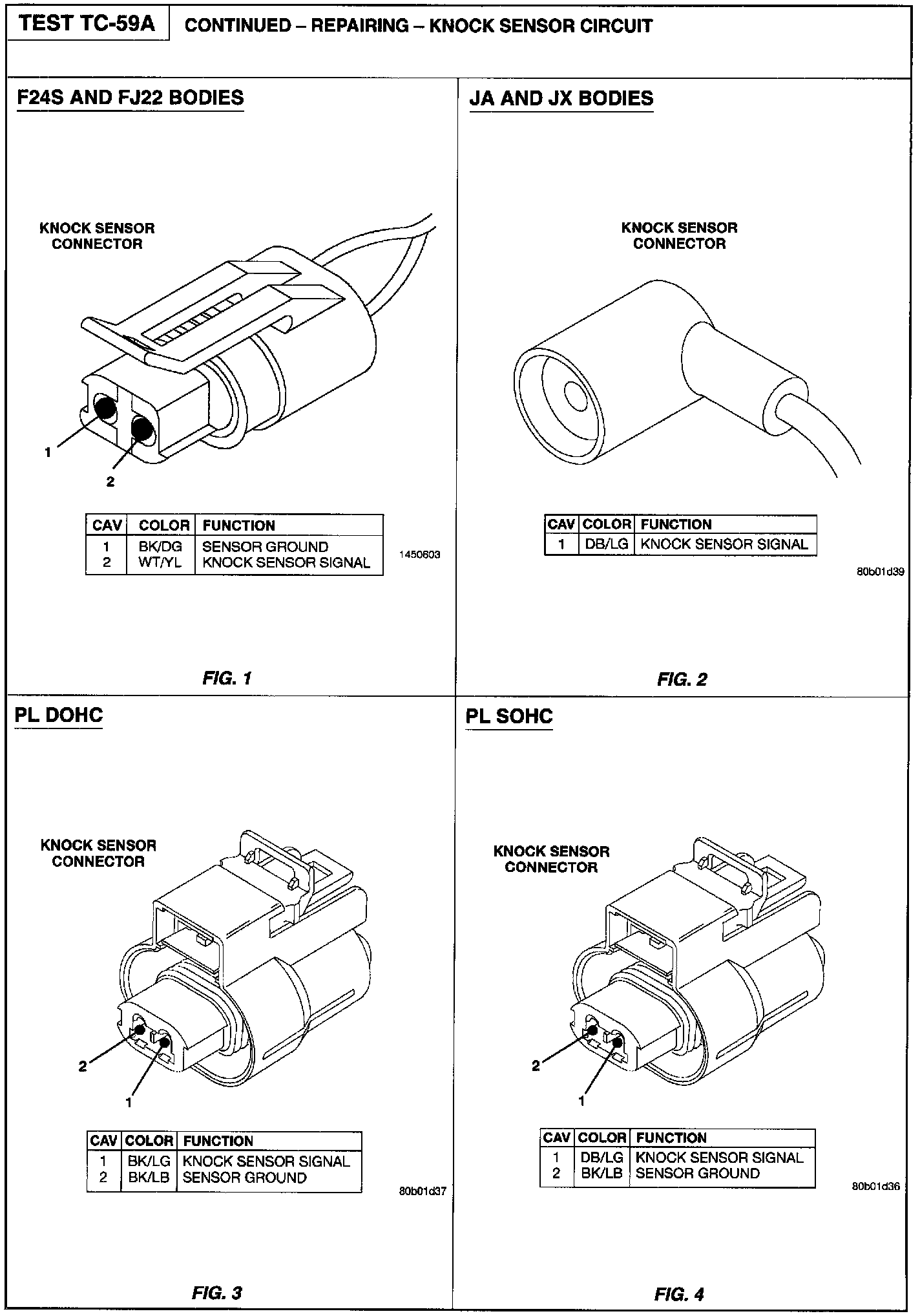

Related Image:

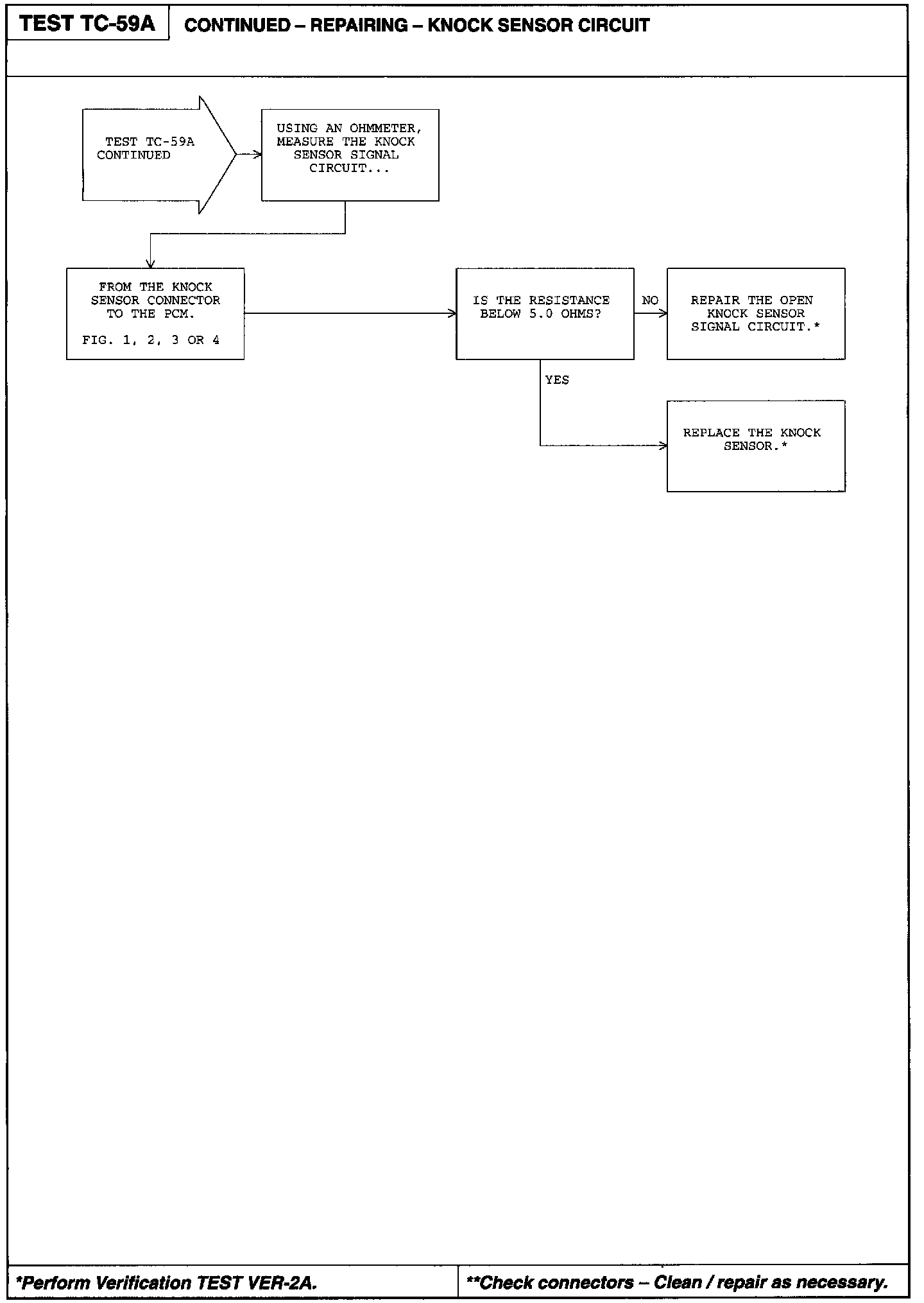

Diagnostic Chart:

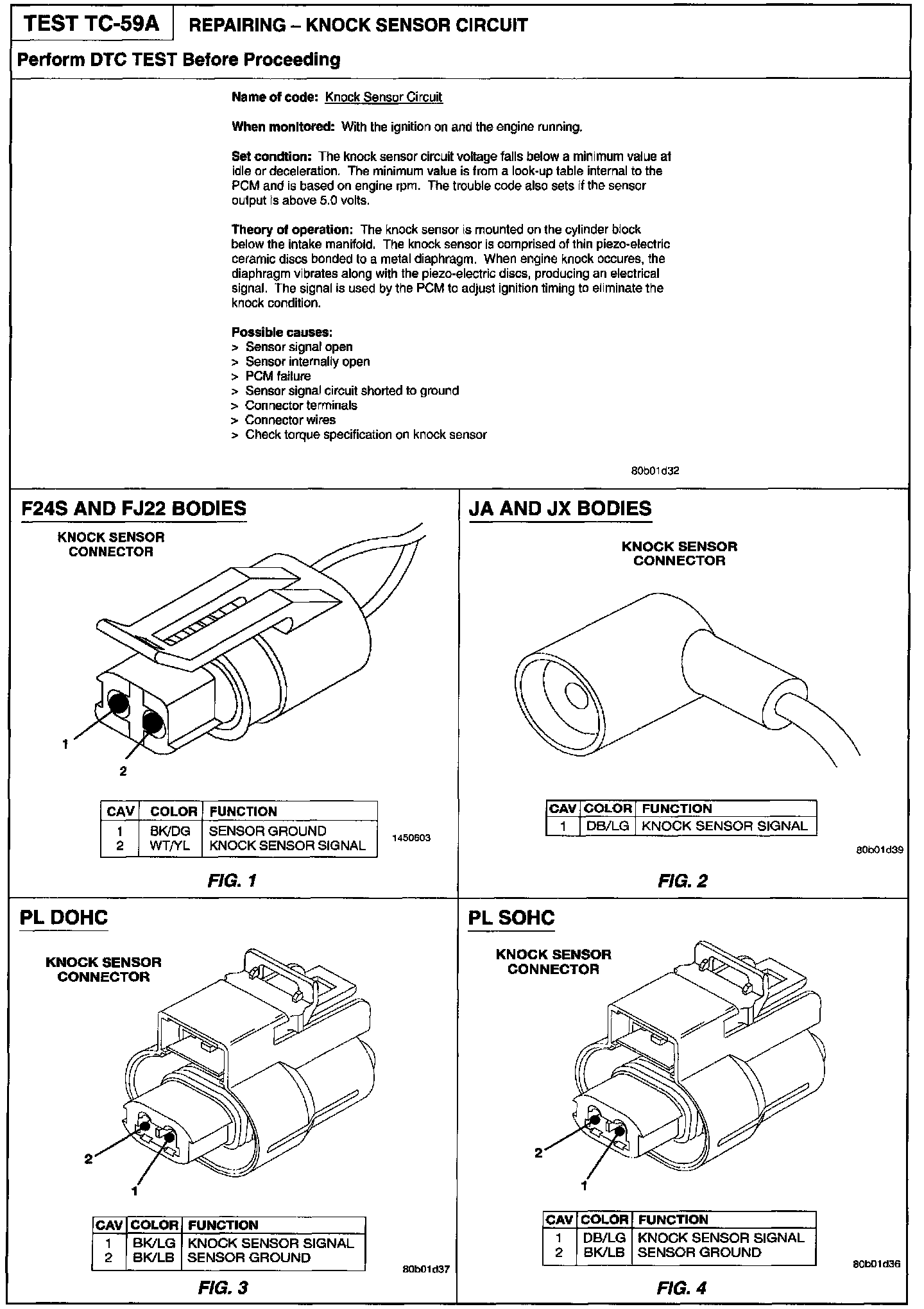

Related Image:

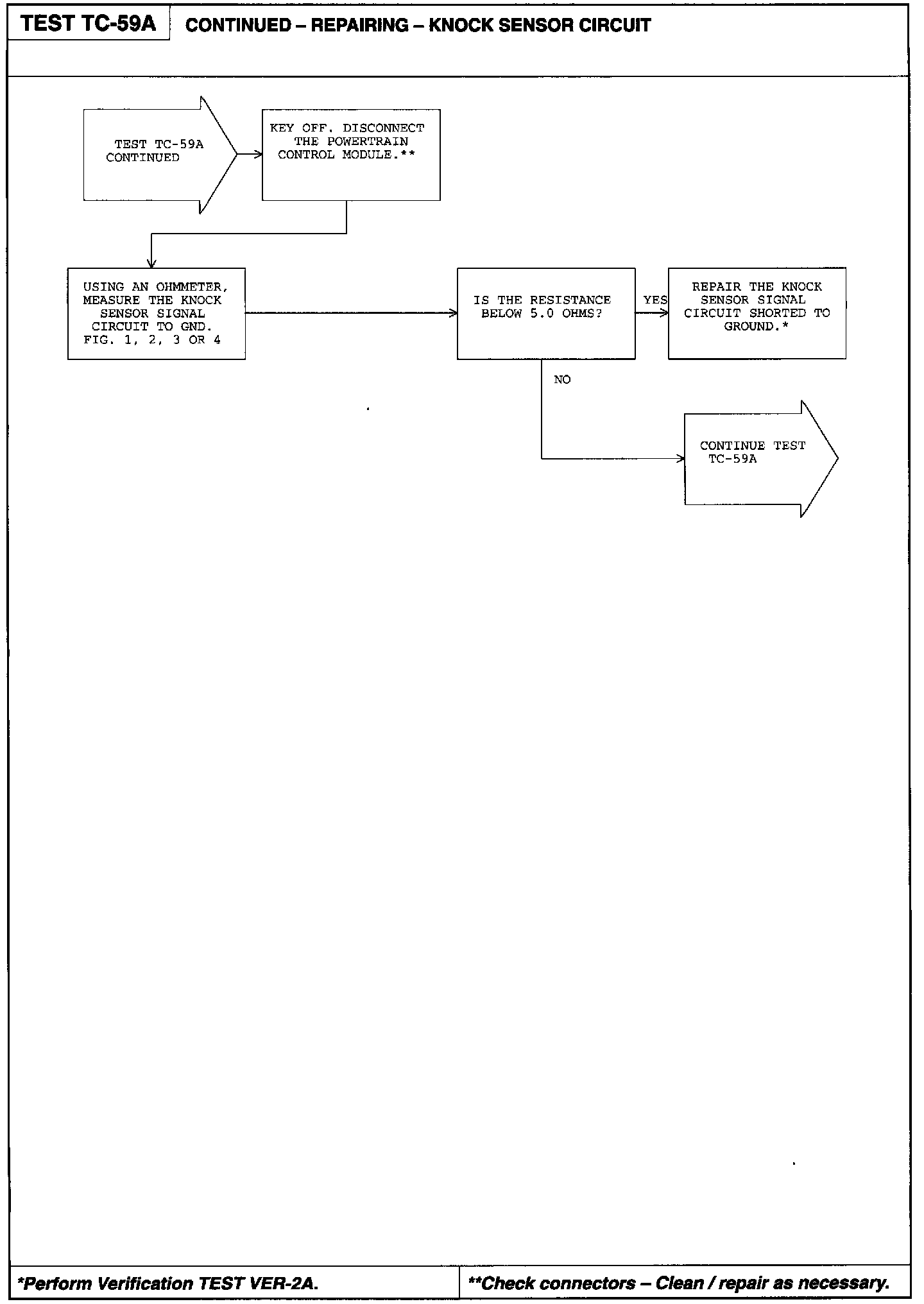

Diagnostic Chart:

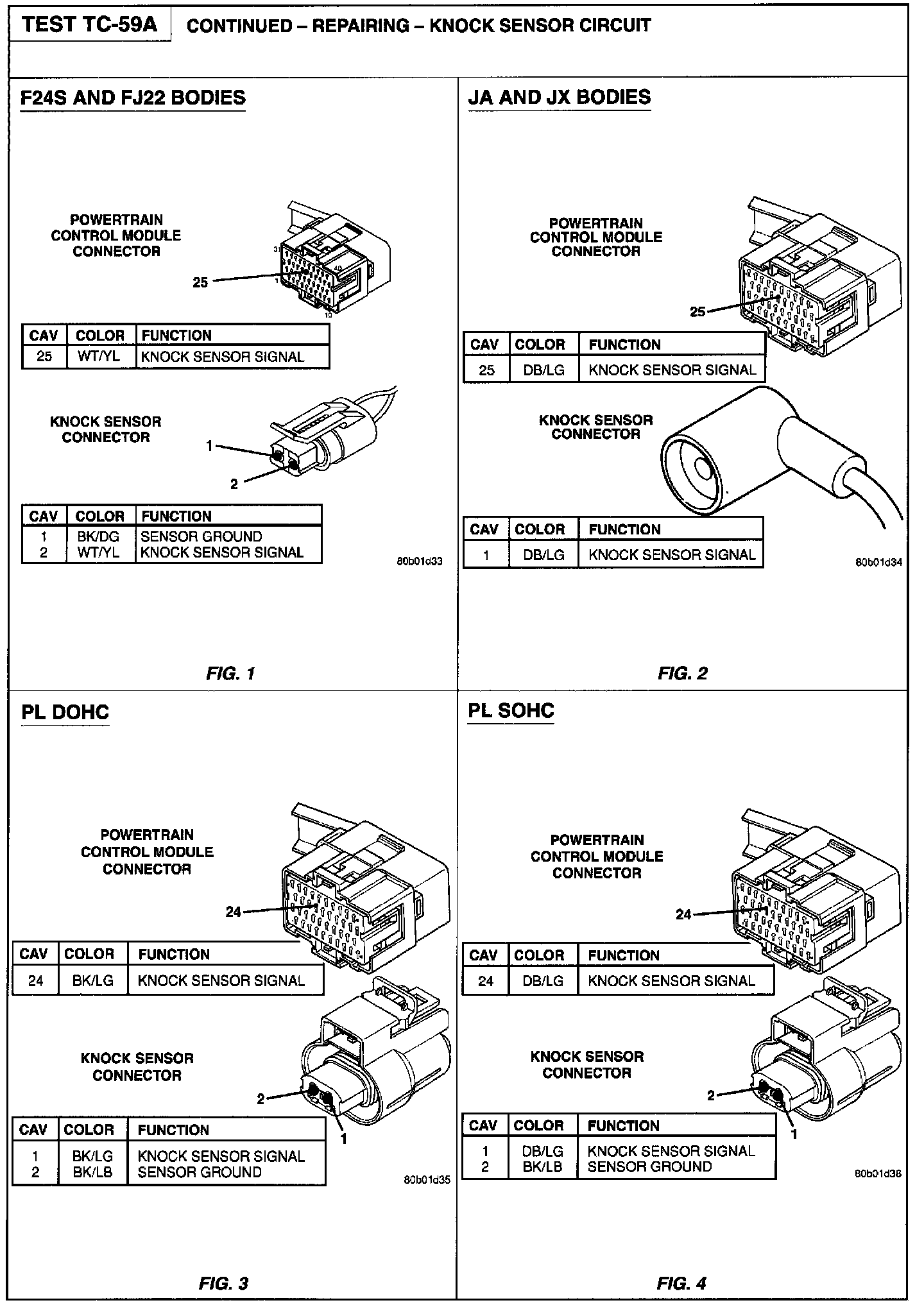

Related Image:

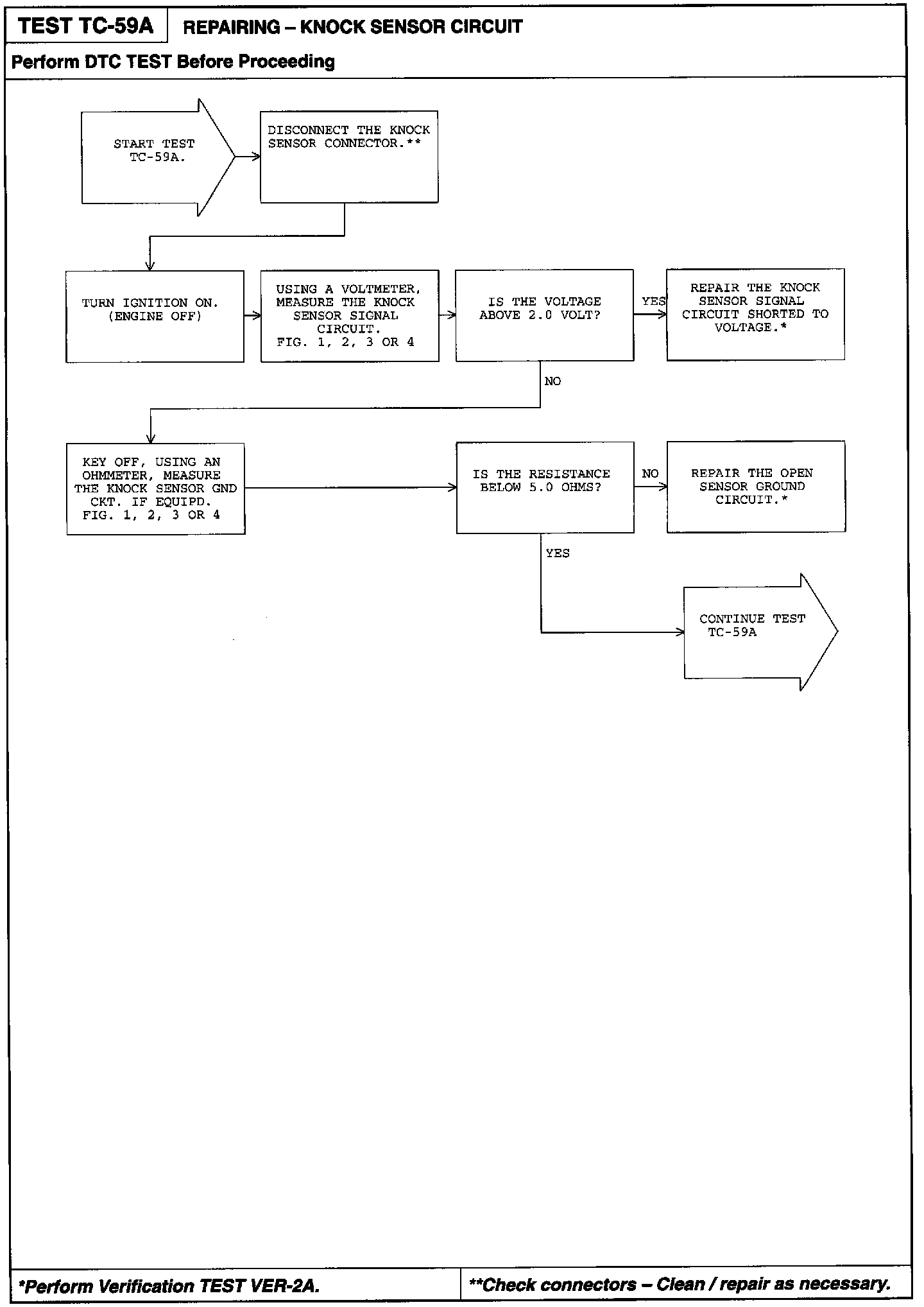

Diagnostic Chart:
