TC-42A Ignition Coil #2 Primary Circuit

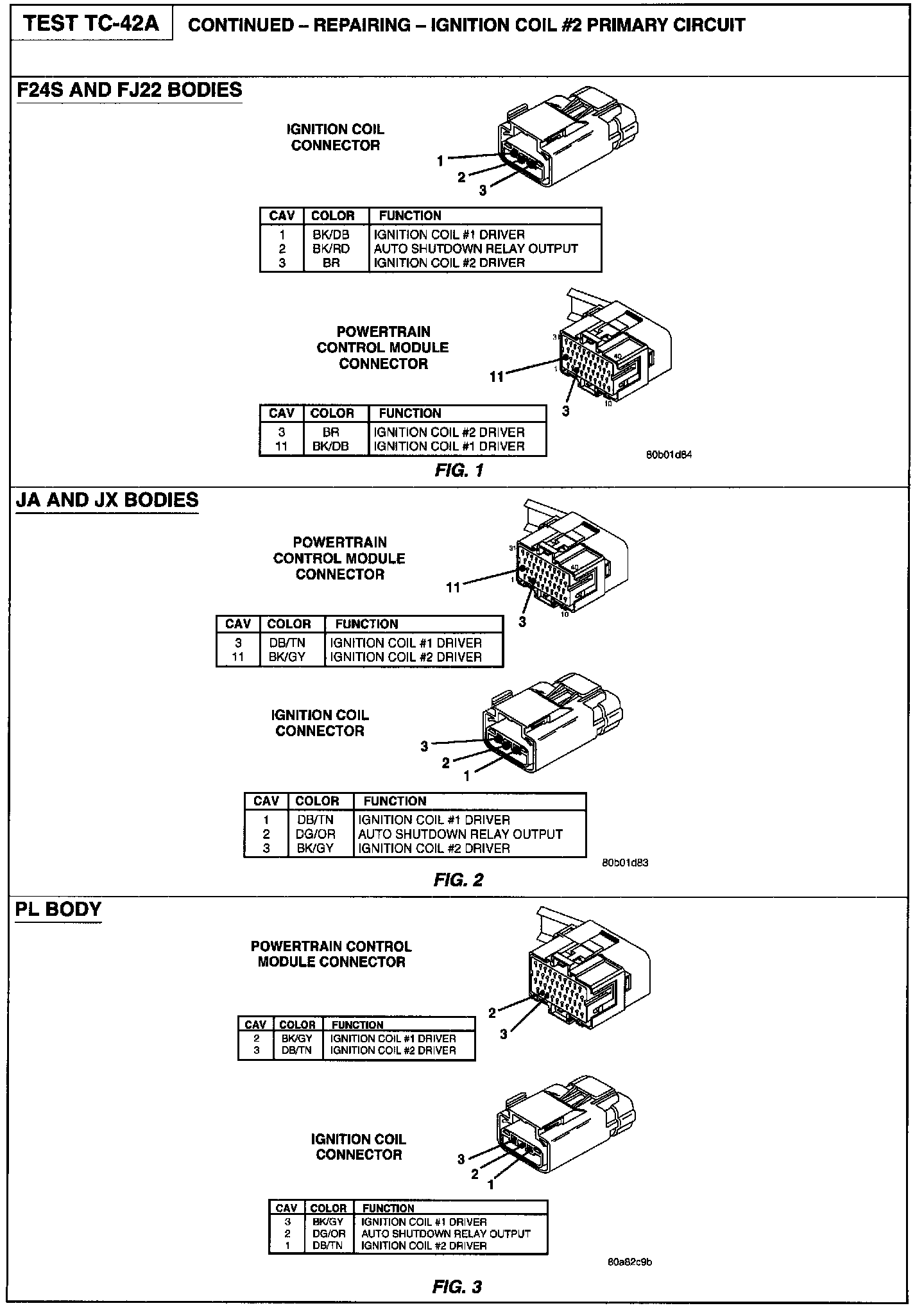

Related Image:

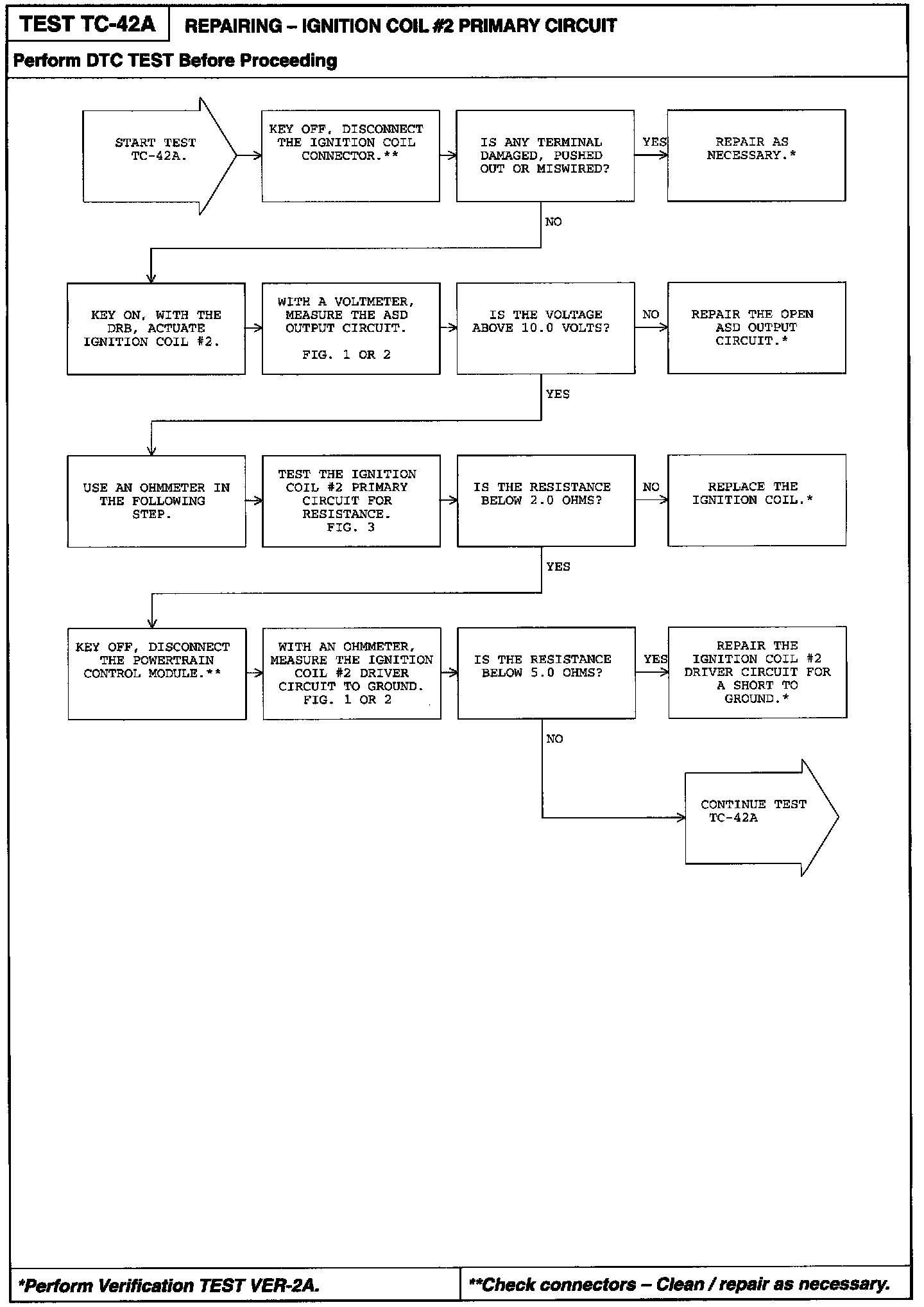

Diagnostic Chart:

Related Image:

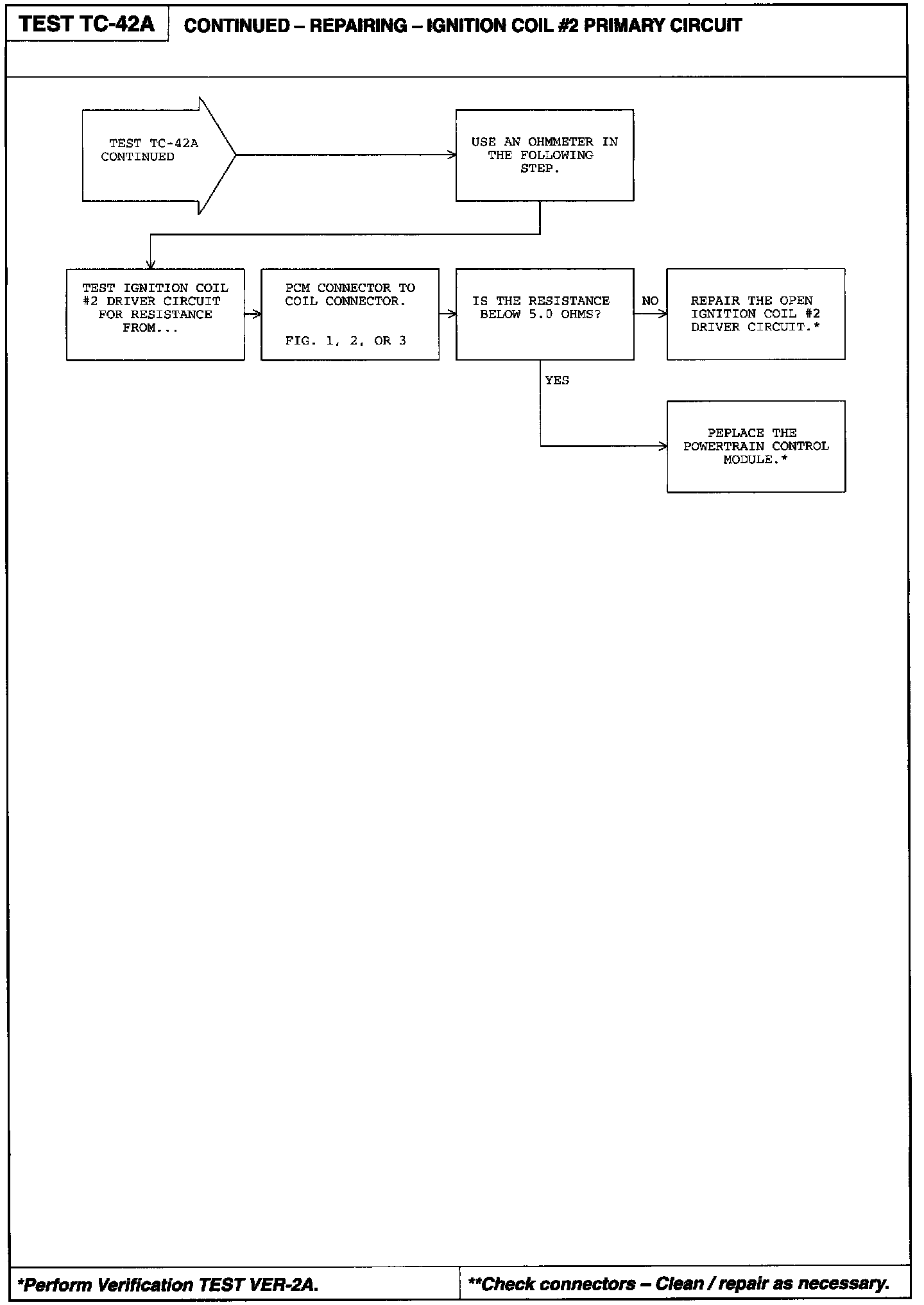

Diagnostic Chart:
