Sebring Convertible V6-2.5L VIN H
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Trouble Code (TC) Tests
>>
TC-40C No Crank Reference Signal At PCM
TC-40C No Crank Reference Signal At PCM

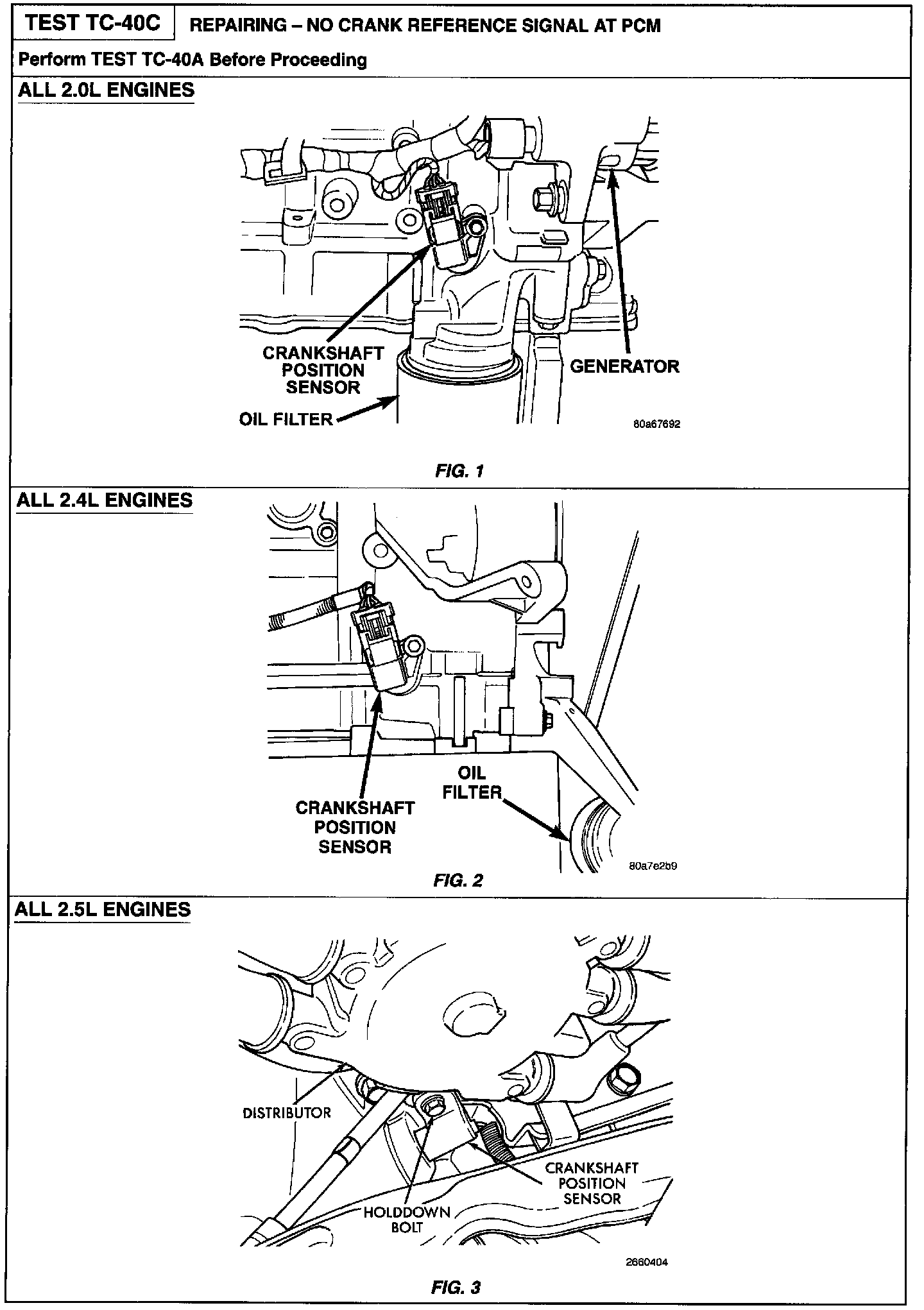

Related Image:

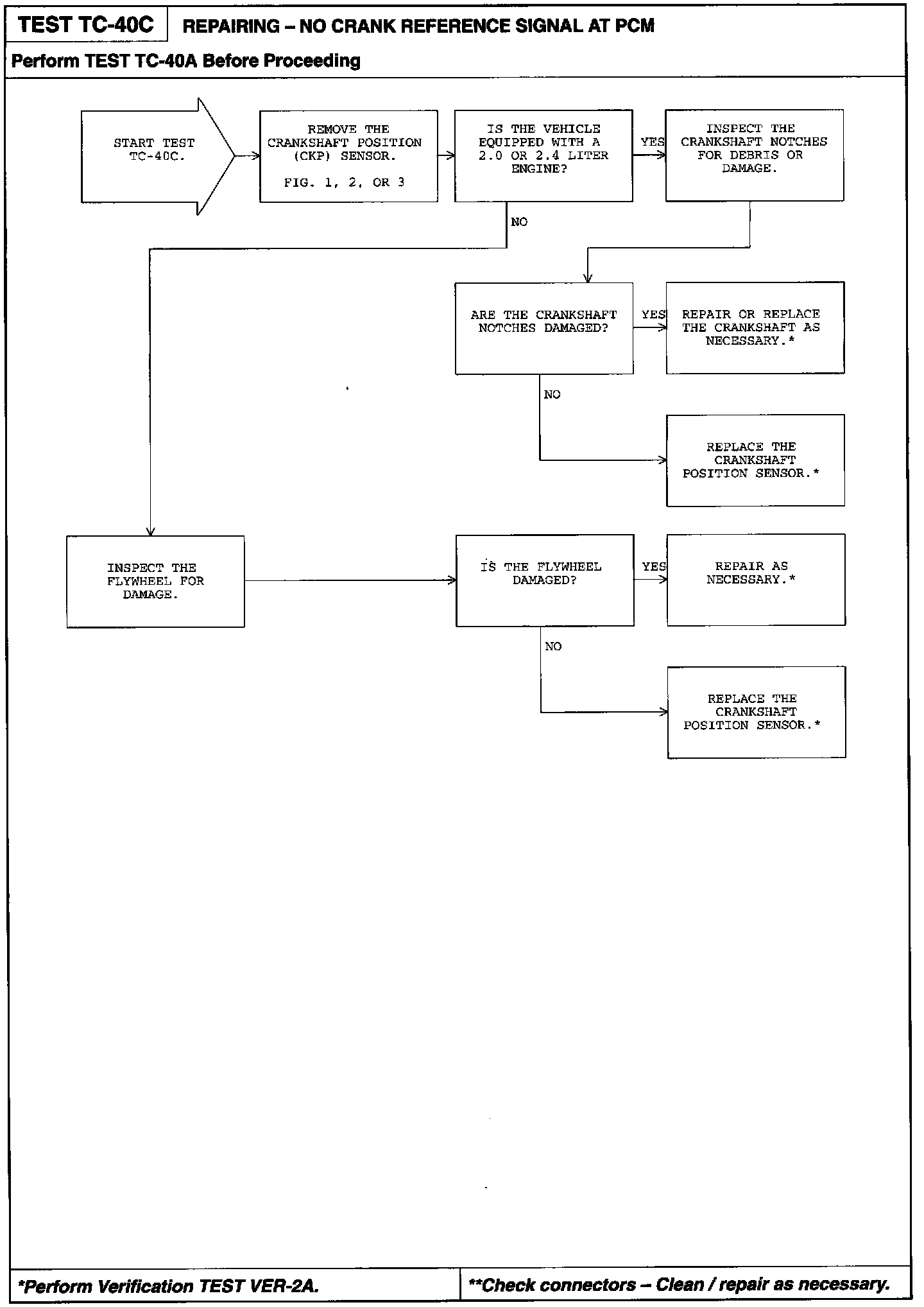

Diagnostic Chart:
