TC-40A No Crank Reference Signal At PCM
TC-40A No Crank Reference Signal At PCM

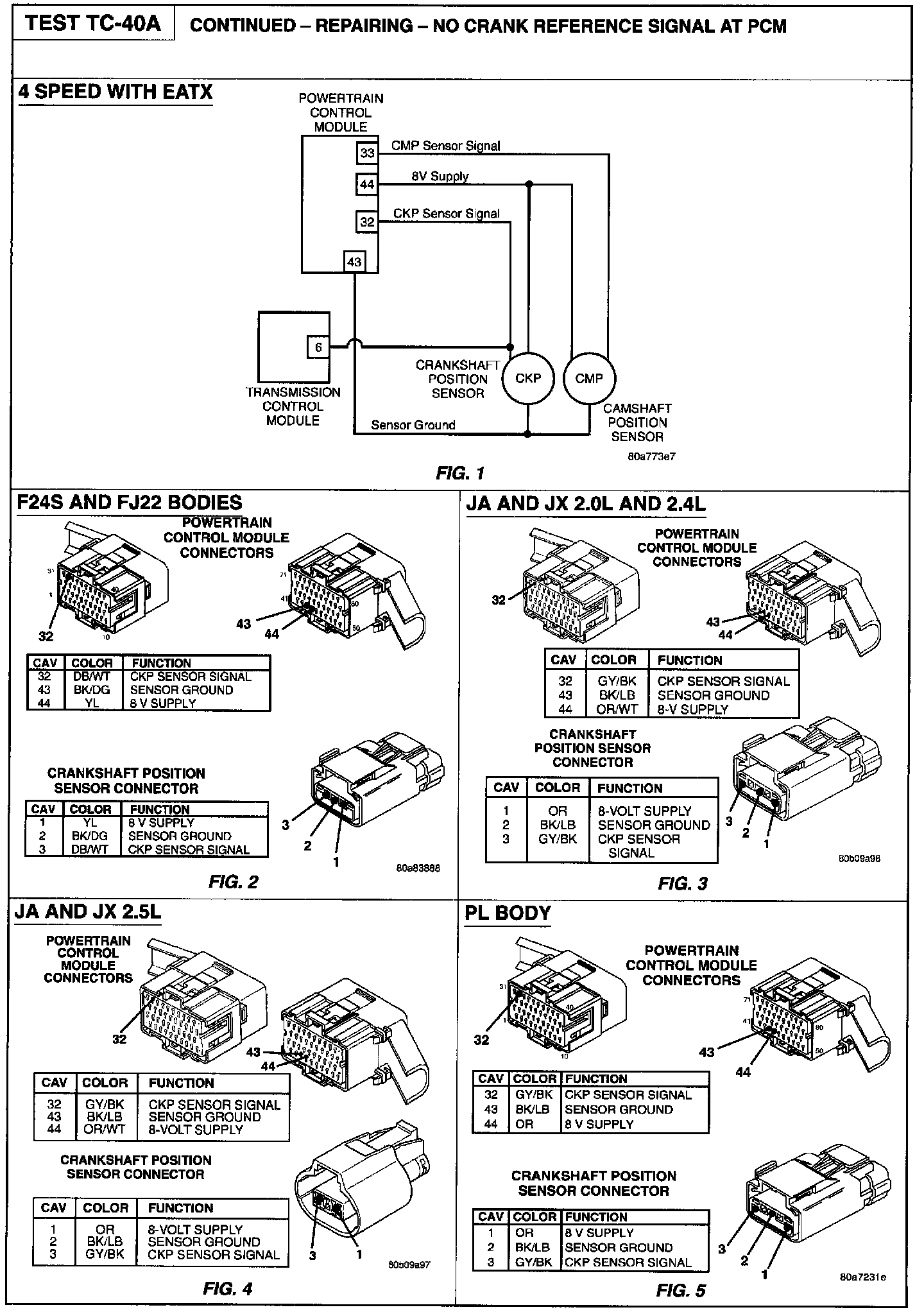

Related Image:

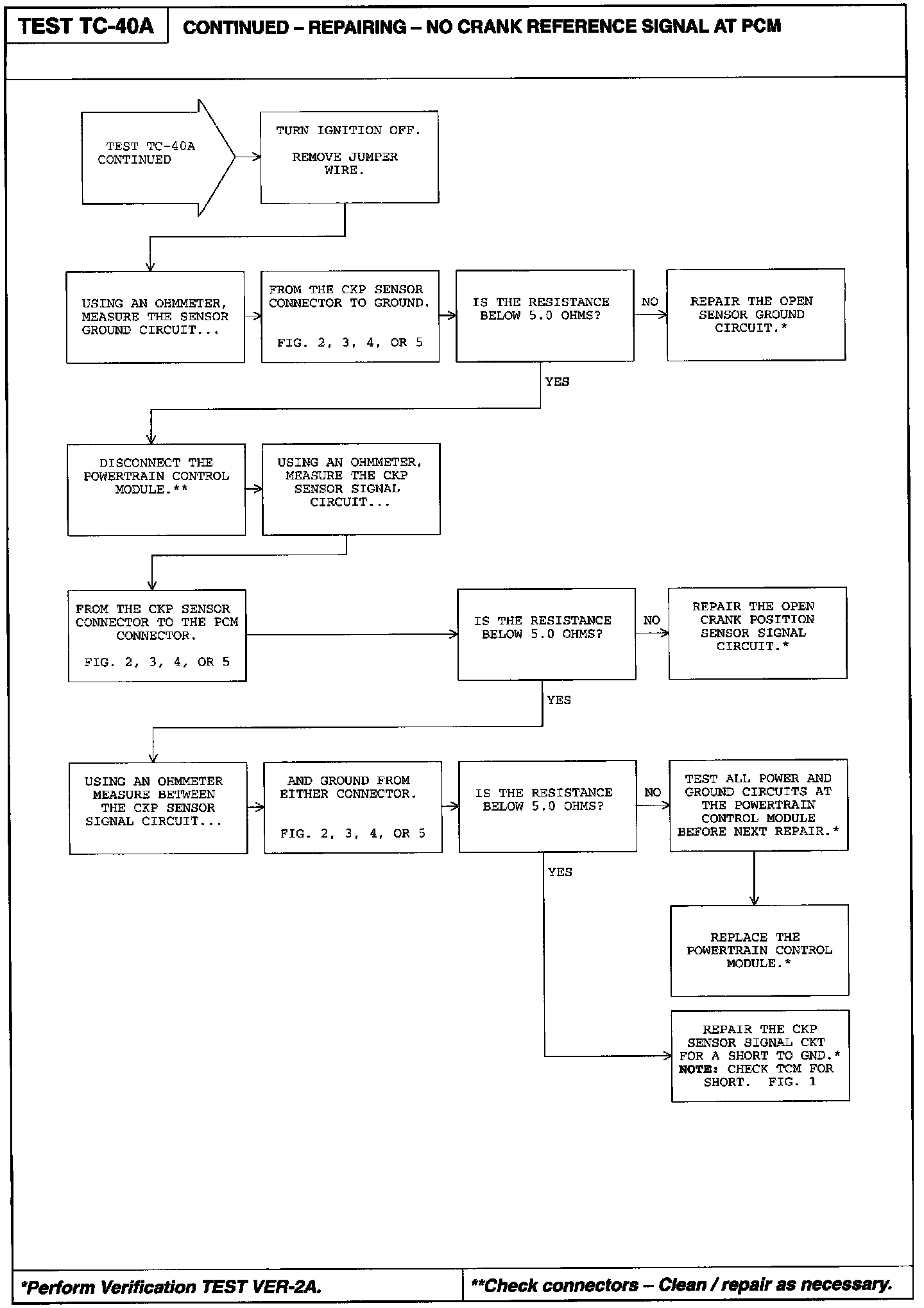

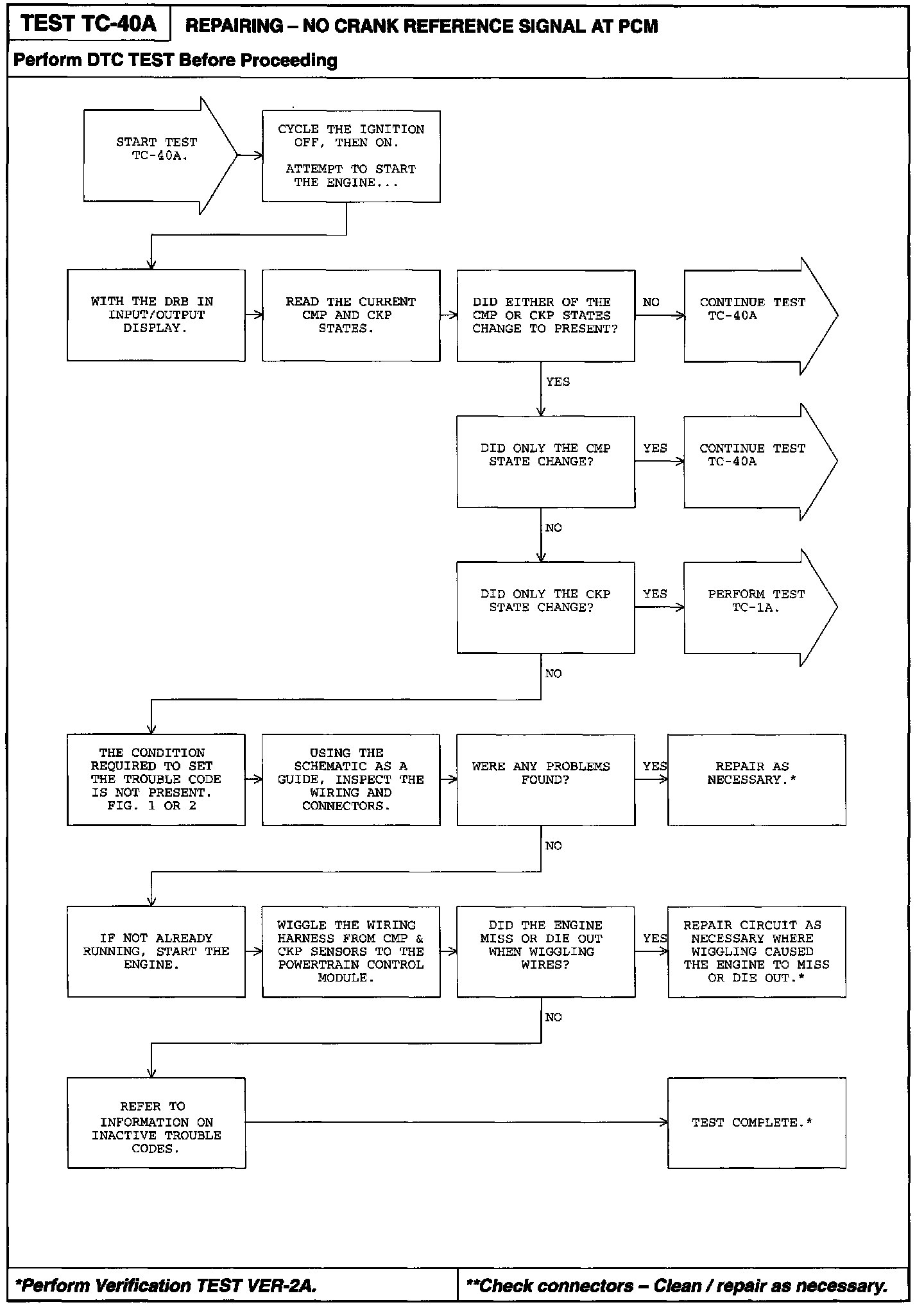

Diagnostic Chart:
Related Image:

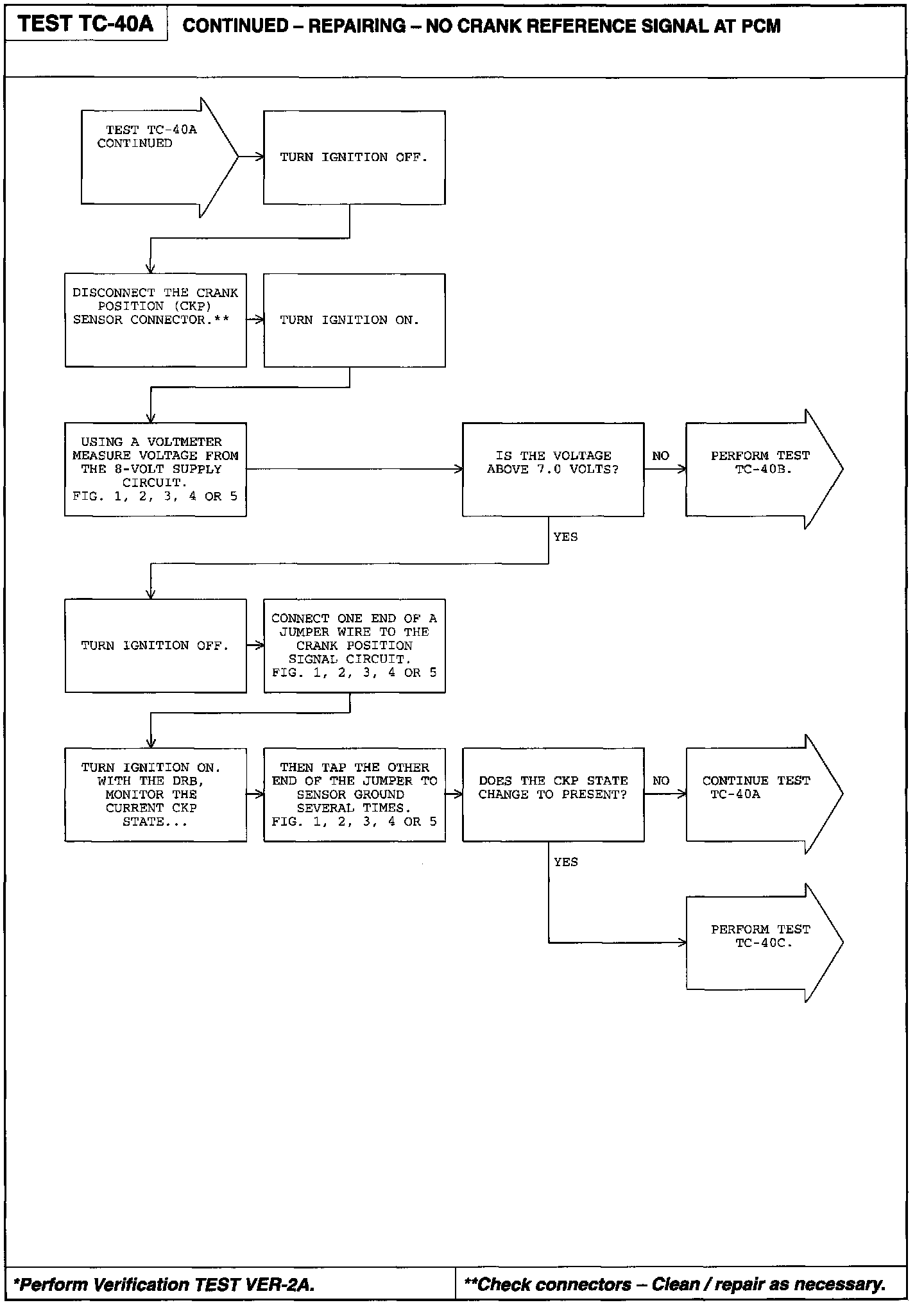

Diagnostic Chart:

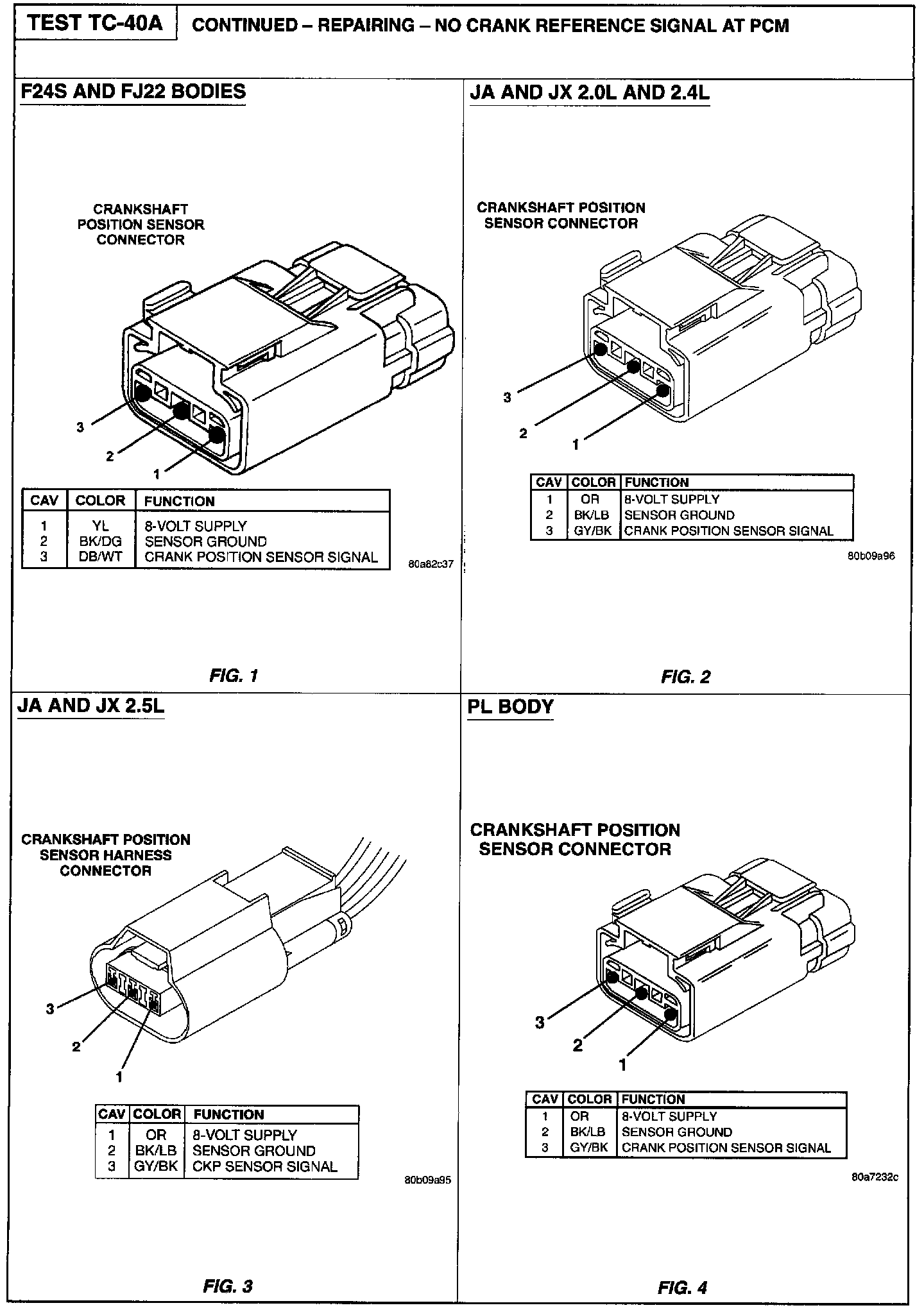

Related Image:
Diagnostic Chart:
