TC-19A Injector #3 Control Circuit
TC-19A Injector #3 Control Circuit

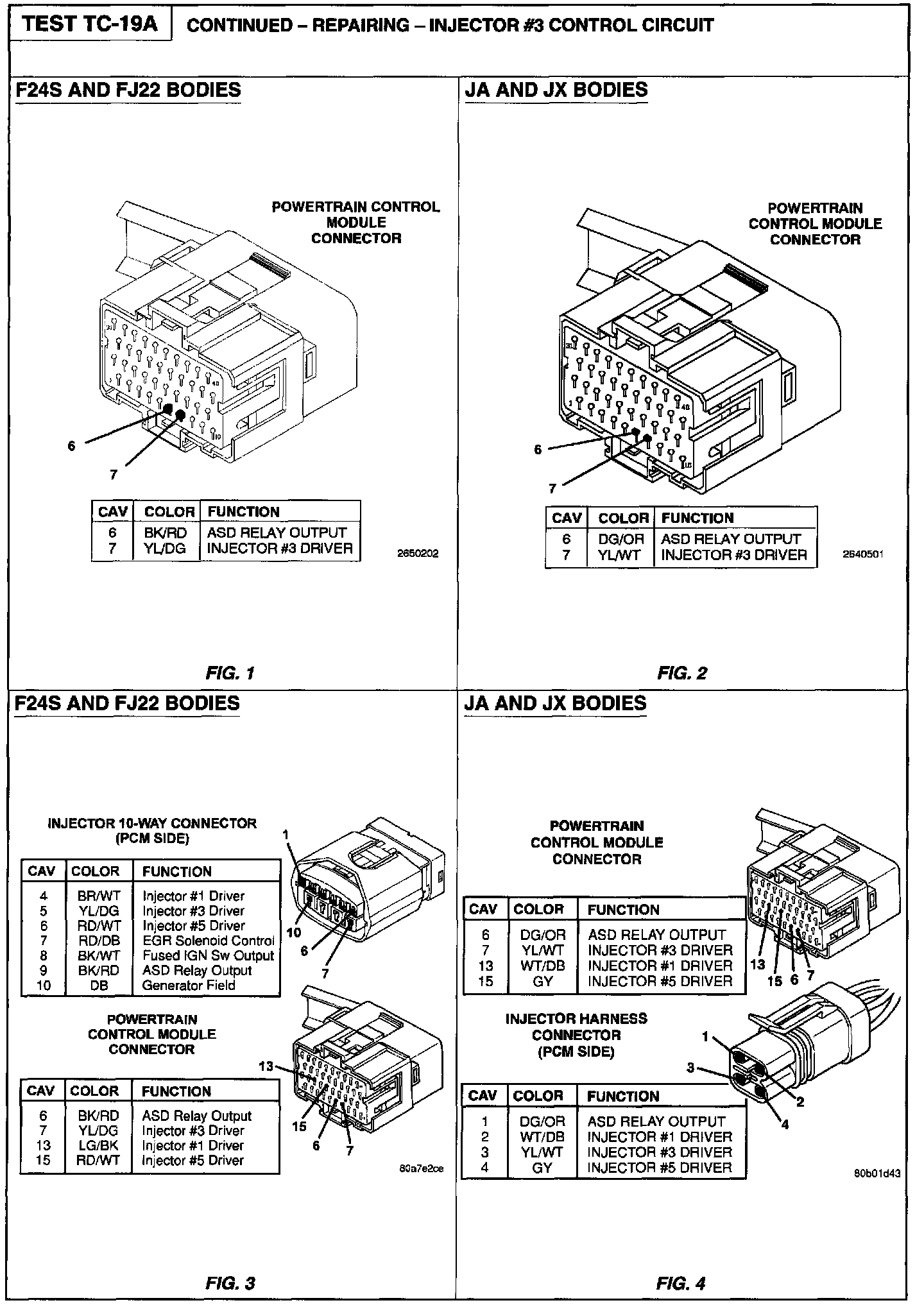

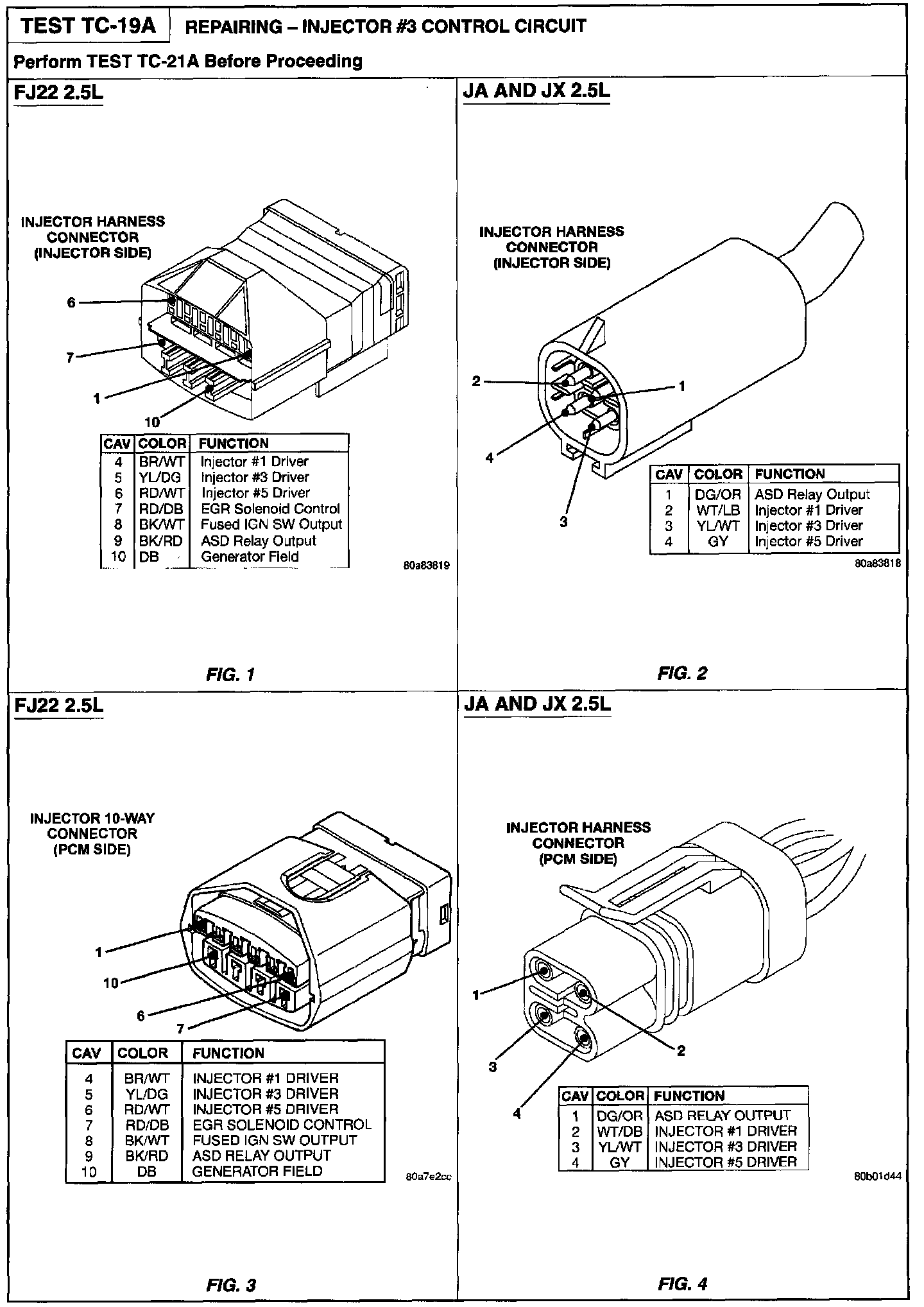

Related Image:

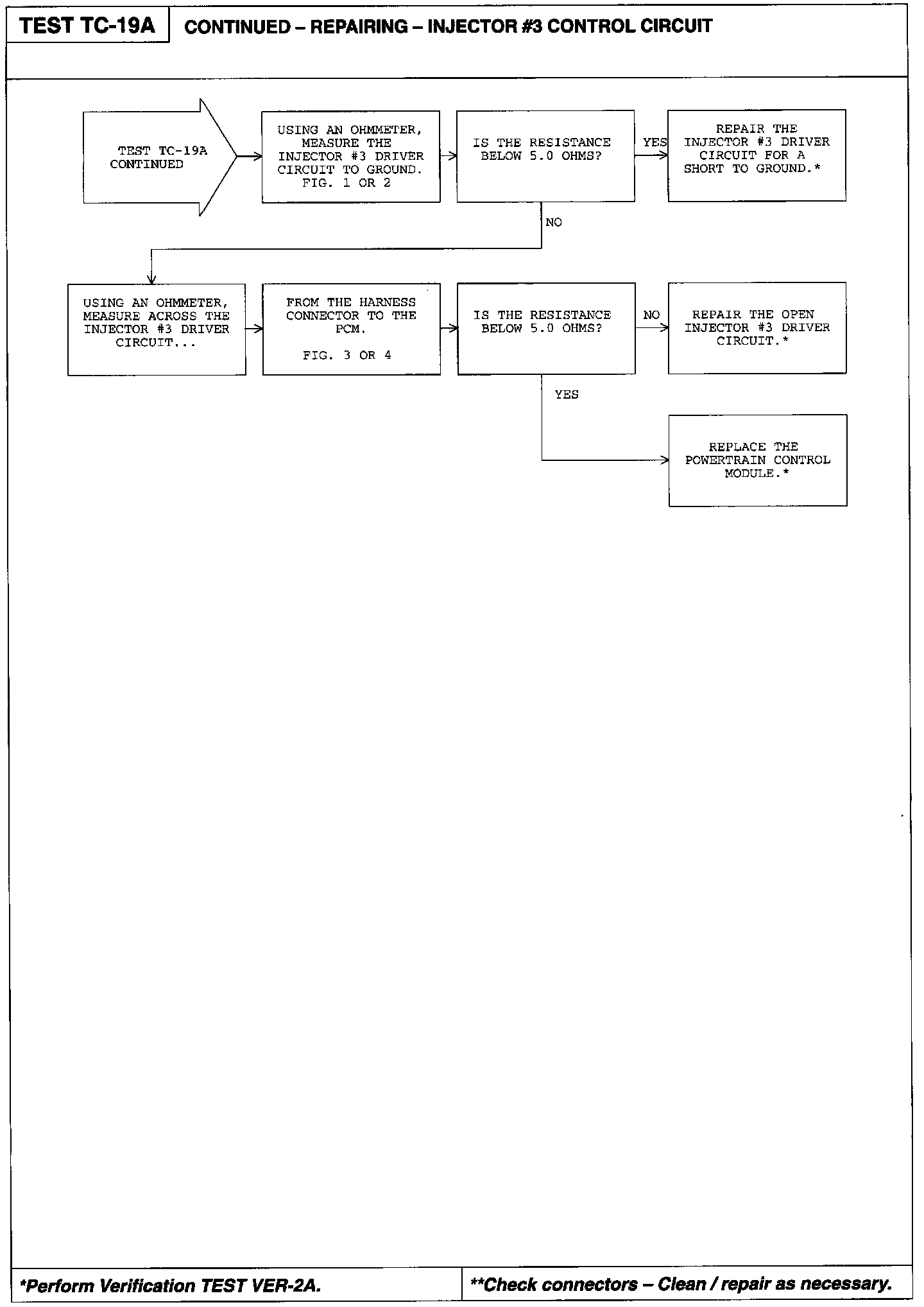

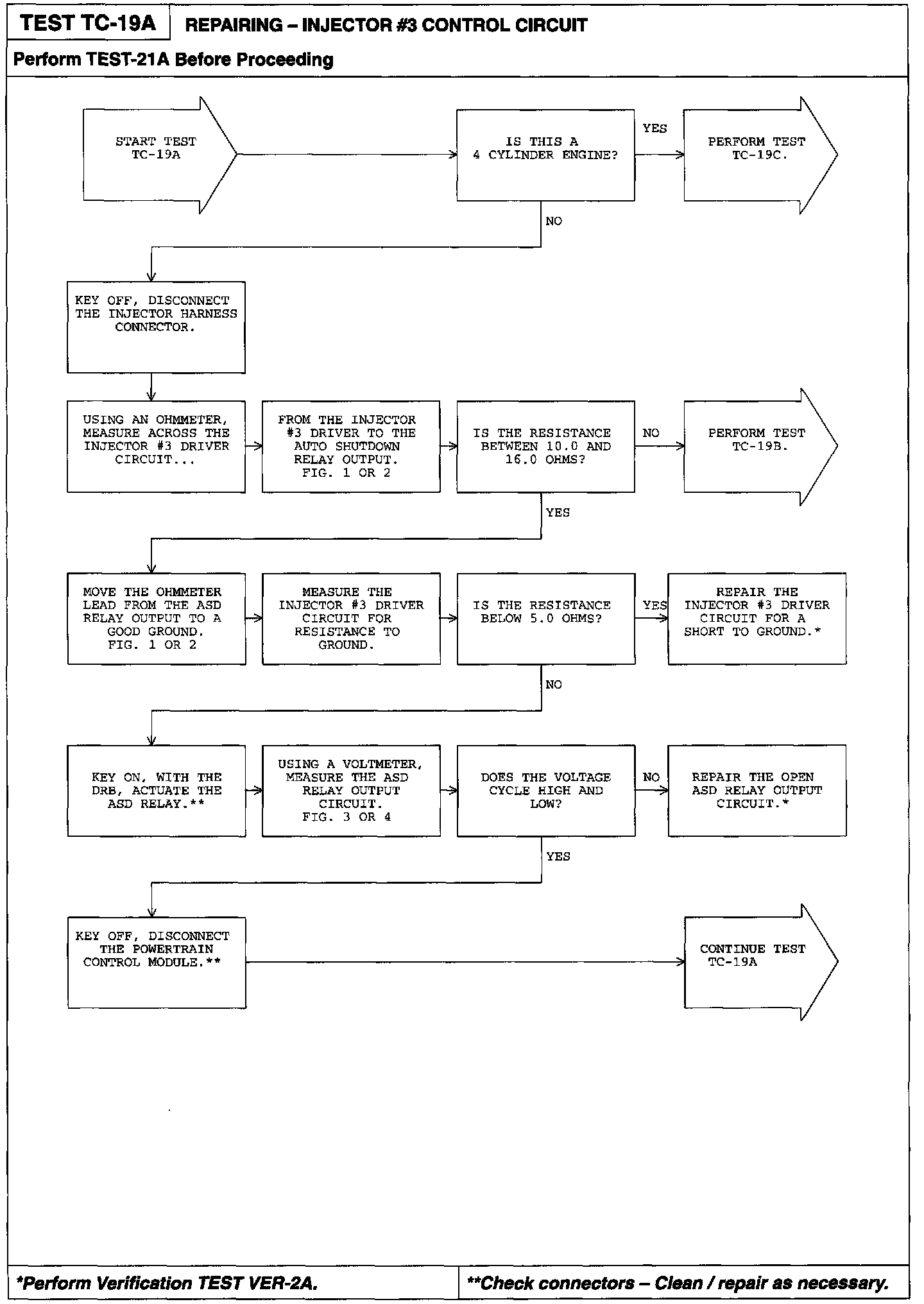

Diagnostic Chart:
Related Image:
Diagnostic Chart:
