TC-197A High Speed Radiator Fan Ground Control Relay Circuit
TC-197A High Speed Radiator Fan Ground Control Relay Circuit

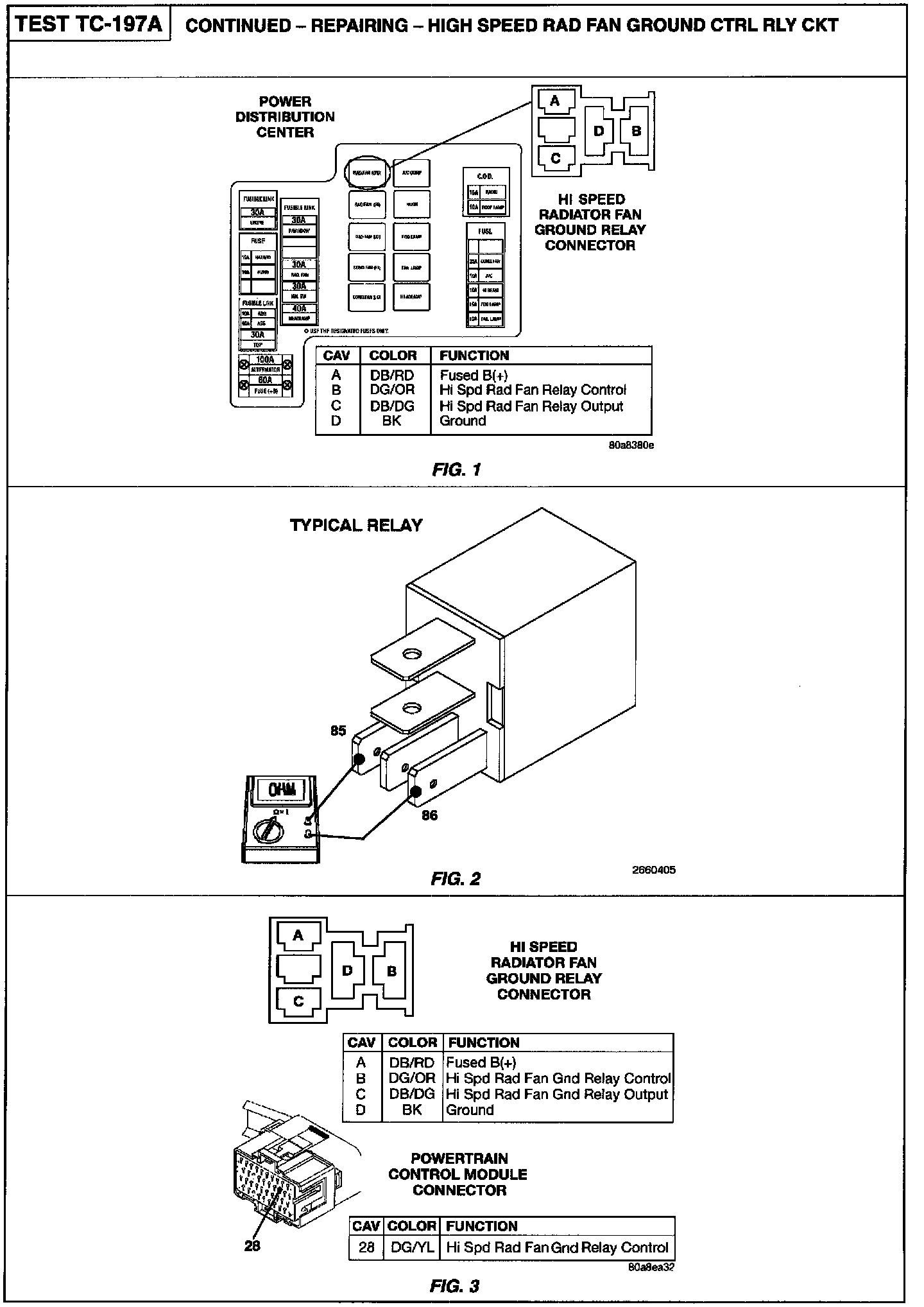

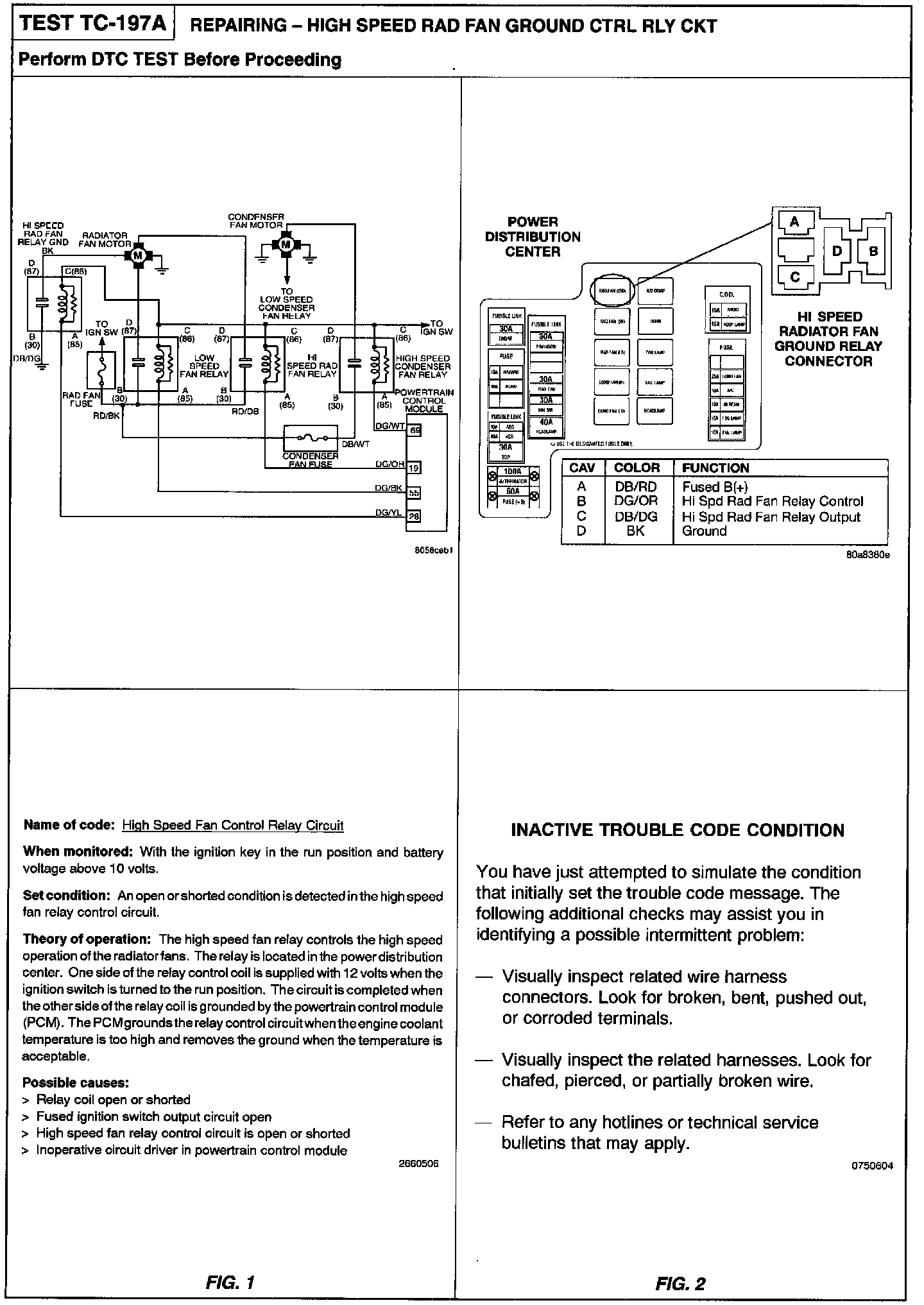

Related Image:

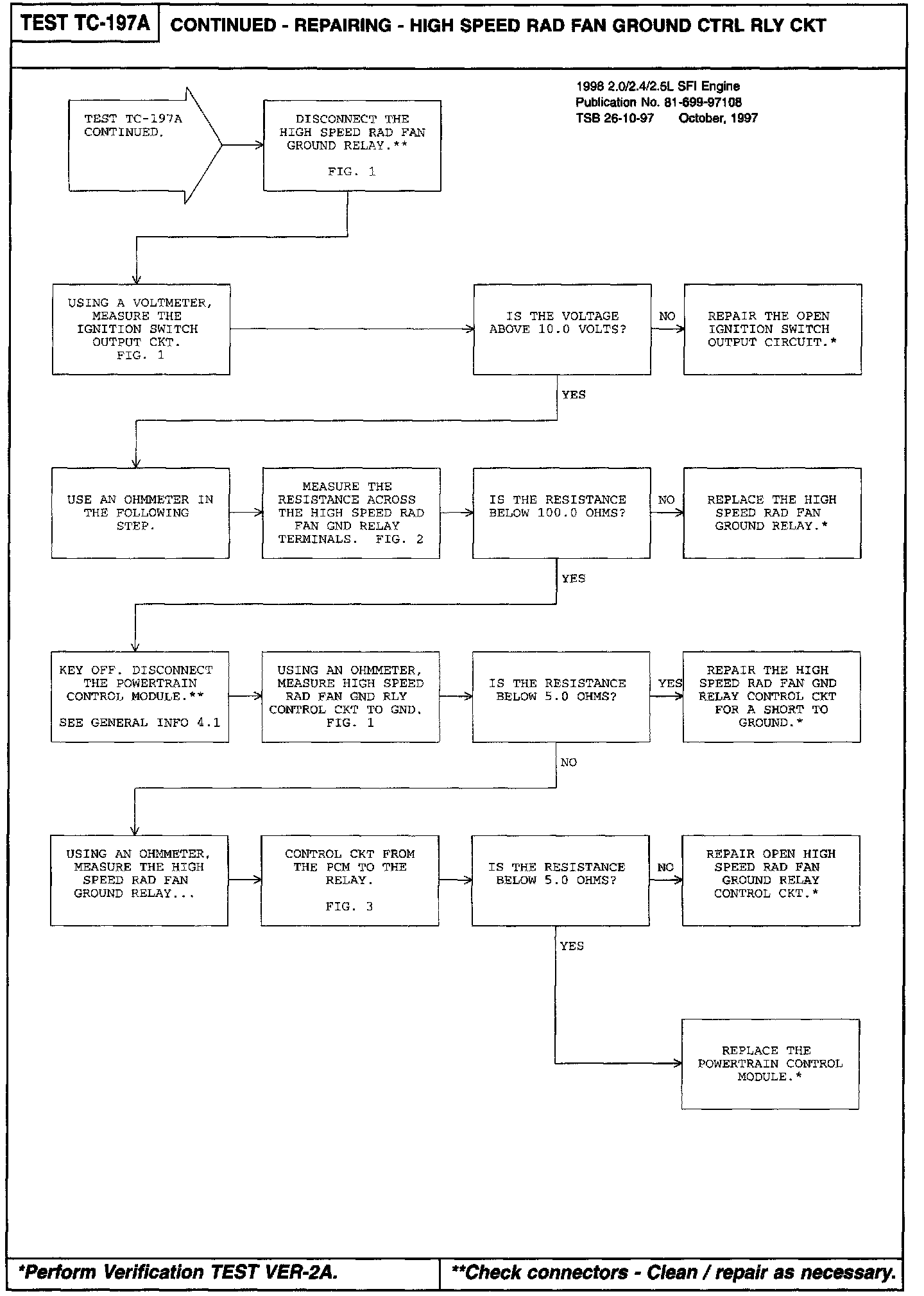

Diagnostic Chart:
Related Image:

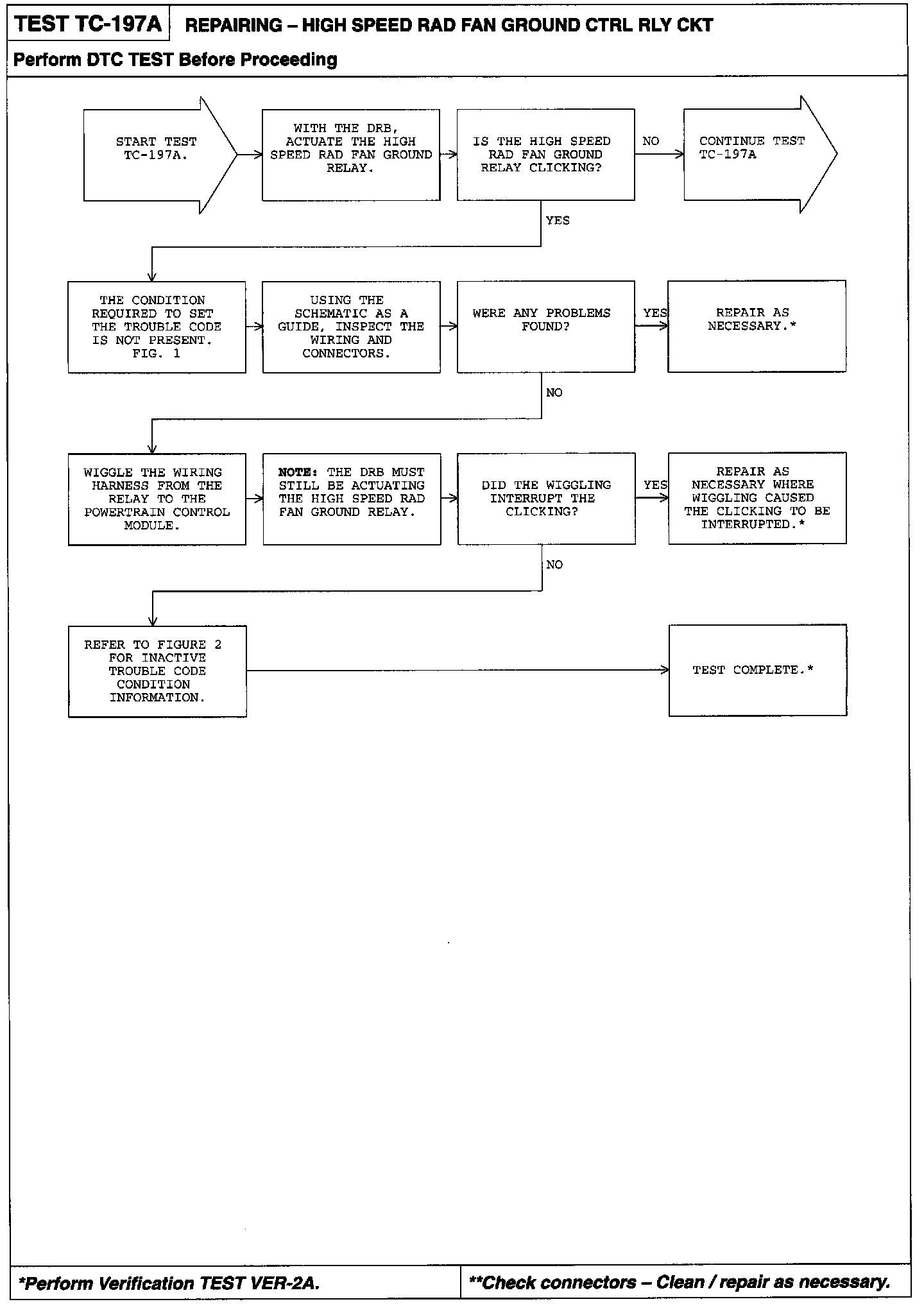

Diagnostic Chart:
