TC-16A A/C Clutch Relay Circuit

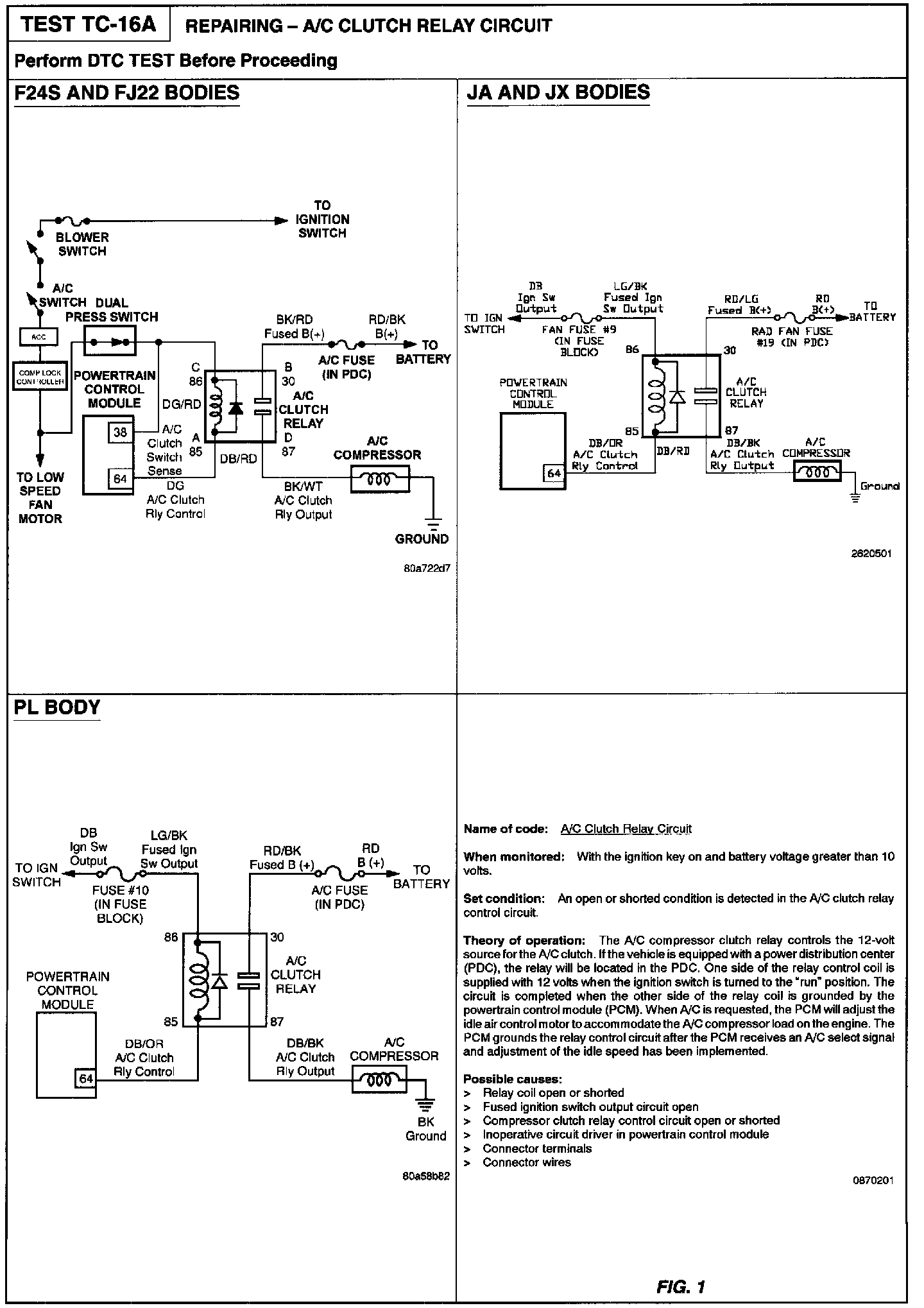

Related Image:

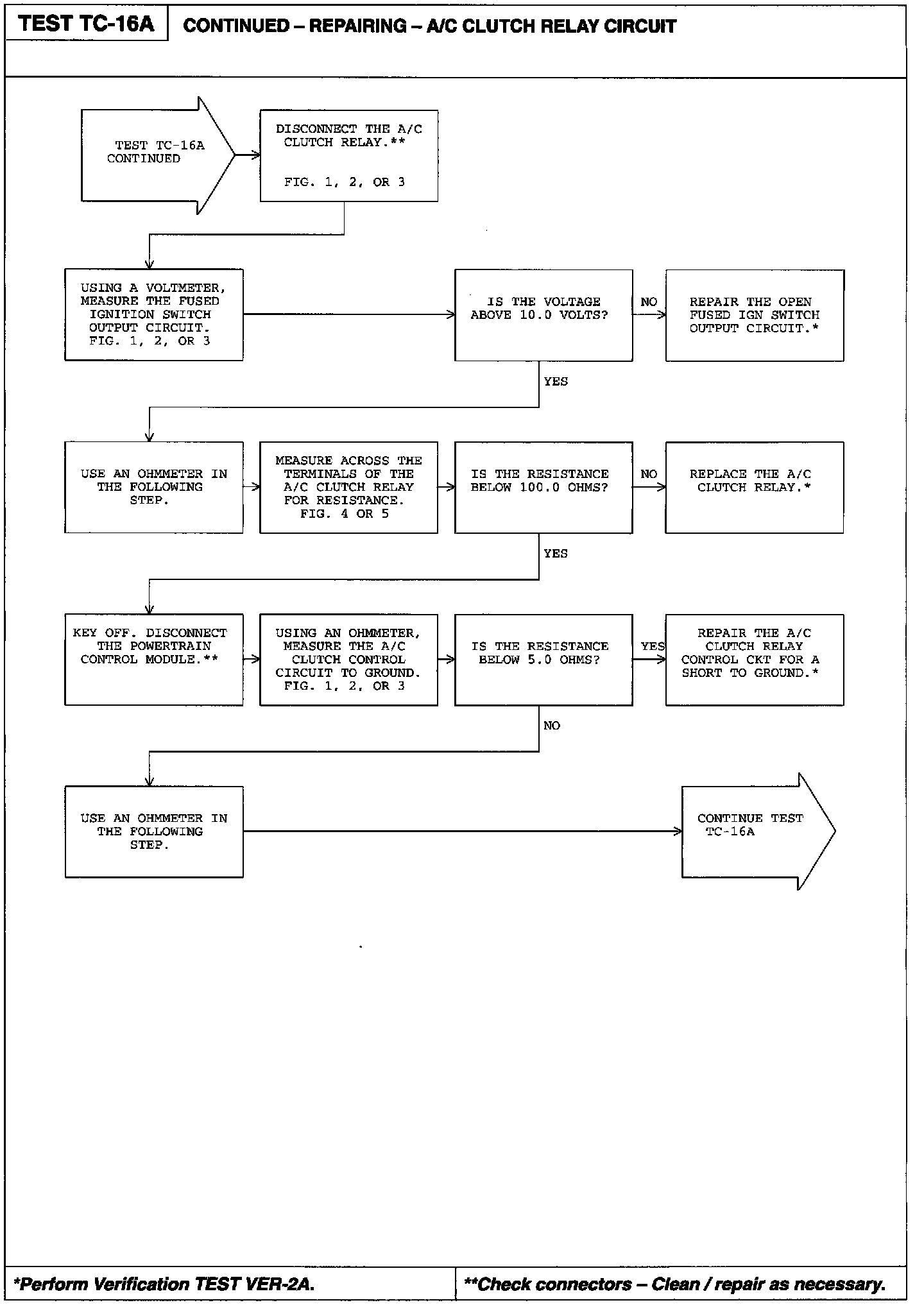

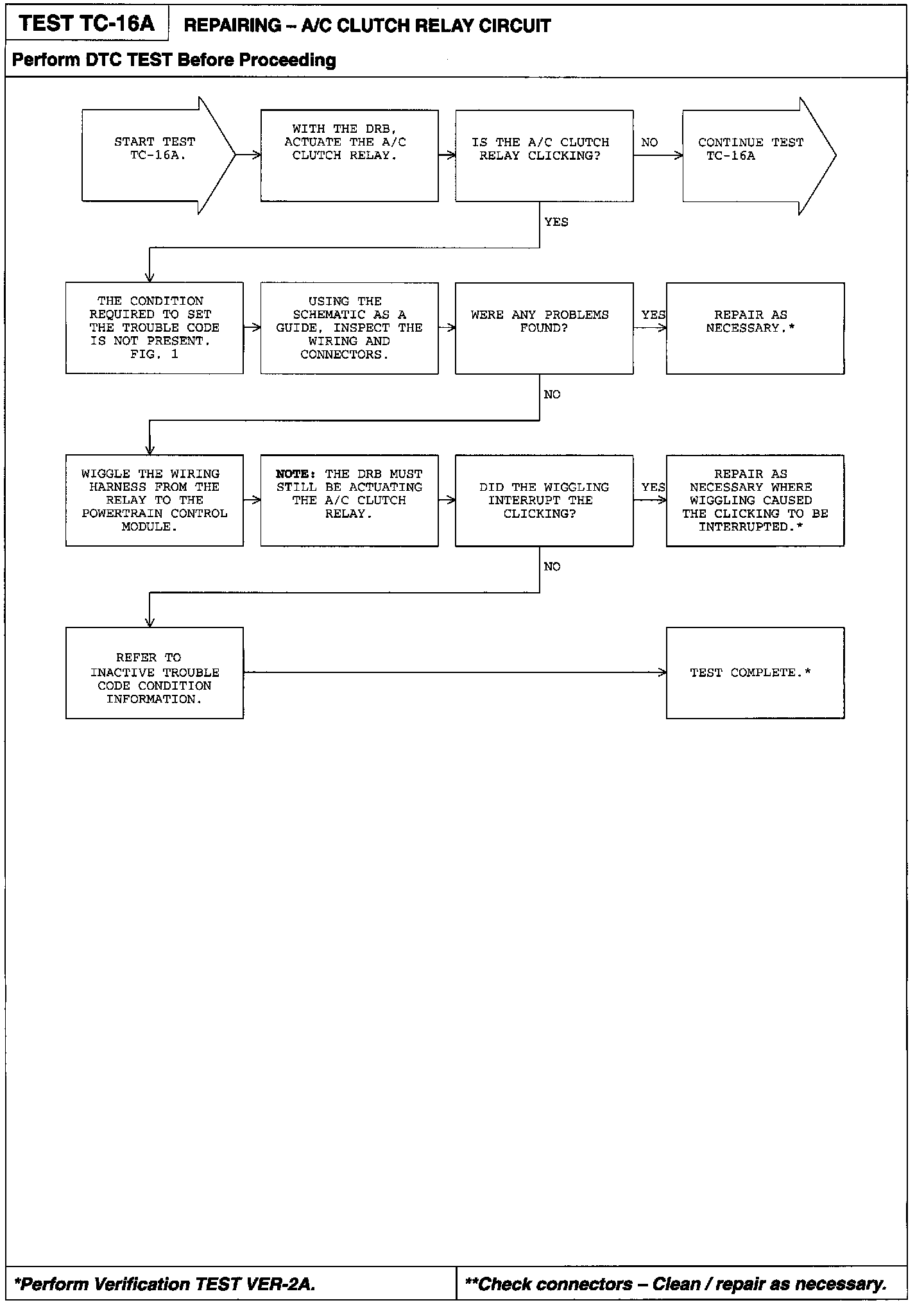

Diagnostic Chart:

Related Image:

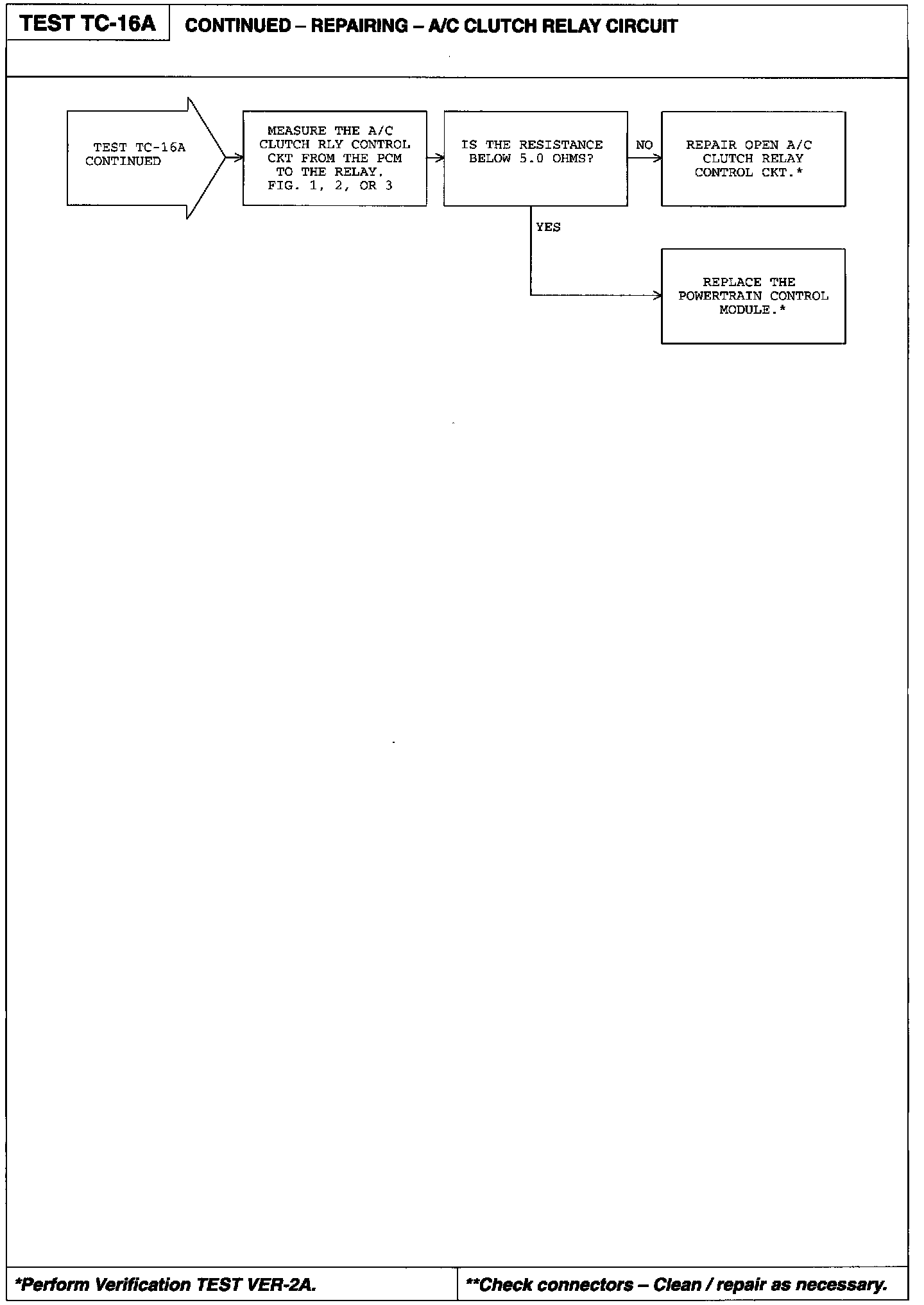

Diagnostic Chart:

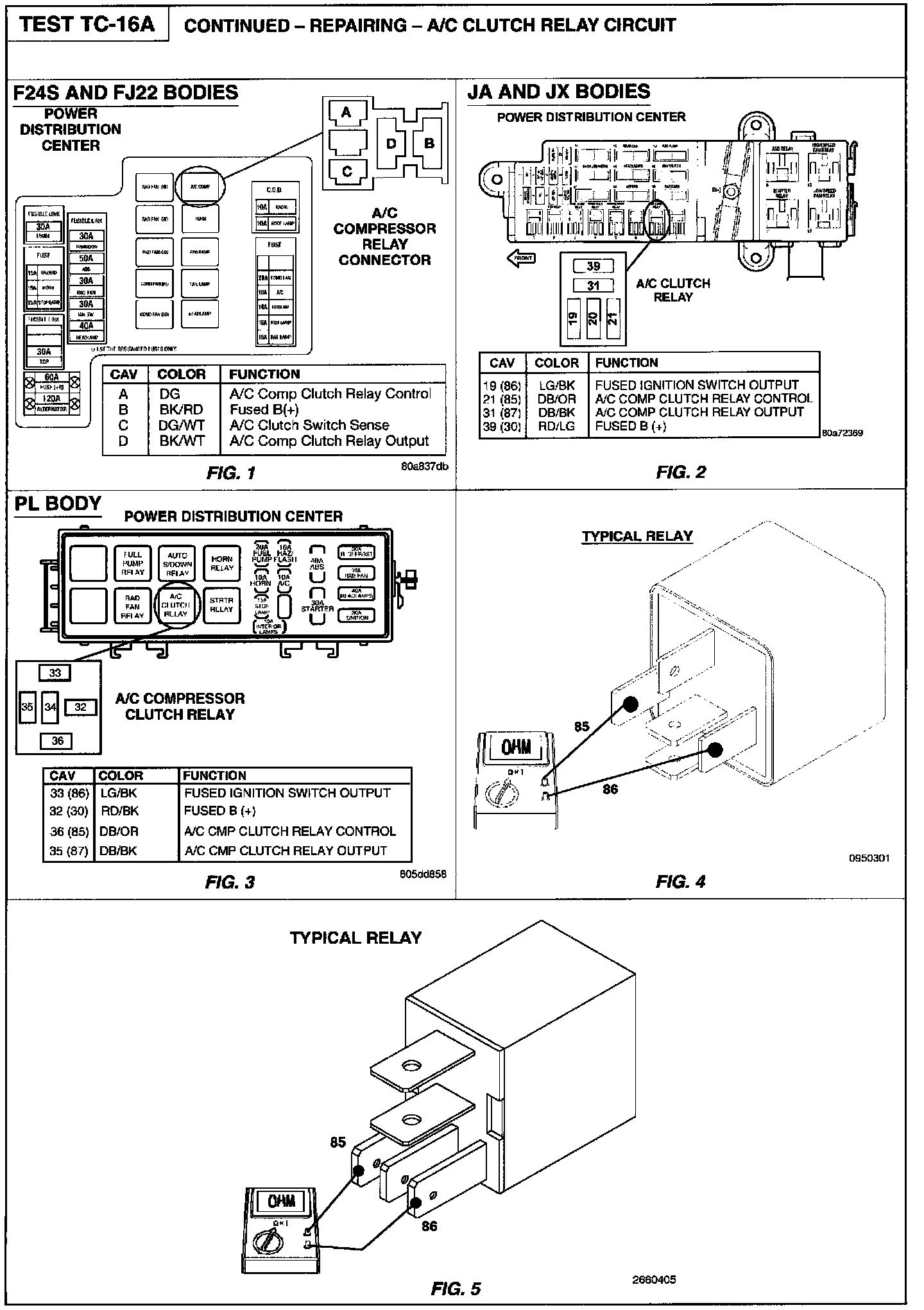

Related Image:

Diagnostic Chart:
