TC-15B Speed Control Relay, or 12V Driver & Solenoid Ckts
TC-15B Speed Control Relay, or 12V Driver & Solenoid Ckts

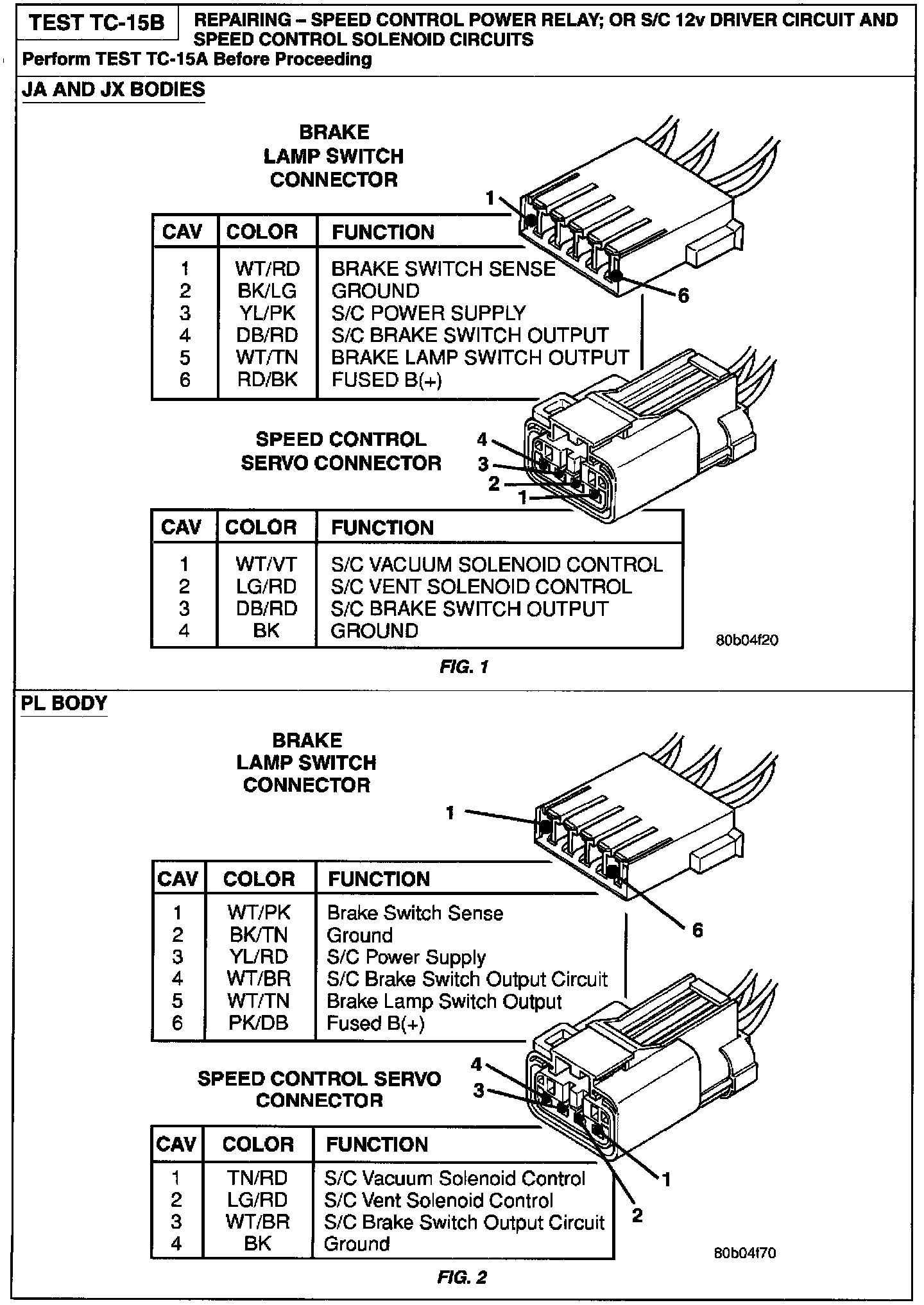

Related Image:

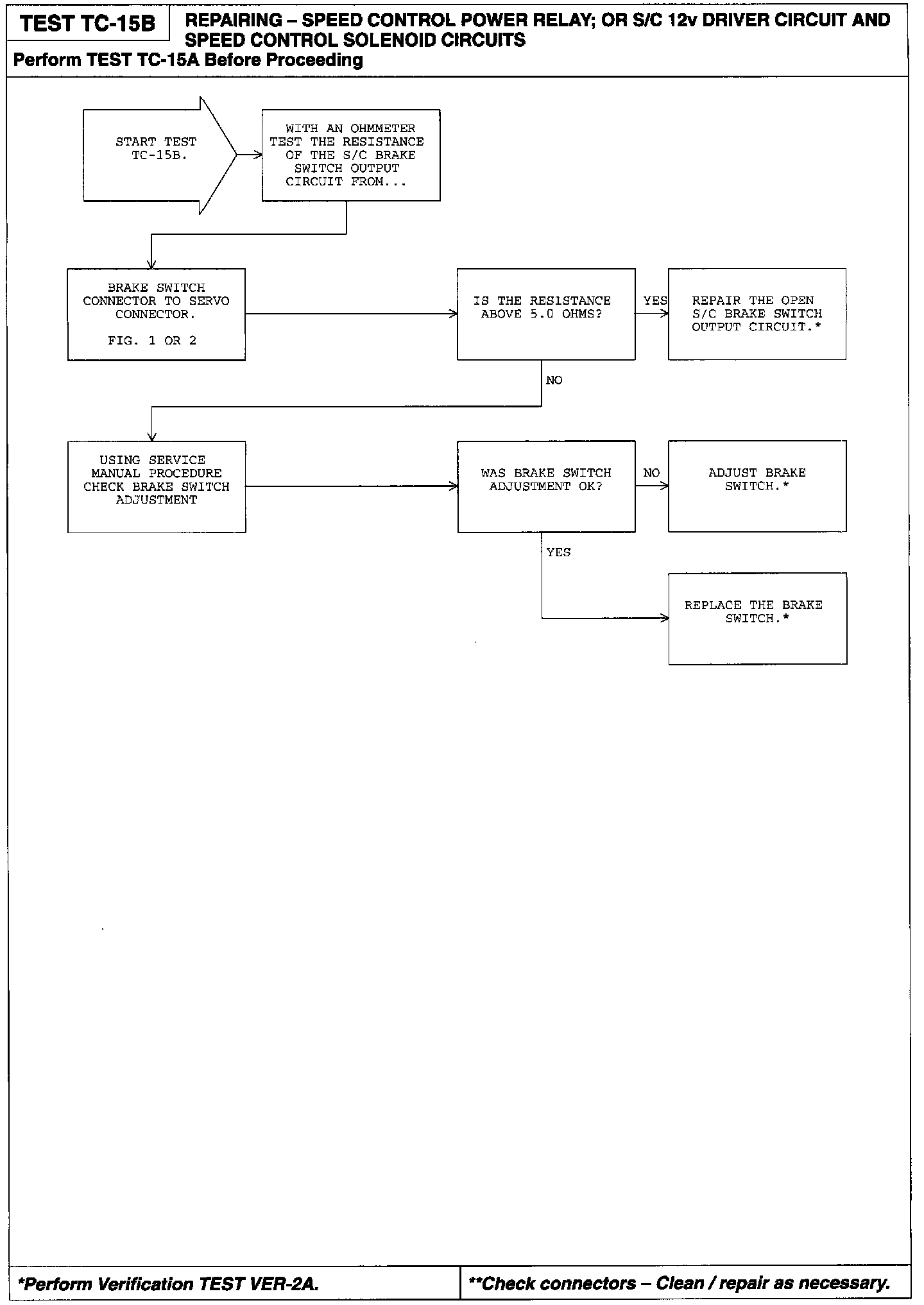

Diagnostic Chart:
