Home >> Chrysler >> 1998 >> Sebring Convertible V6-2.5L VIN H >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Trouble Code (TC) Tests >> TC-149A Fuel Level Sending Unit Volts Too Low

TC-149A Fuel Level Sending Unit Volts Too Low

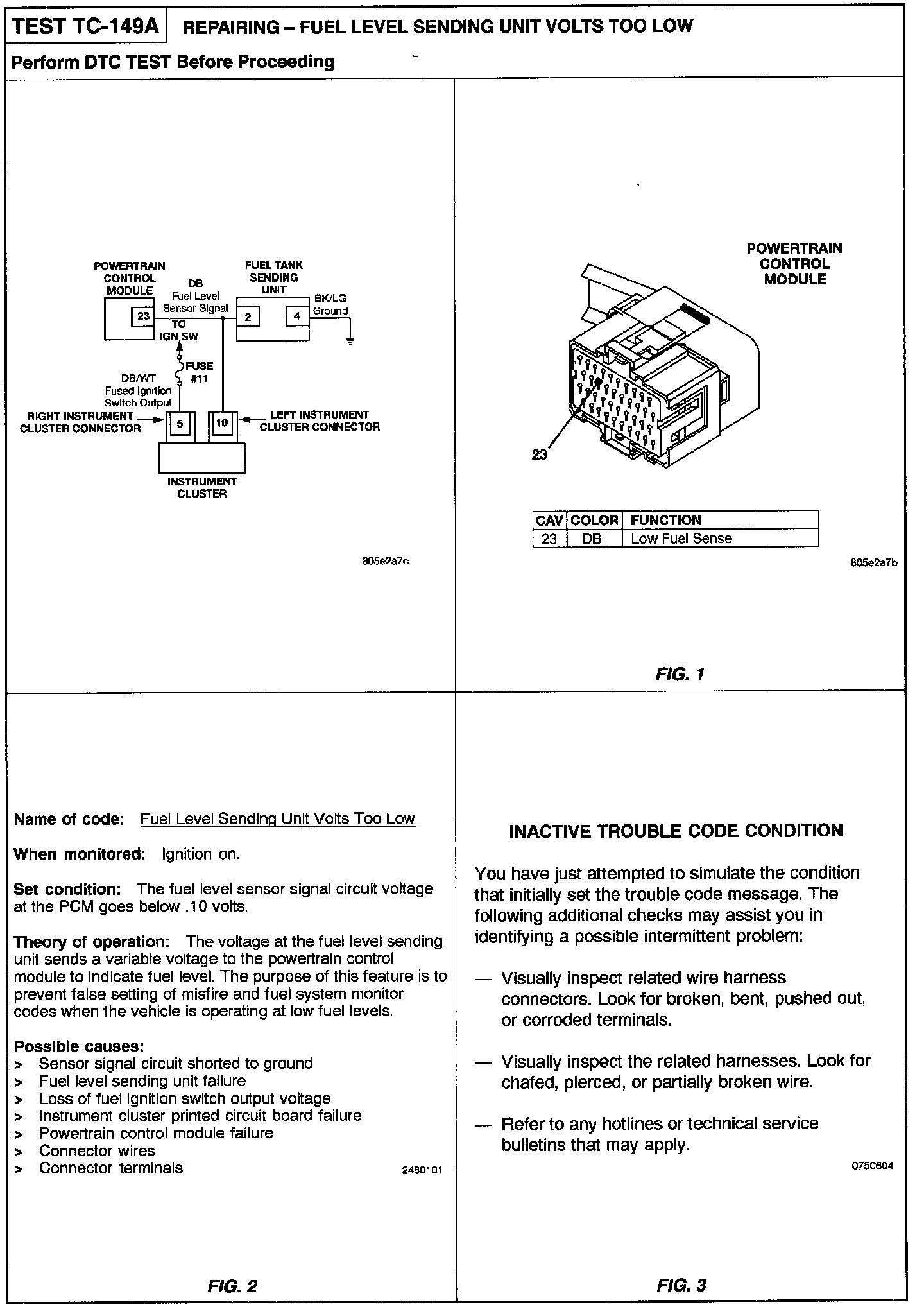

Related Image:

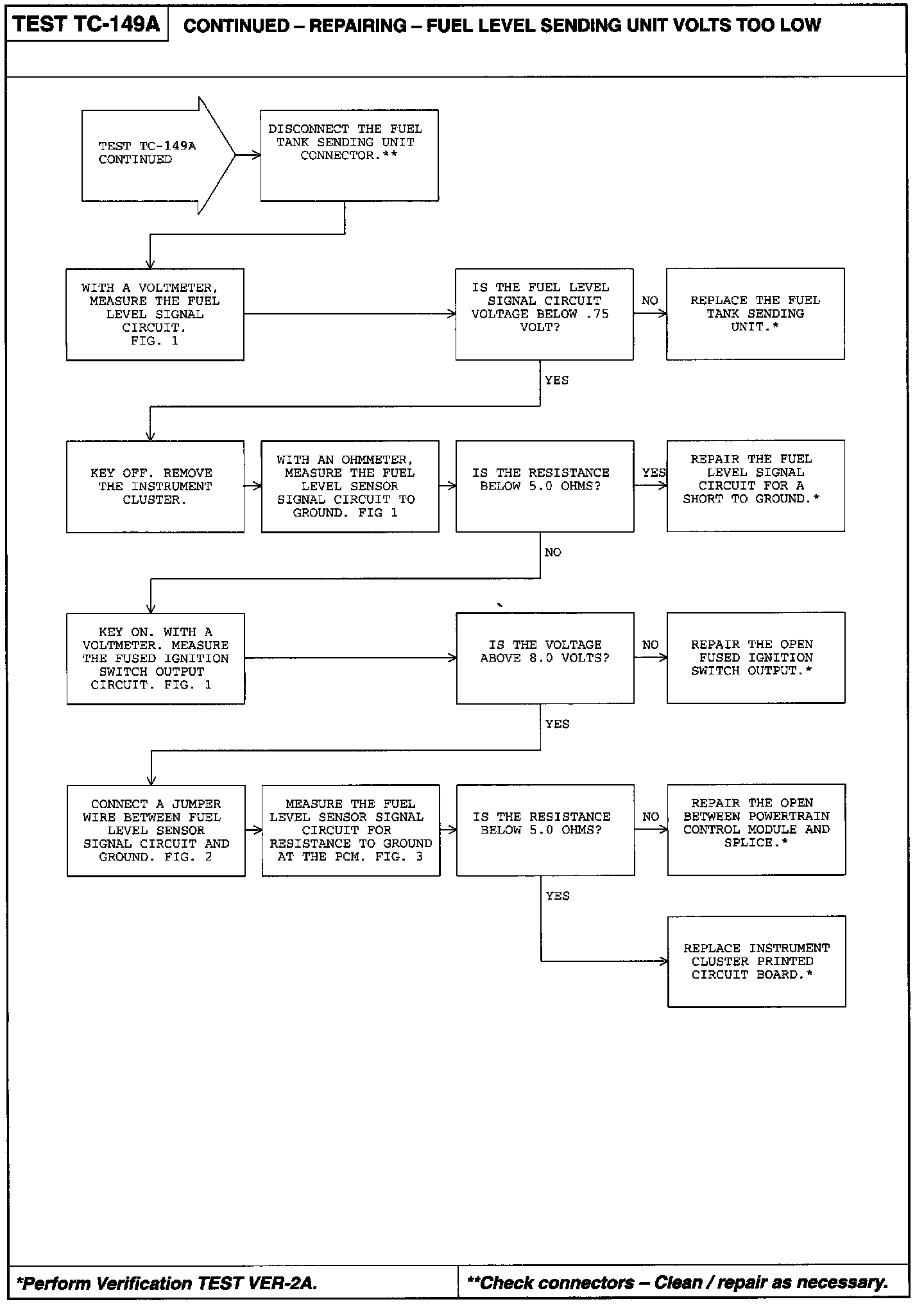

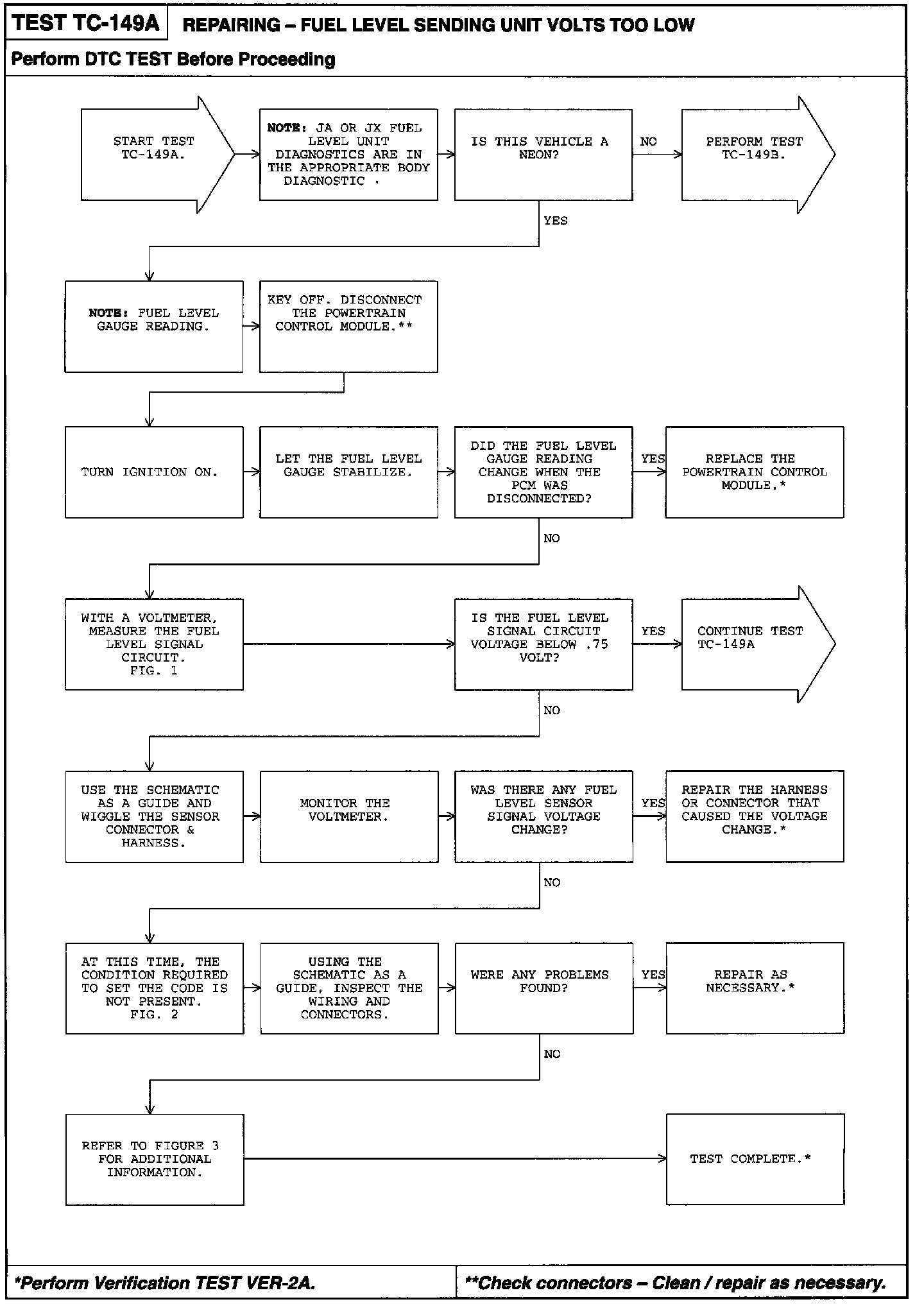

Diagnostic Chart:



Related Image:



Diagnostic Chart:
