TC-10A Auto Shutdown (ASD) Relay Control Circuit
TC-10A Auto Shutdown (ASD) Relay Control Circuit

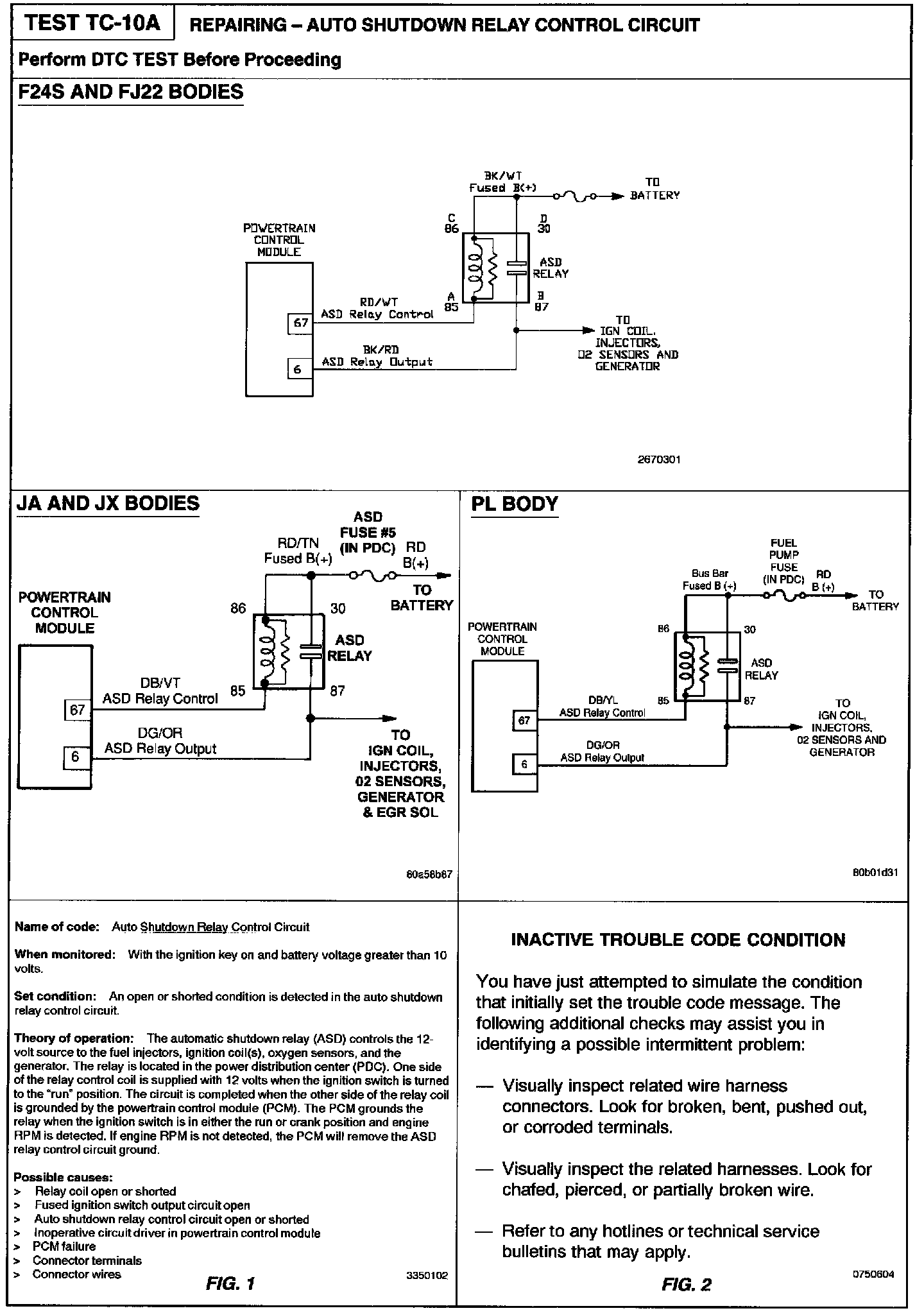

Related Image:

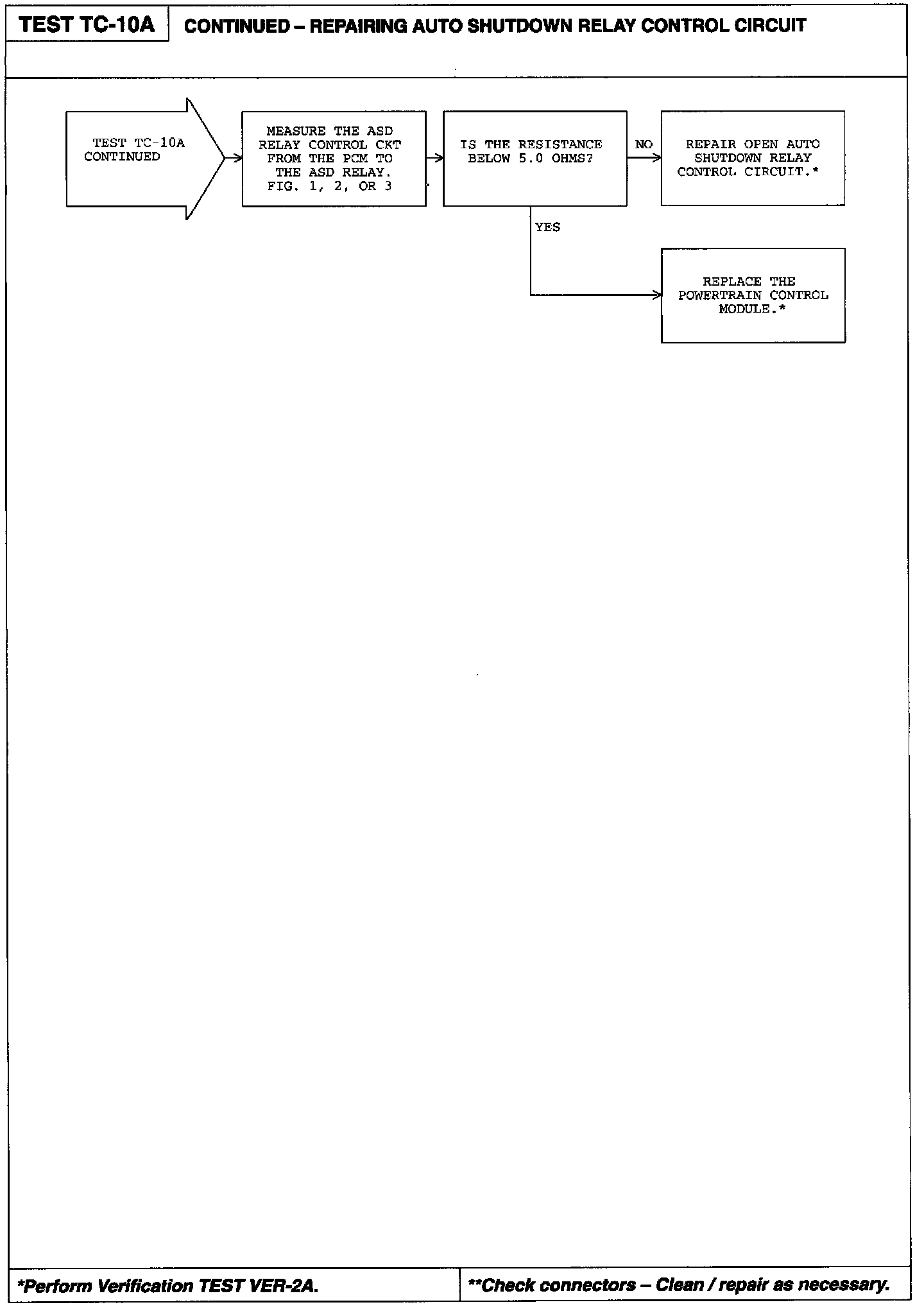

Diagnostic Chart:

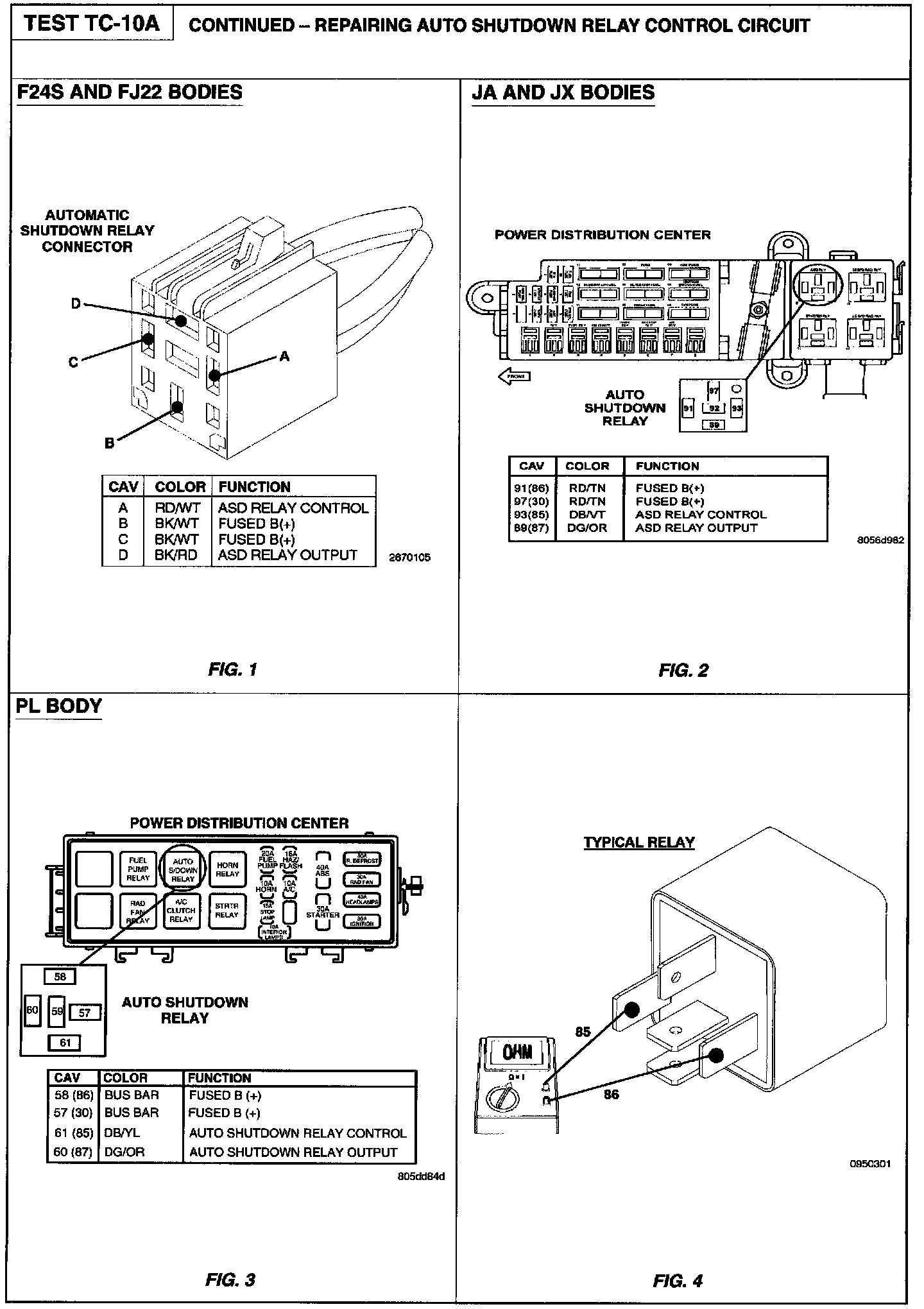

Related Image:

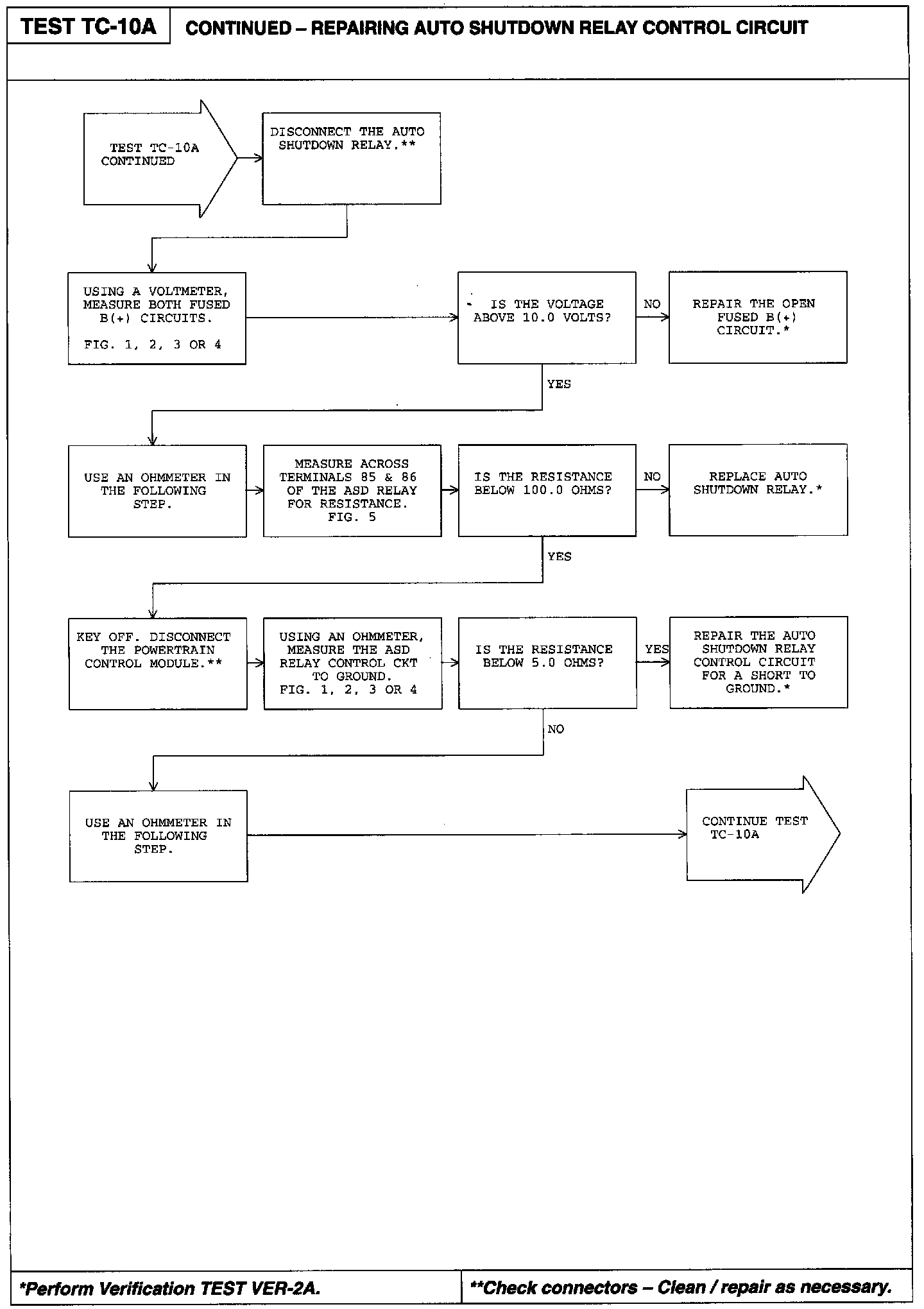

Diagnostic Chart:

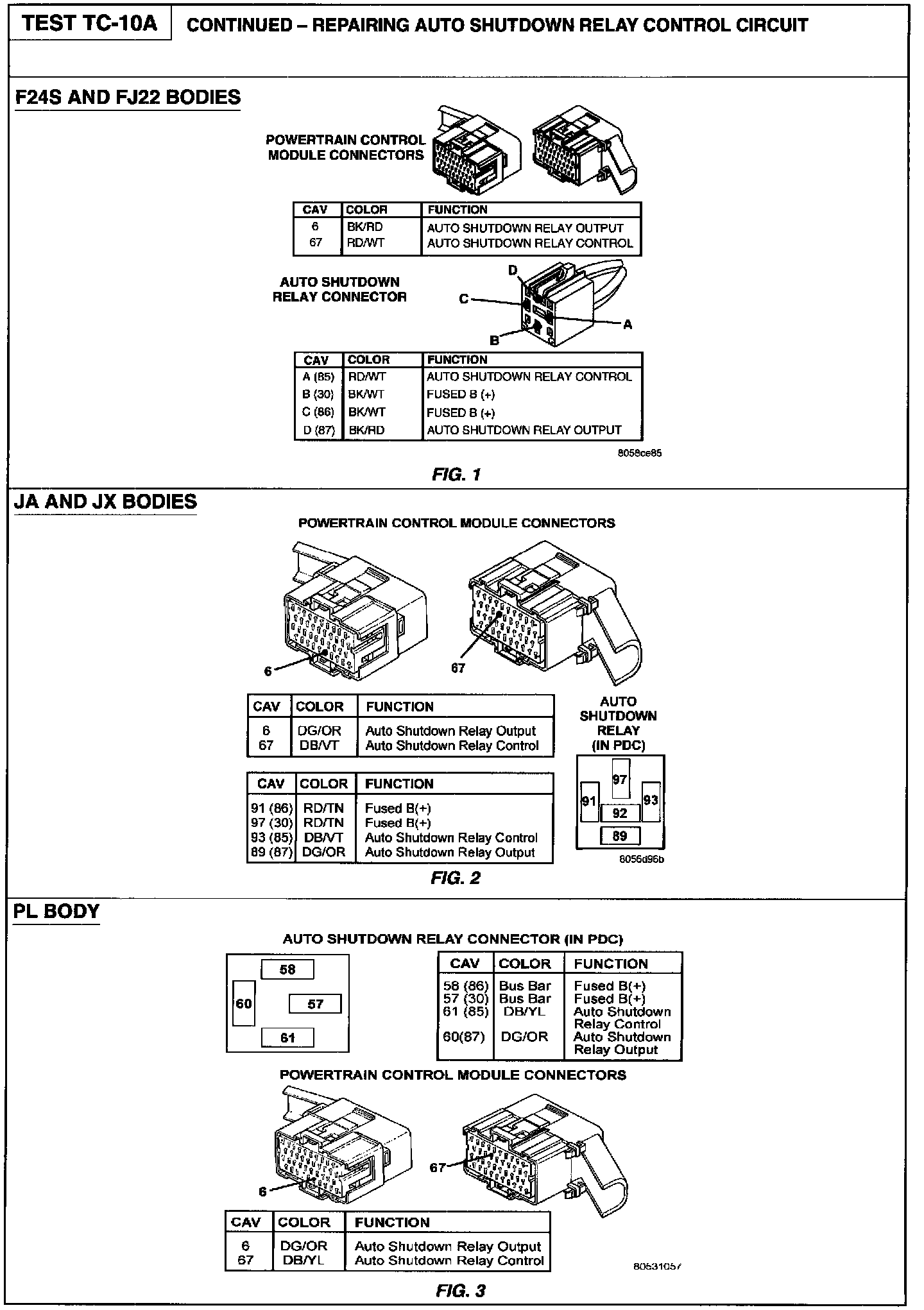

Related Image:
Diagnostic Chart:
