Sebring Convertible V6-2.5L VIN H
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Trouble Code (TC) Tests
>>

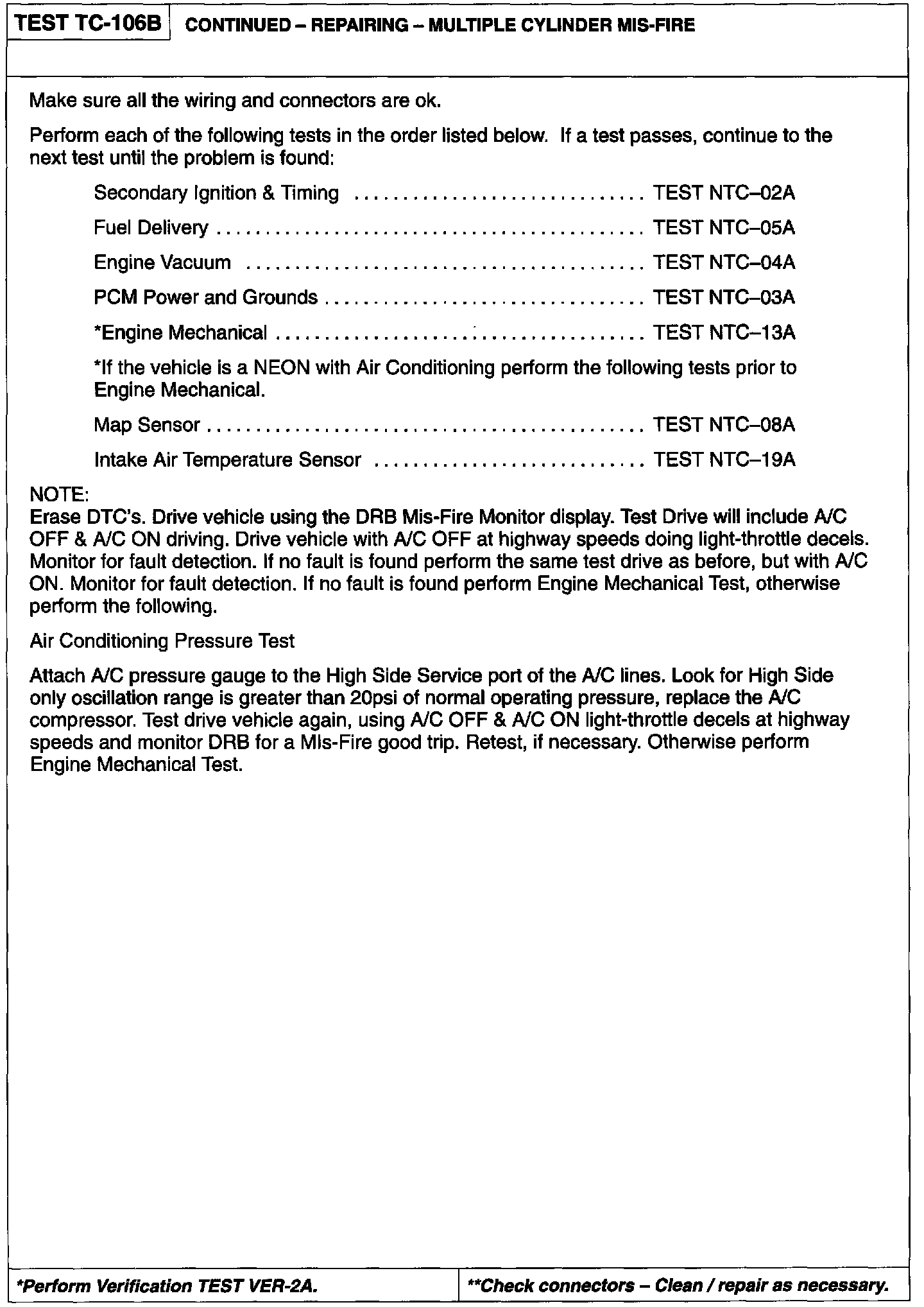

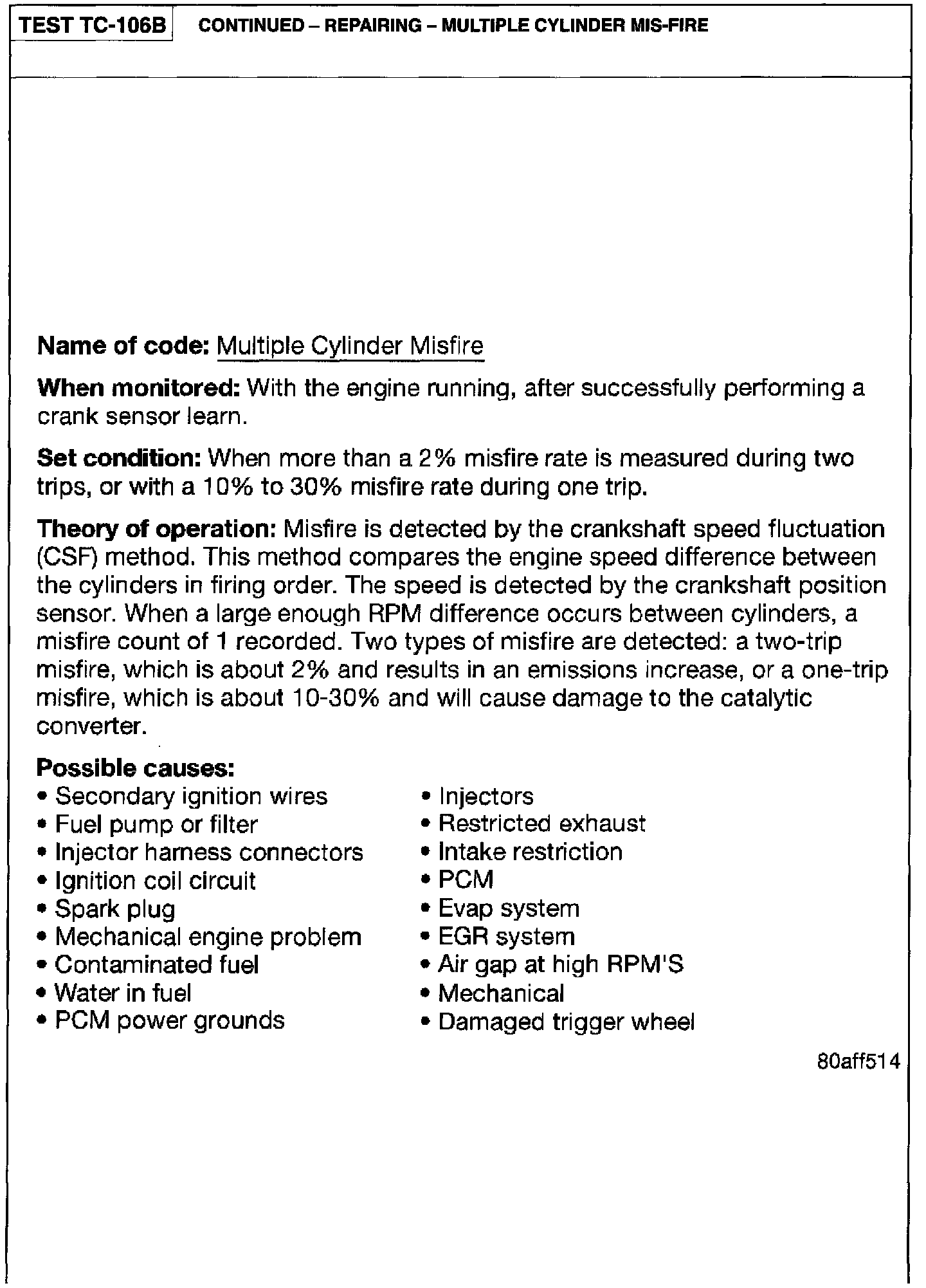

TC-106B Multiple Cylinder Misfire
TC-106B Multiple Cylinder Misfire
Related Image:
diagnostic Chart:
