FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chrysler
>>
1998
>>
Sebring Convertible V6-2.5L VIN H
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Trouble Code (TC) Tests
>>
TC-106A Multiple Cylinder Misfire
TC-106A Multiple Cylinder Misfire

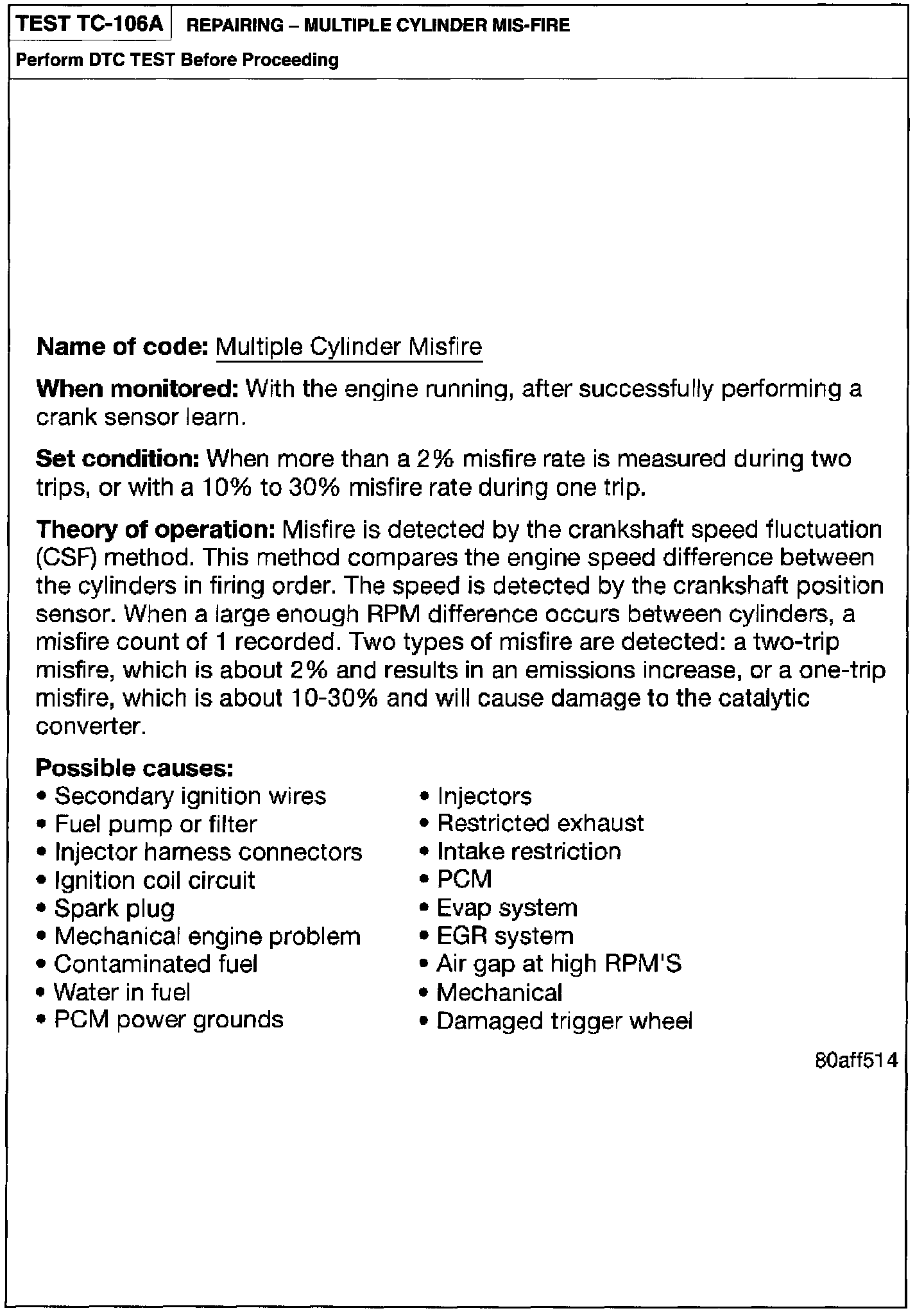

Related Image:

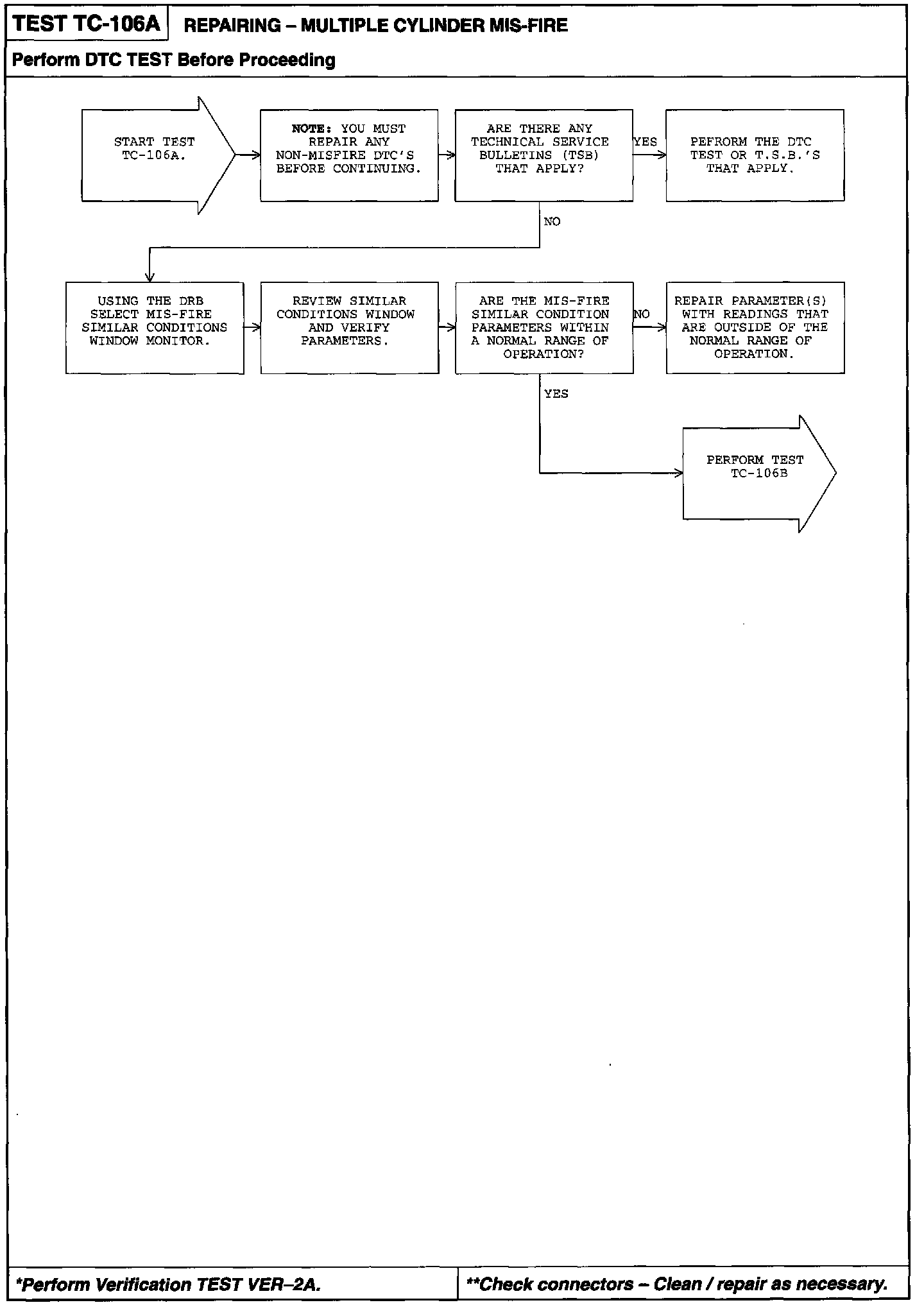

Diagnostic Chart:
