TC-101A Fuel Pump Relay Control Circuit
TC-101A Fuel Pump Relay Control Circuit

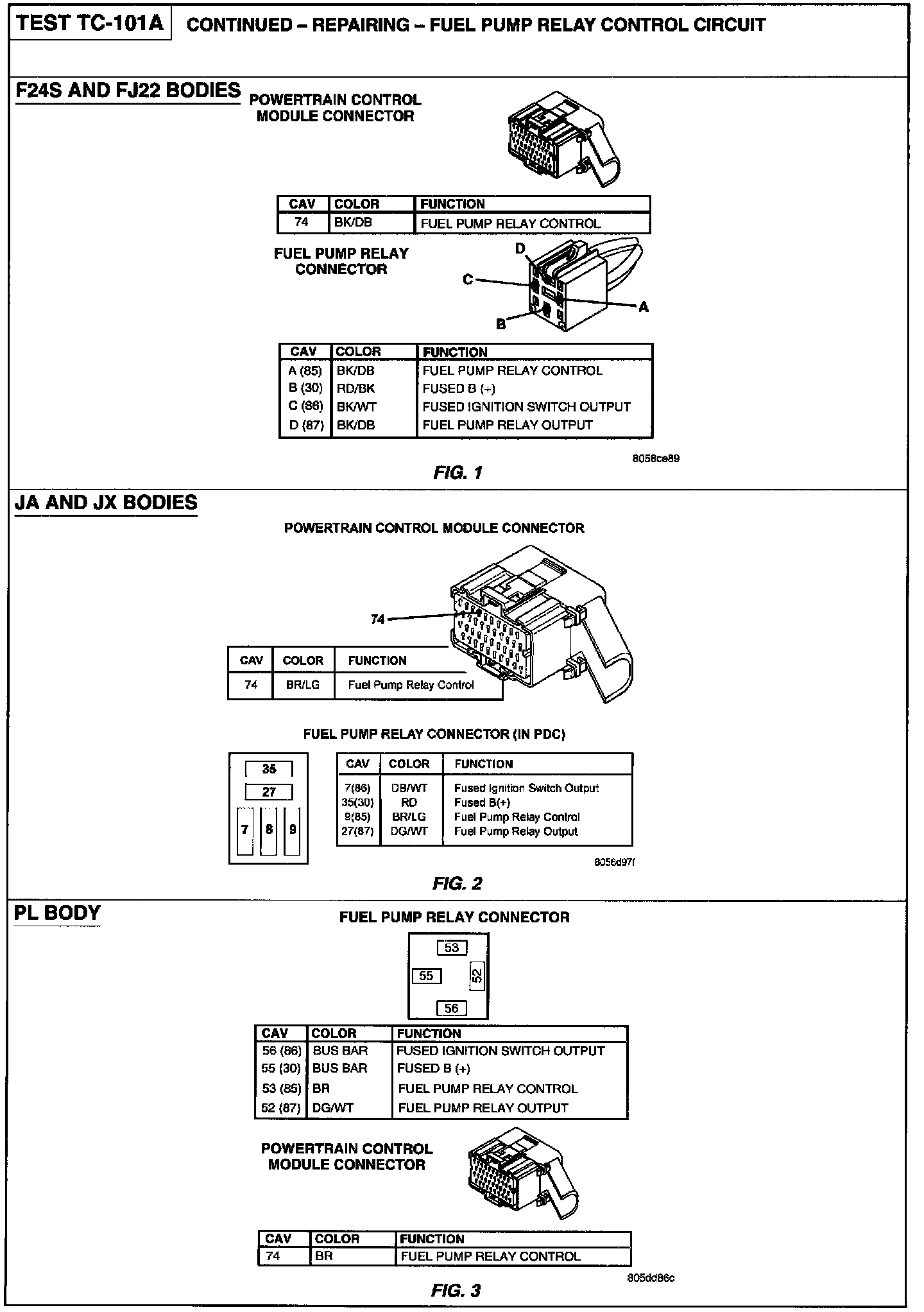

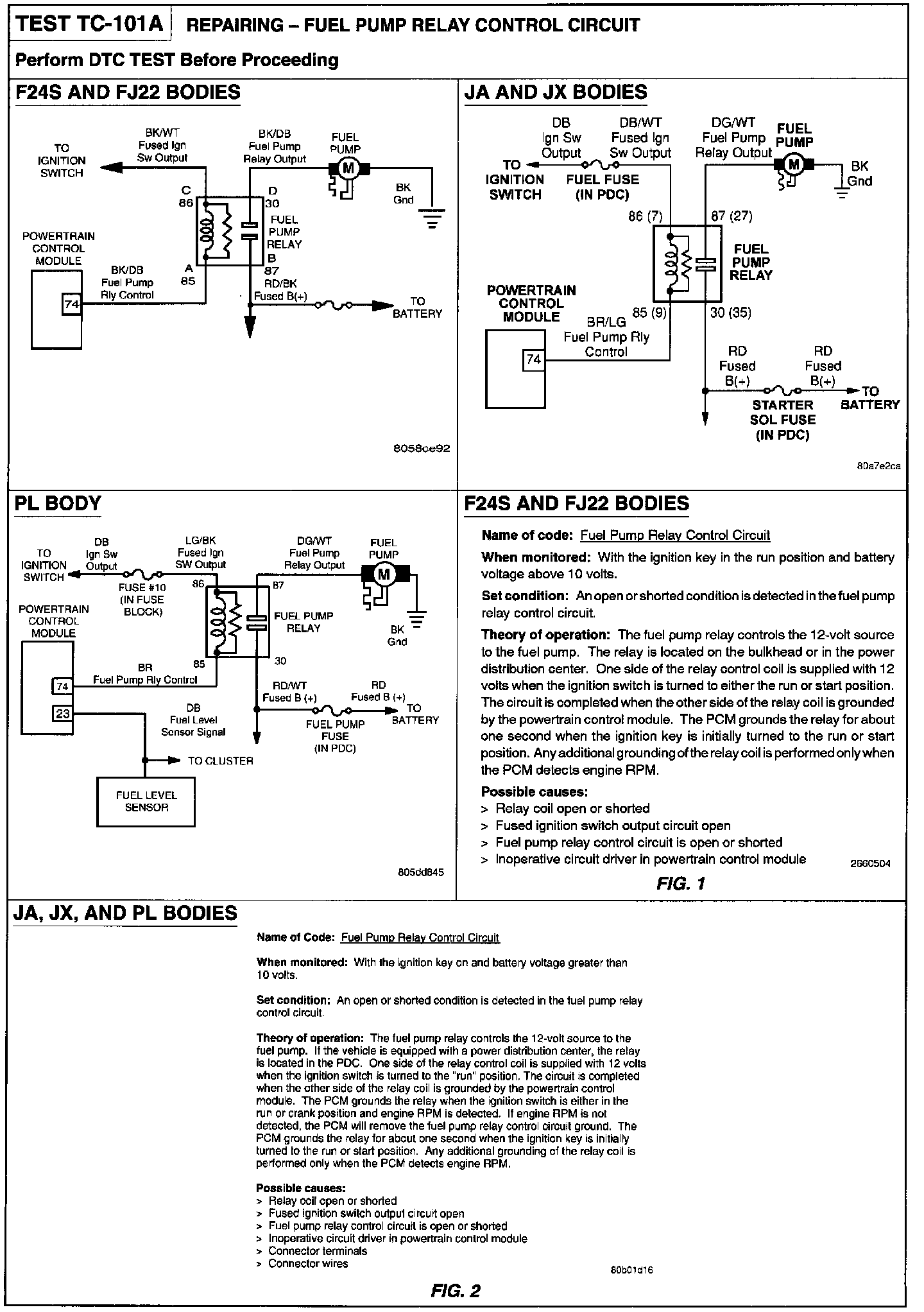

Related Image:

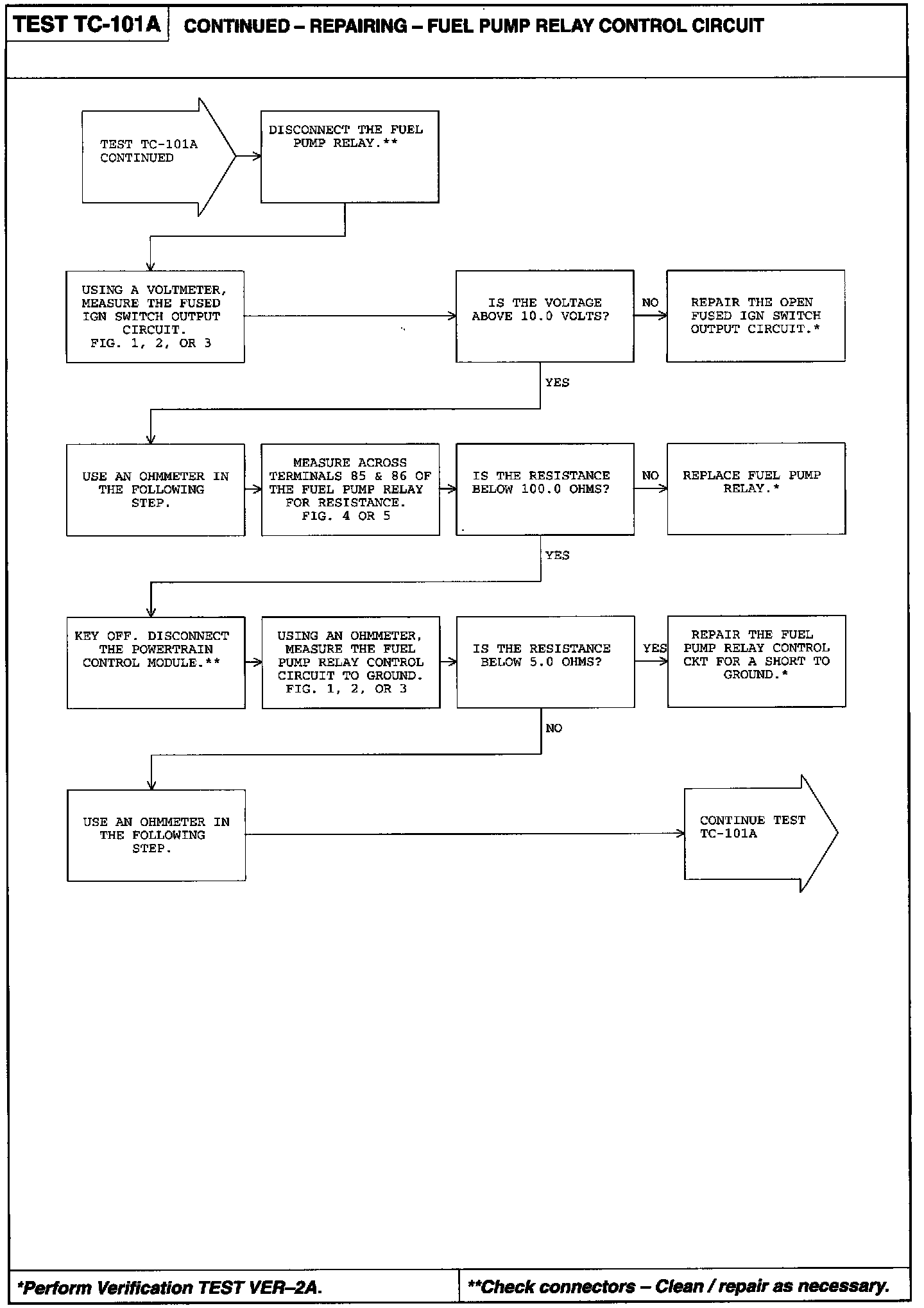

Diagnostic Chart:

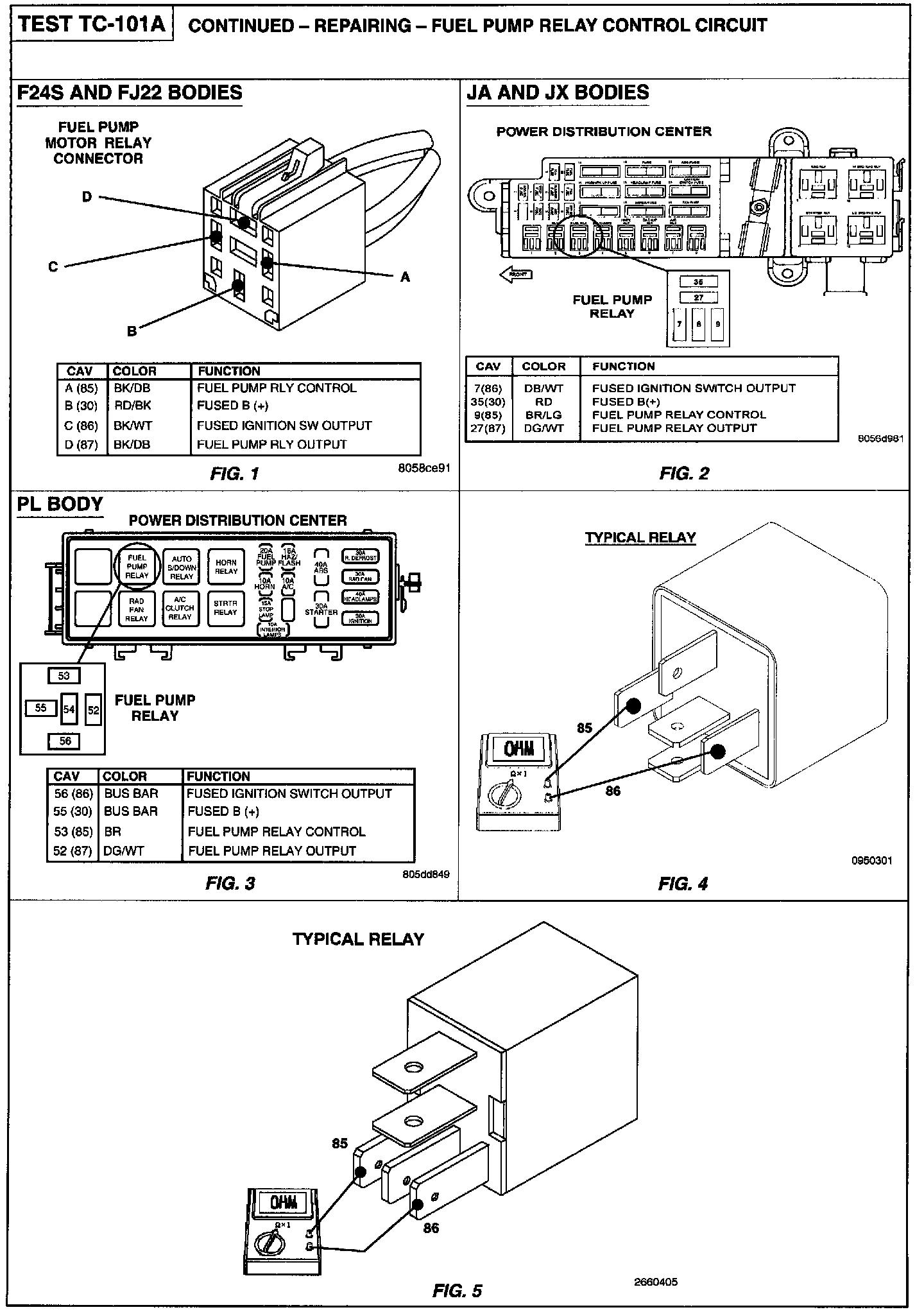

Related Image:

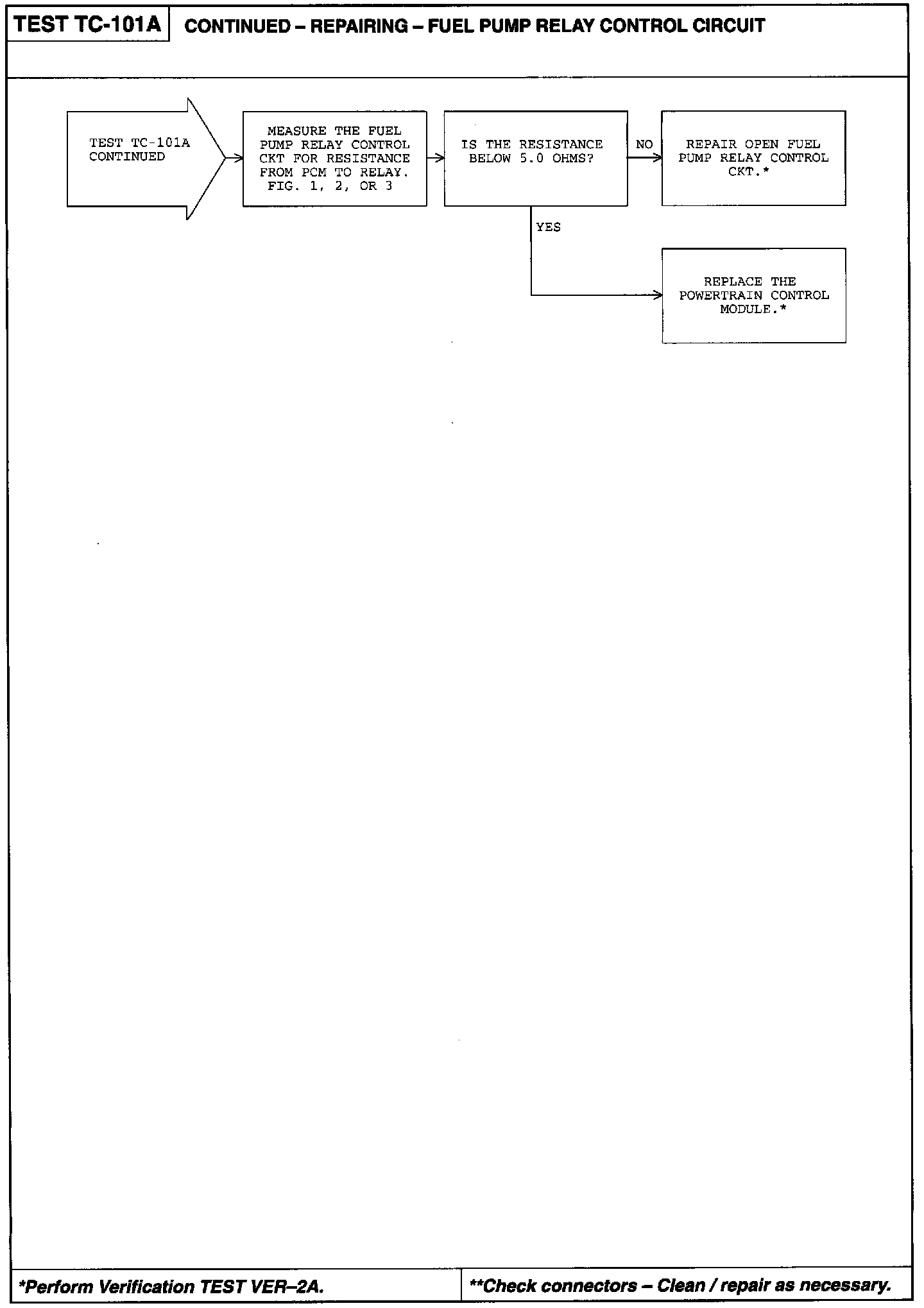

Diagnostic Chart:
Related Image:
Diagnostic Chart:
