Compressor/Pump Relay: Service and Repair

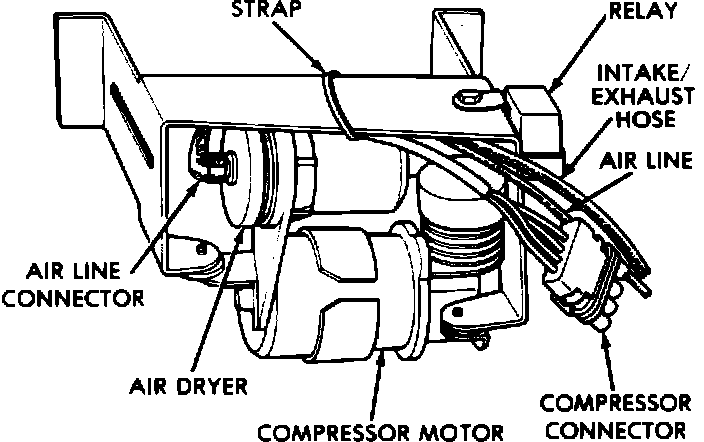

Compressor Assembly:

1. Raise vehicle.
2. Remove cover from compressor assembly.
3. Remove compressor assembly from frame rail. Service and Repair
4. Disconnect wiring harness from relay.
5. Remove relay mounting screw and relay from compressor bracket.
6. Reverse procedure for installation.
7. Check system for proper operation.
