Torque Specifications

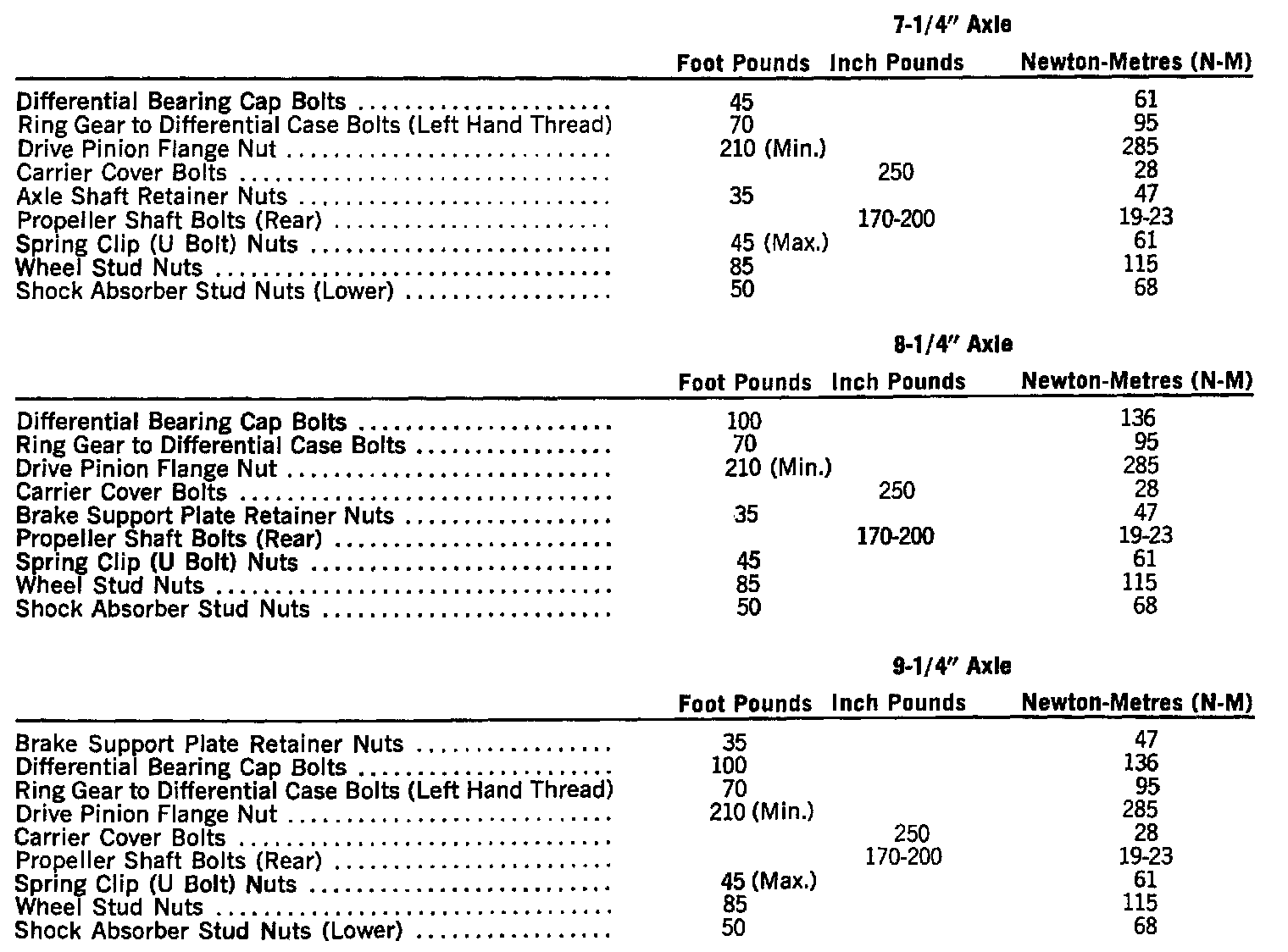

Torque specifications
REAR AXLE ASSEMBLY 7-1/4 IN, 8-1/4 IN, AND 9-1/4 IN,
RING GEAR
