Totally Integrated Power Module C2 26 Way

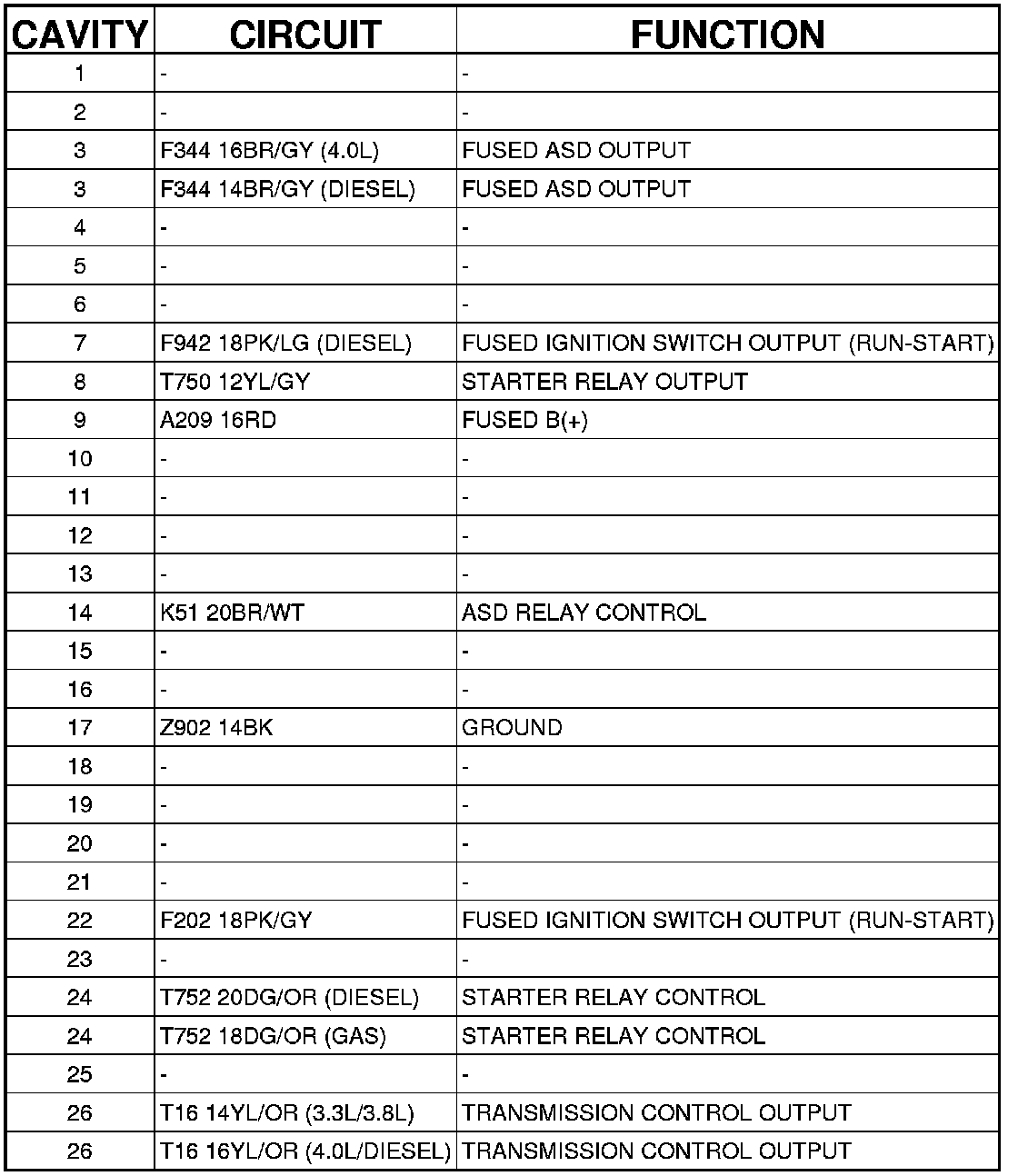

Connector C2 - (POWERTRAIN) 26 WAY




C2 TIPM - (POWERTRAIN) 26 WAY
