Powertrain Control Module C4 38 Way

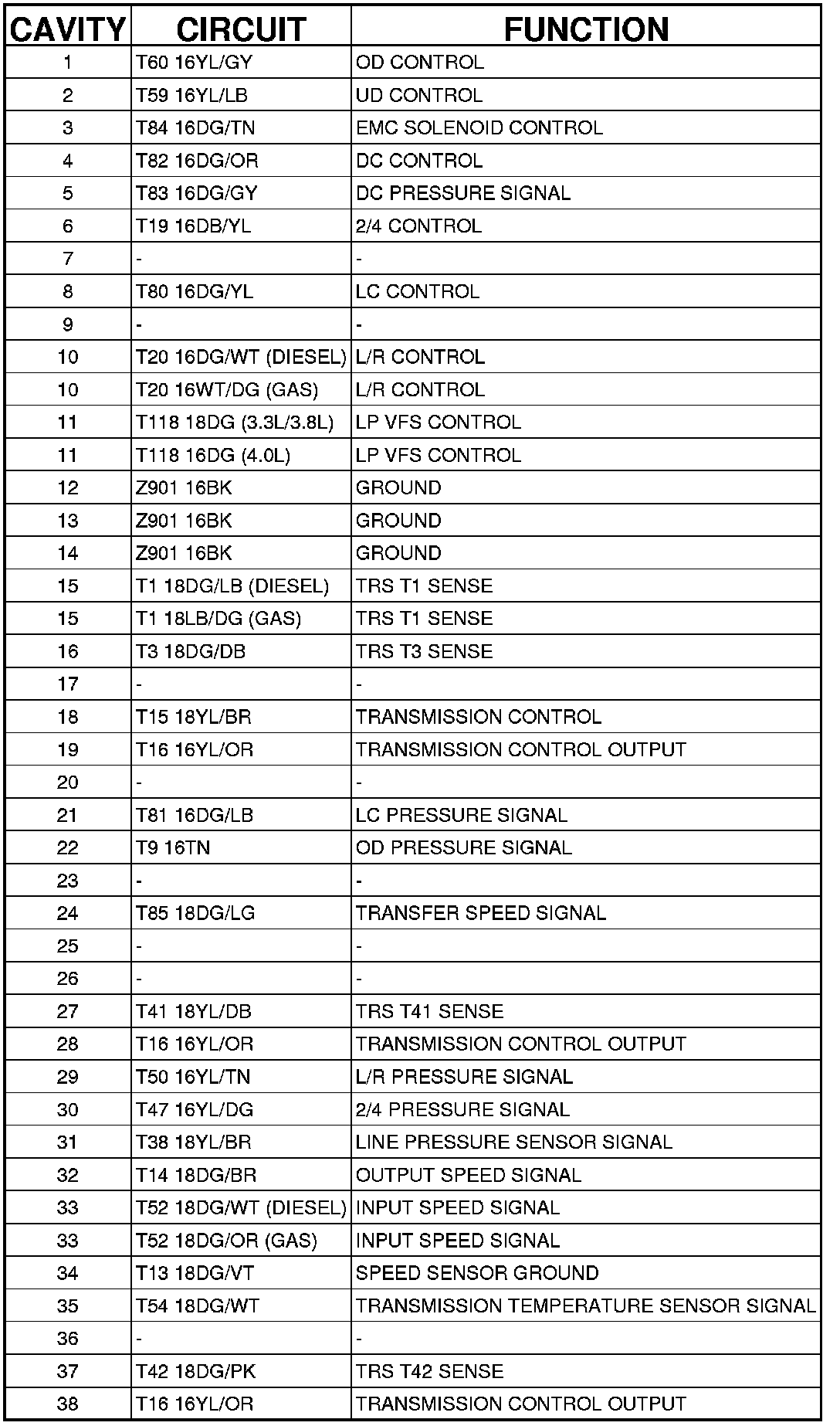

Connector C4 - (POWERTRAIN) 38 WAY




MODULE-POWERTRAIN CONTROL - (POWERTRAIN) 38 WAY
