Home >> Chrysler Truck >> 2008 >> PT Cruiser L4-2.4L Turbo >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Trunk / Liftgate

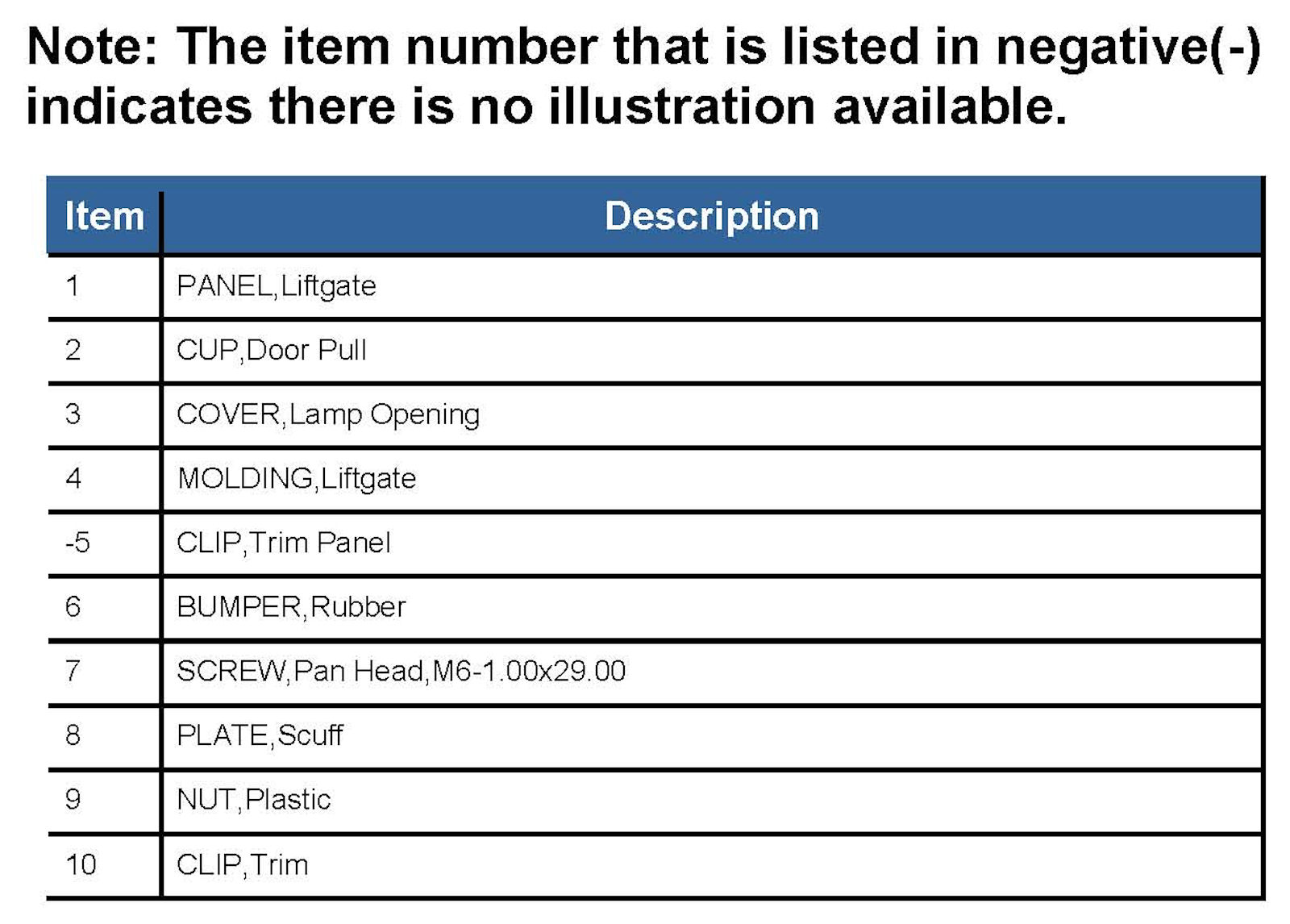

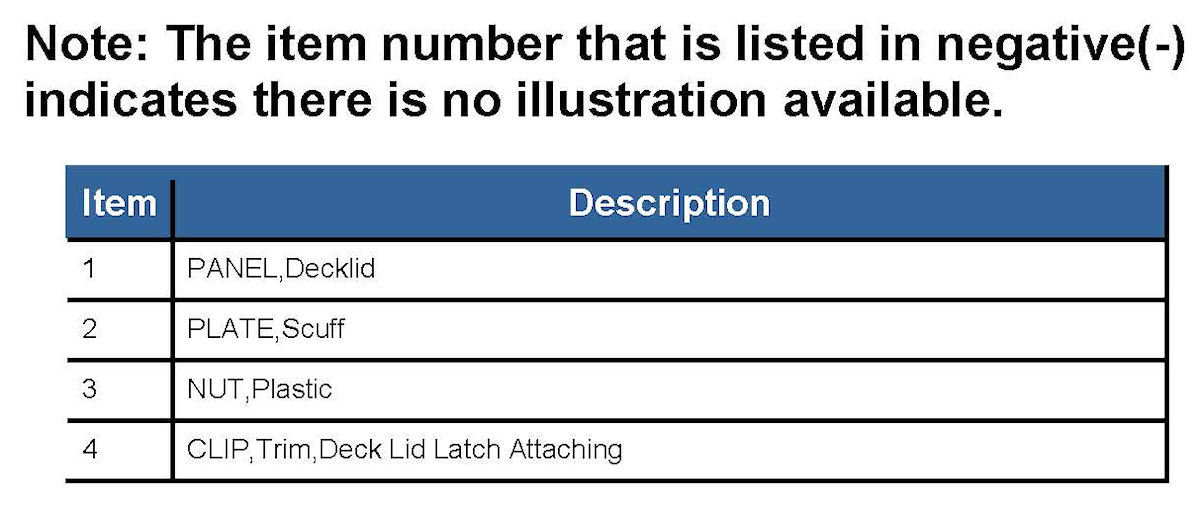

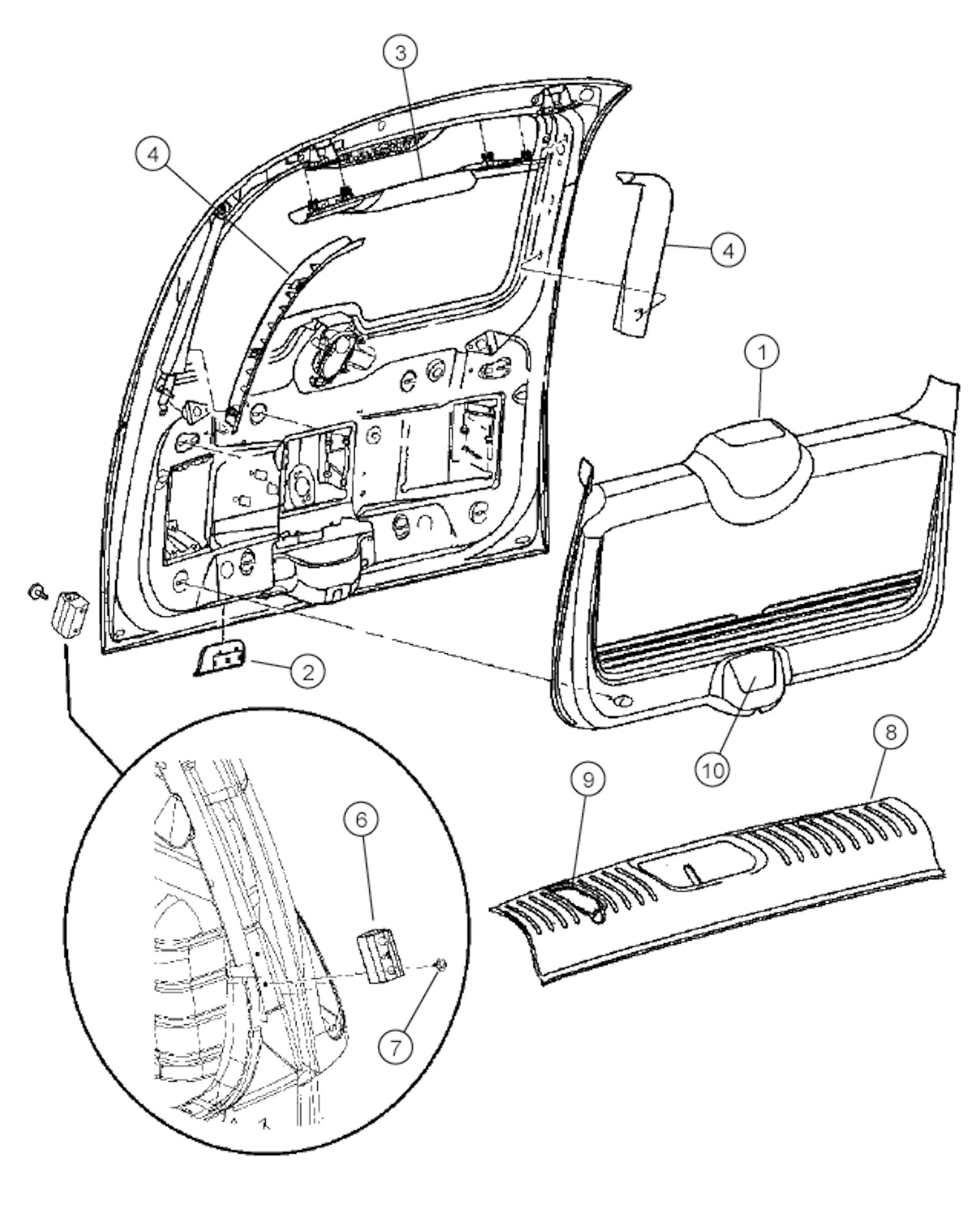

Trunk / Liftgate

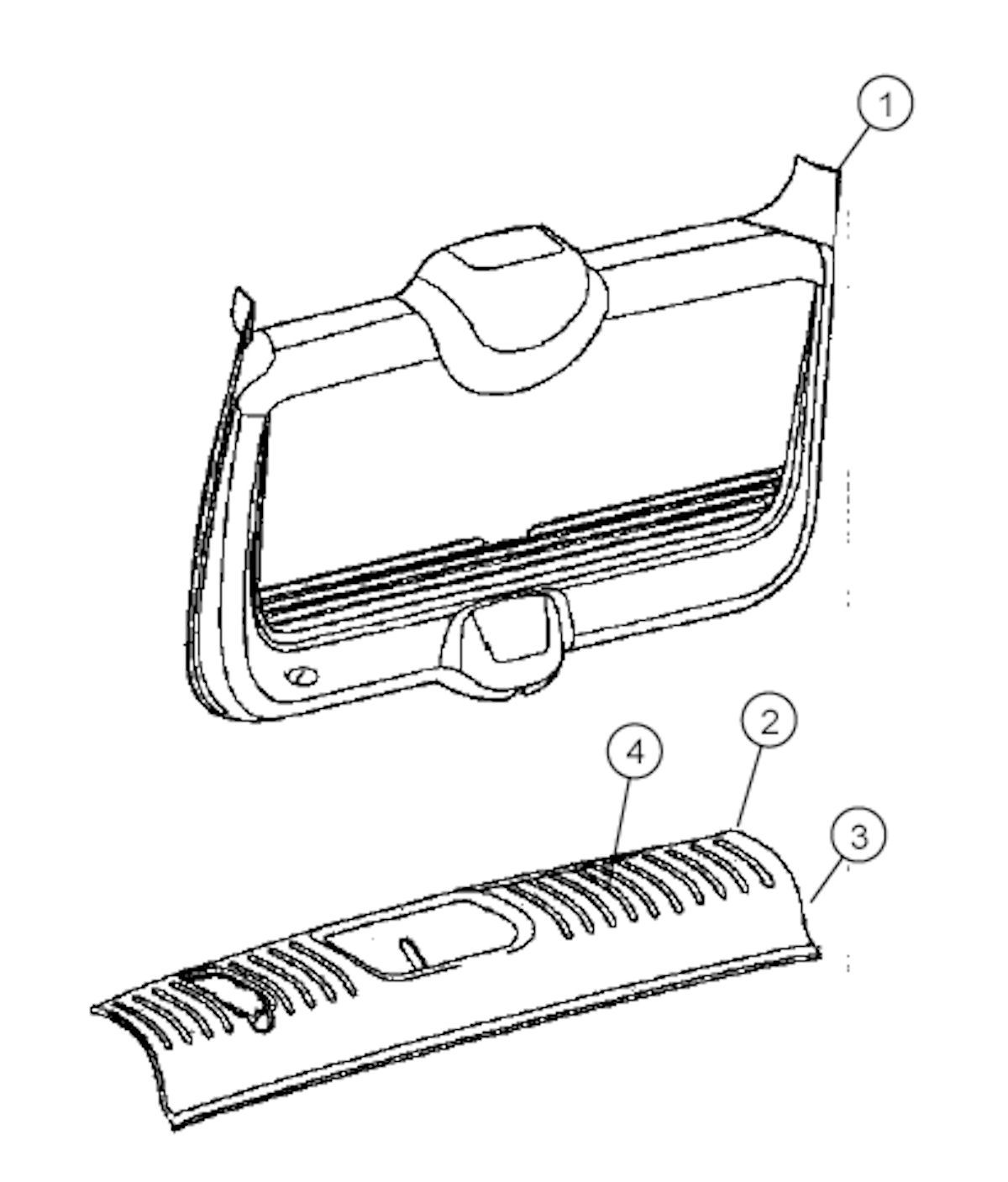

2 Door Convertable:





2 Door Convertable:
