Chrysler Truck
>>
2002
>>
Voyager V6-3.3L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
Power Mirror Control Module
Power Mirror Control Module

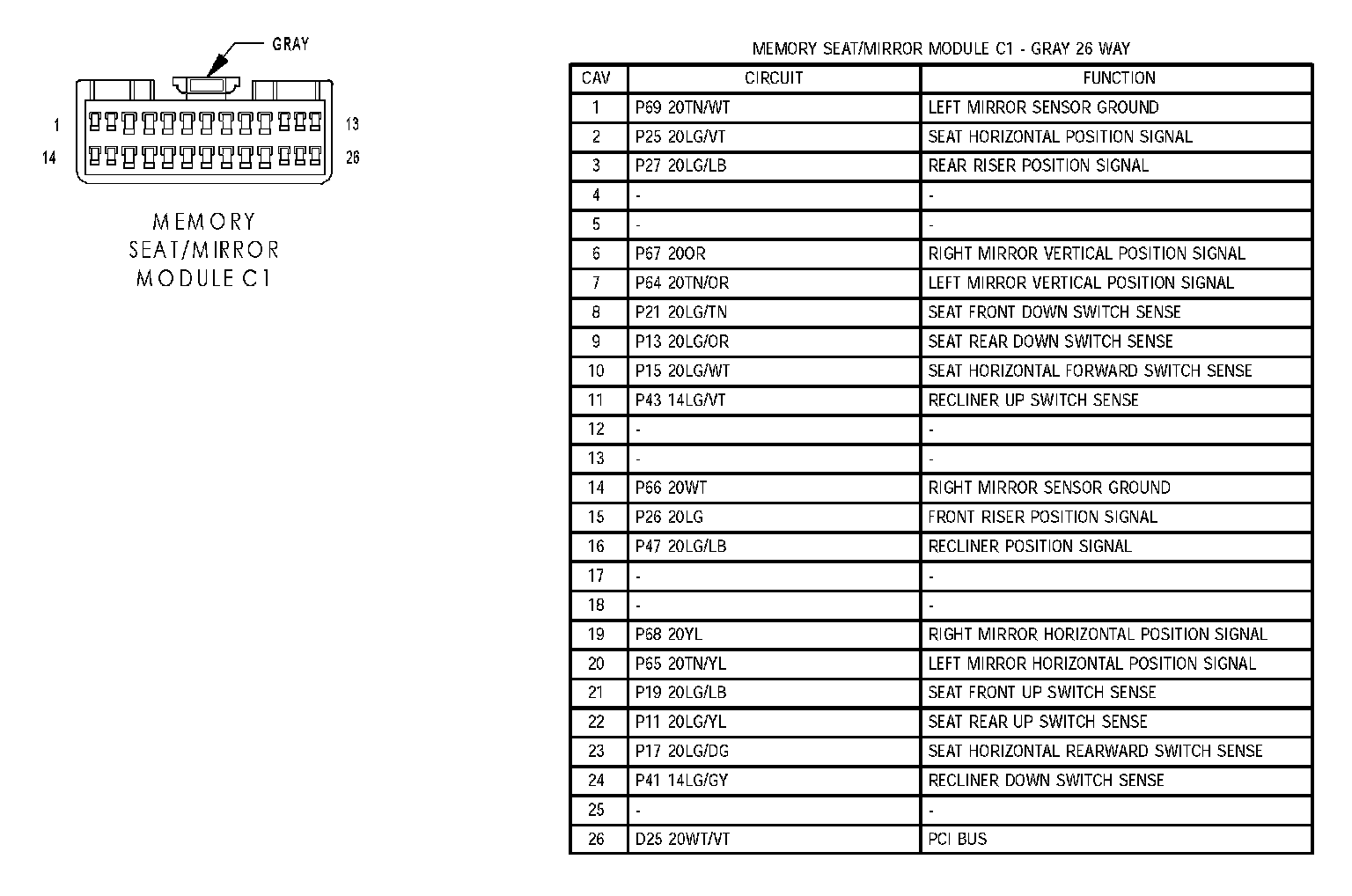

Memory Seat/Mirror Module C1:
Memory Seat/Mirror Module C2:
Memory Seat/Mirror Module C3:
Memory Seat/Mirror Module C4:
