Home >> Chrysler Truck >> 2001 >> Voyager V6-3.3L VIN R >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Connector Views >> Intelligent Power Module (Front View)

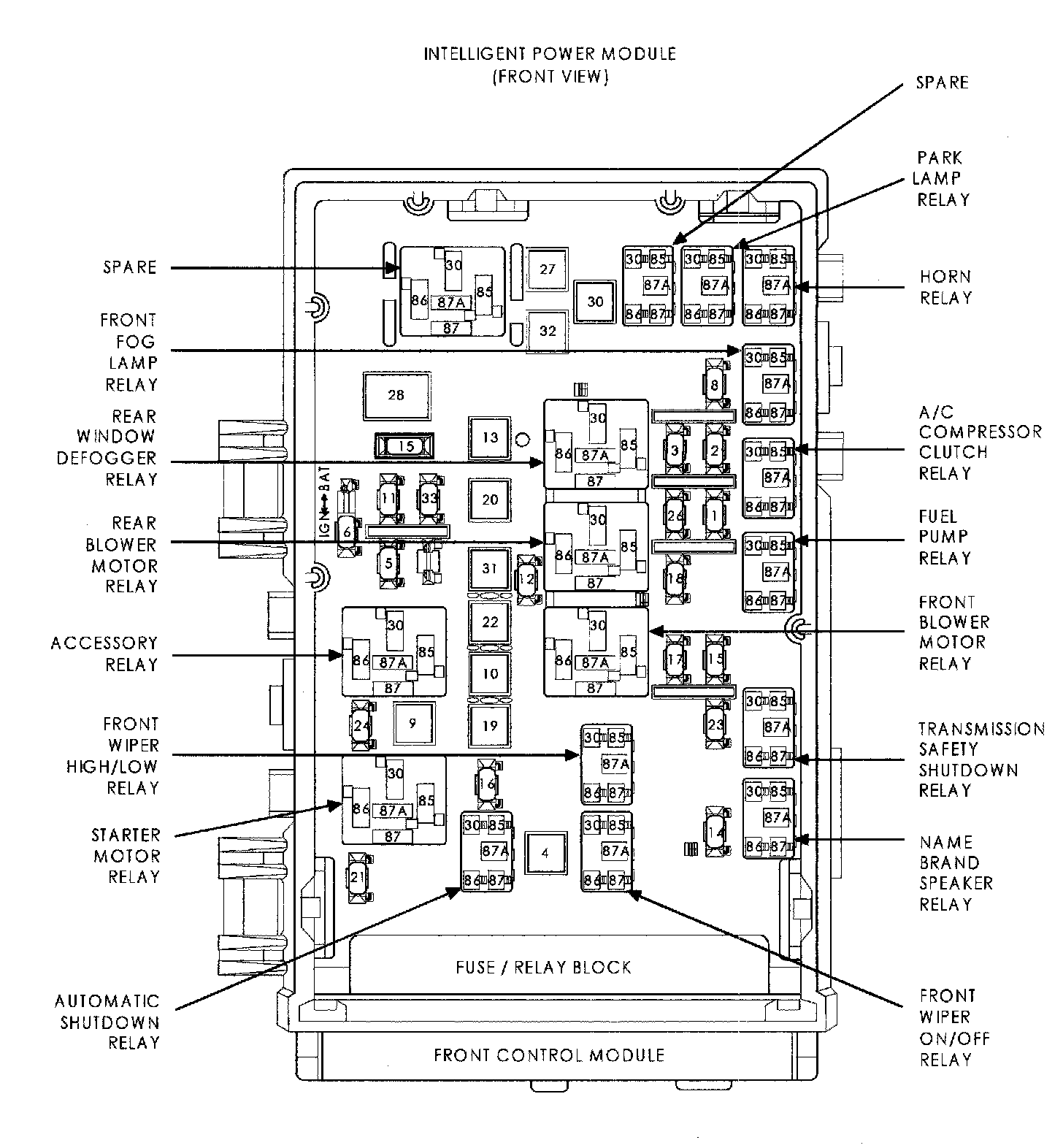

Intelligent Power Module (Front View)
