Automatic Transmission Auxiliary Fluid Pump Control Module




Component Connector End Views

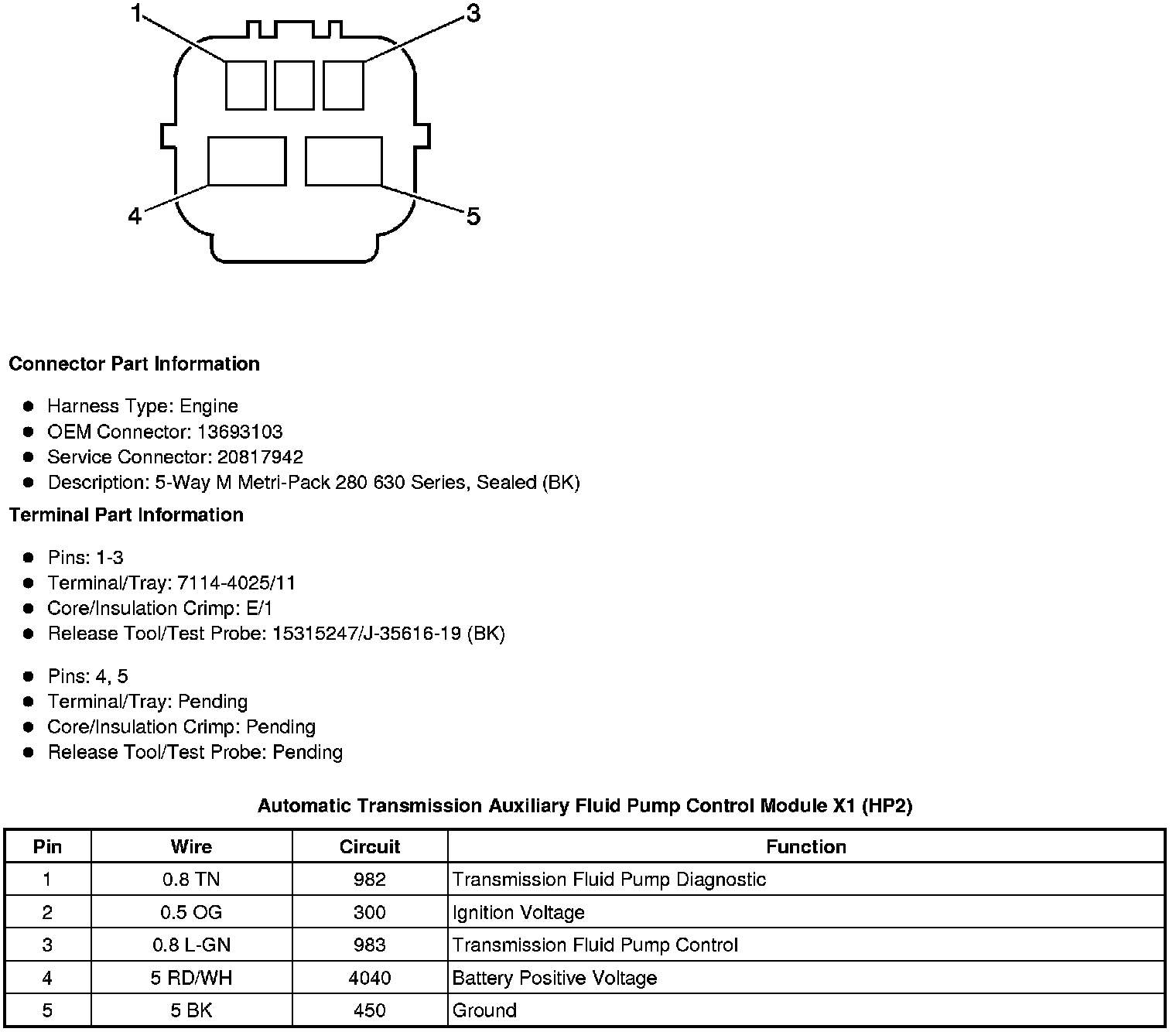

Automatic Transmission Auxiliary Fluid Pump Control Module X1 (HP2)

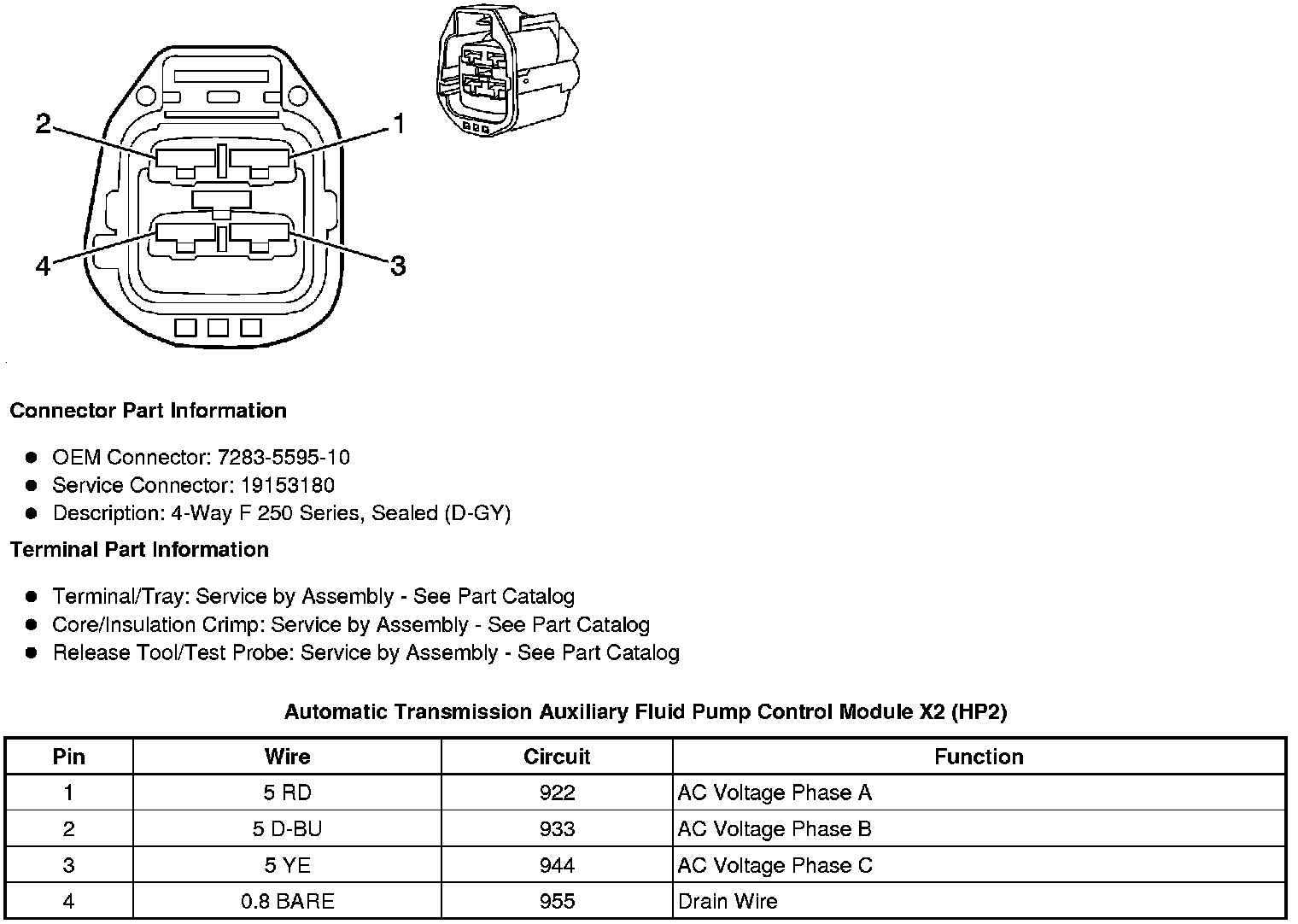

Automatic Transmission Auxiliary Fluid Pump Control Module X2 (HP2)
